8.8-PV08803S0340D

Kingtech PV08803S0340D is a bar type 8.8 inch LCD module. The 8inch TFT LCD screen resolution is 1280*320dots. In backlight, it adopts 4*9LED WLED, and the brightness is 400nits. LED life time is 30K hours. Its viewing angle is All, you can see clearly no matter from which direction. It adopts LVDS interface.


  • Bar type, strip shaped

  • 1280x320dots, LVDS

  • Full/free/wide/all viewing angle

  • Life-time 30000h

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

Specification of 8.8-PV08803S0340D

Item8.8 inch bar type IPS 1280*320 LCD module
Model No.PV08803S0340D
Resolution1280*320
Outline Dimension (mm)229.66*67.50*3.50
Active Area (mm)216.96*54.24
Viewing AngleAll
Brightness400nits
InterfaceLVDS
Backlight4*9LED
Driving ICEK79202
PIN No.40
Operating Temperature-20~70C
Storage Temperature-30~80C

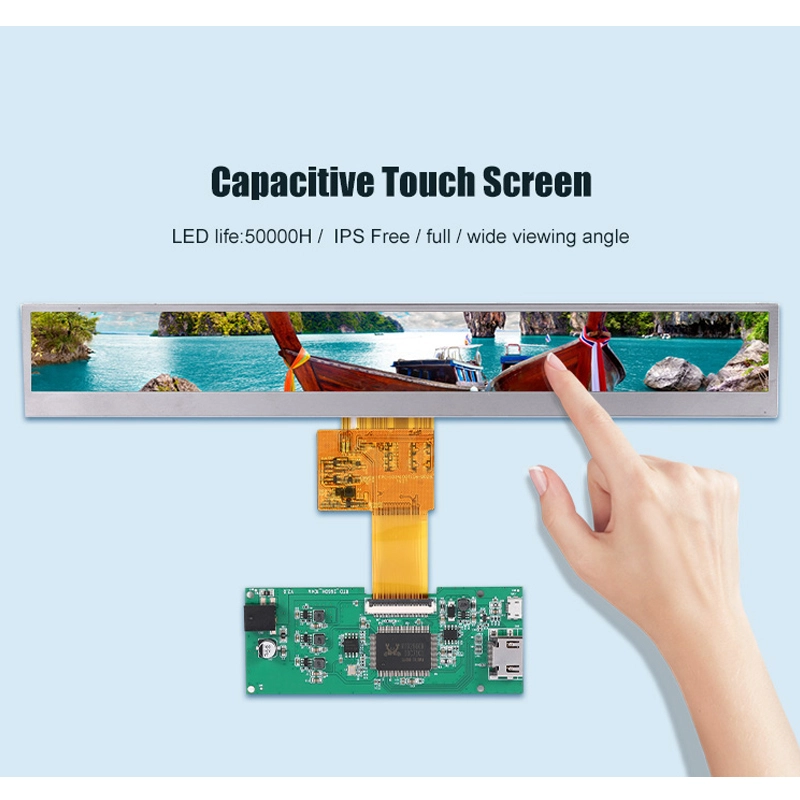

Touch screenCapacitivetouch optional
ApplicationMedical, hand-held device, industrial, advertising, E-bike, meter, vehicle, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, charging piles/engineering vehicles/ships, automotive and 3D printer.


Application of 8.8-PV08803S0340D

  • The 8.8inch bar type 1280x320 LCD module designed for used for Medical, hand-held device, industrial, advertising, E-bike, meter, vehicle, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, charging piles/engineering vehicles/ships, automotive and 3D printer.
