Kingtech 10.1 inch 1024*600 TFT LCD display supply very stable. This 10.1 inch supports LVDS interface. In addition, the 10.1 inch TFT module brightness is 200nits, and this 10.1 inch screen is TN Viewing Angle / 12 O’ CLOCK Viewing Angle type. For the touch part, Kingtech can custom the touch according to customer’s requirements.
All/Free/Wide viewing angle/Normally Black/IPS
1024x600
Stable supply

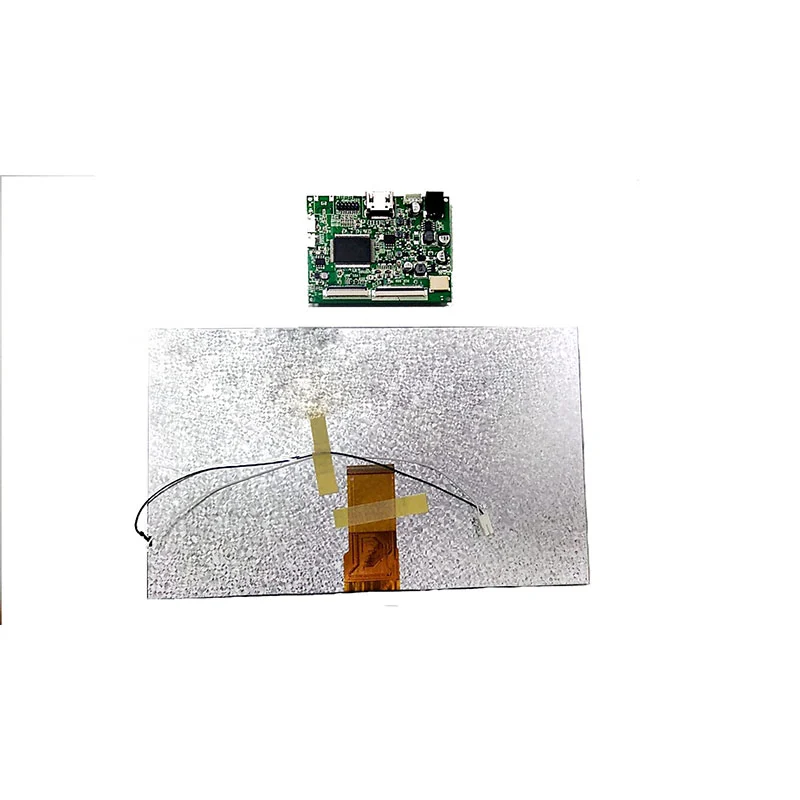

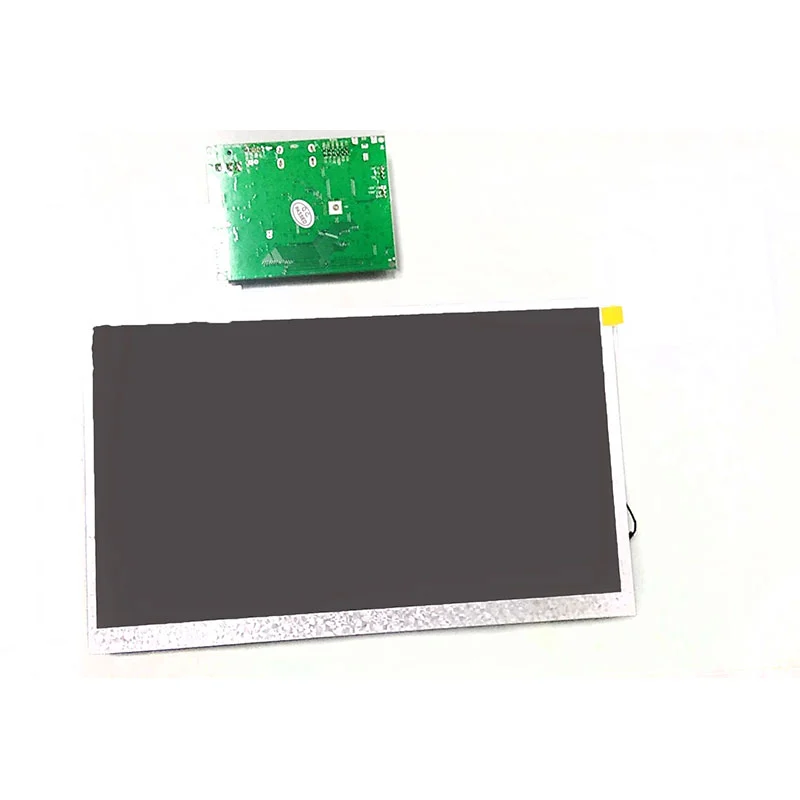

HDMI board / Convert board
Application is for Agricultural equipment, game console
Can custom capacitive touch screen
Get a Quote
Documentation
| Item | TFT LCD module 10.1 inch |
| Model No | PV101017LZR50Q |
| Resolution | 1024×3 (RGB)×600 |
| Outline Dimension | 235(W)×143(H)×4.5(T |
| Active Area(mm) | 222.72(W)×125.28(H) |
| Interface | TTL |
| Brightness | 350 cd/m2 |
| Viewing Angle | ALL |
| Display Mode | Normally BLACK |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Board | HDMI board |
| Touch panel | Capacitive touch |
The 10.1inch 1024x600 IPS TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
