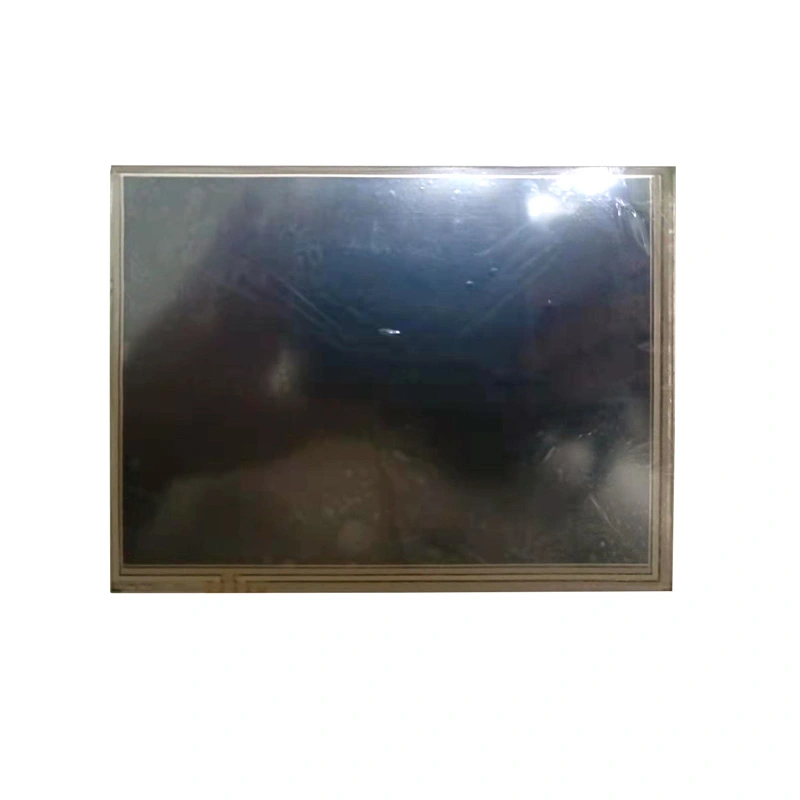

Kingtech 5.7inch 640*480 TN LCD display supply is very stable. This 5.7inch display supports an 18bit RGB interface. In addition, the 5.7inch VGA module is 1000nits sunlight-readable, can be used at outdoor. The life-time is 50000h. For the touch part, Kingtech can custom the touch according to the customer's requirements.
TN / 6 o'clock/Normally white
640x480 /VGA resolution
Stable supply
High brightness/Sunlight readable/outdoor/1000nits
Can custom capacitive touch screen
Get a Quote
Documentation
| Item | 5.7inch 600x480 LCD display |
| Model No | PV05702YP40C |
| Resolution | 640x480 |
| Outline Dimension | 127.00*98.43*8.20 mm |
| Active Area(mm) | 115.20*86.40 |
| Interface | 18bit RGB |
| Driver IC | HX8250-A+HX8678-B |
| Brightness | 1000nits |
| Viewing Angle | 6 o'clock |
| LED life | 50000h |
| Display Mode | TN / Transmissive / Normally white |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Can custom capacitive touchscreen |
The 5.7inch 640x480 1000nits 18bit RGB TN TFT LCD display can be used for agricultural equipment, medical device, game console, outdoor and smart homes, etc.
