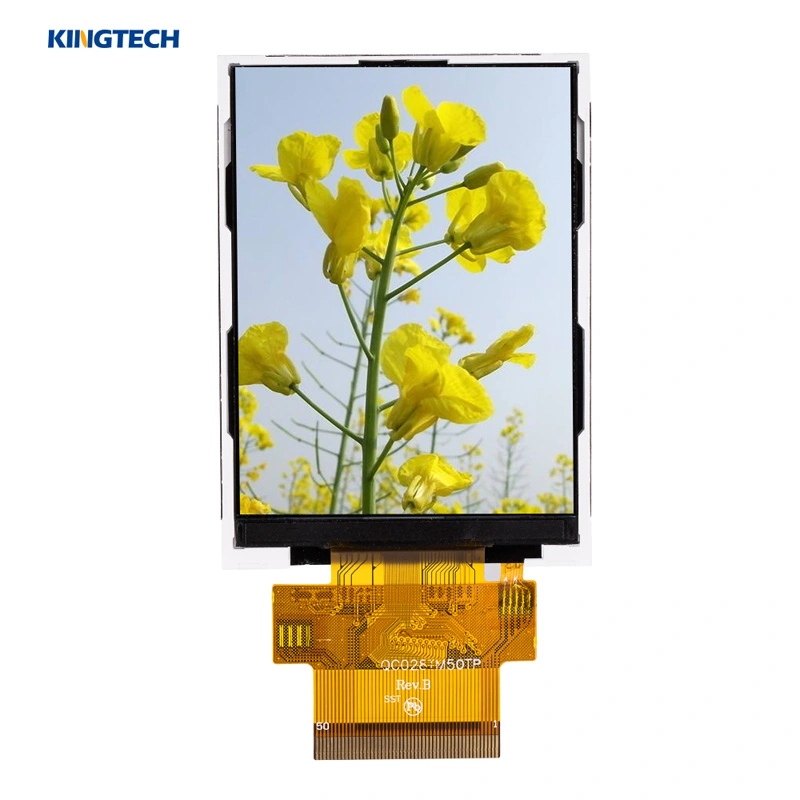

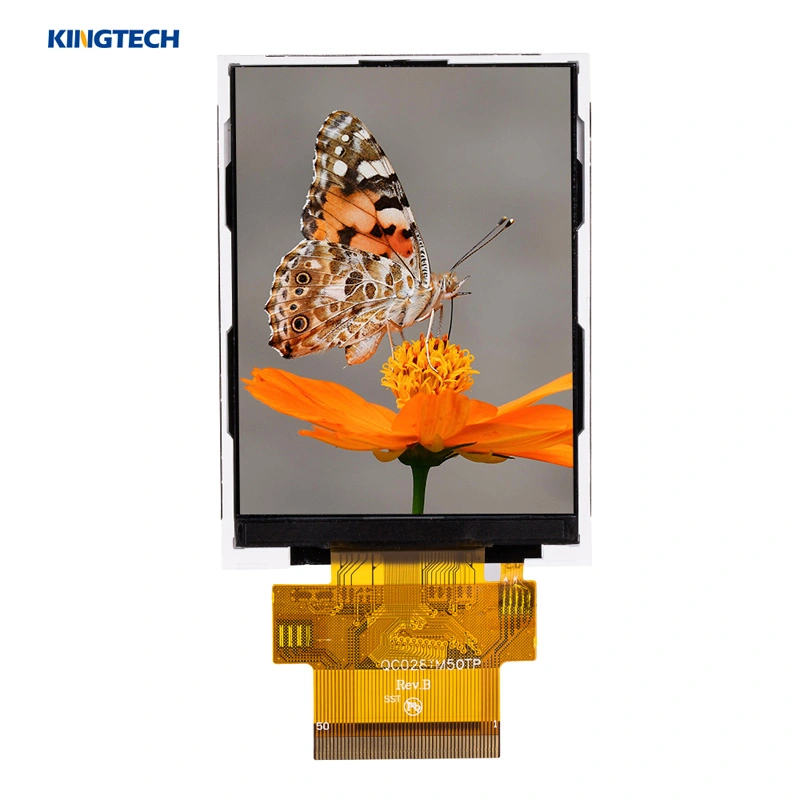

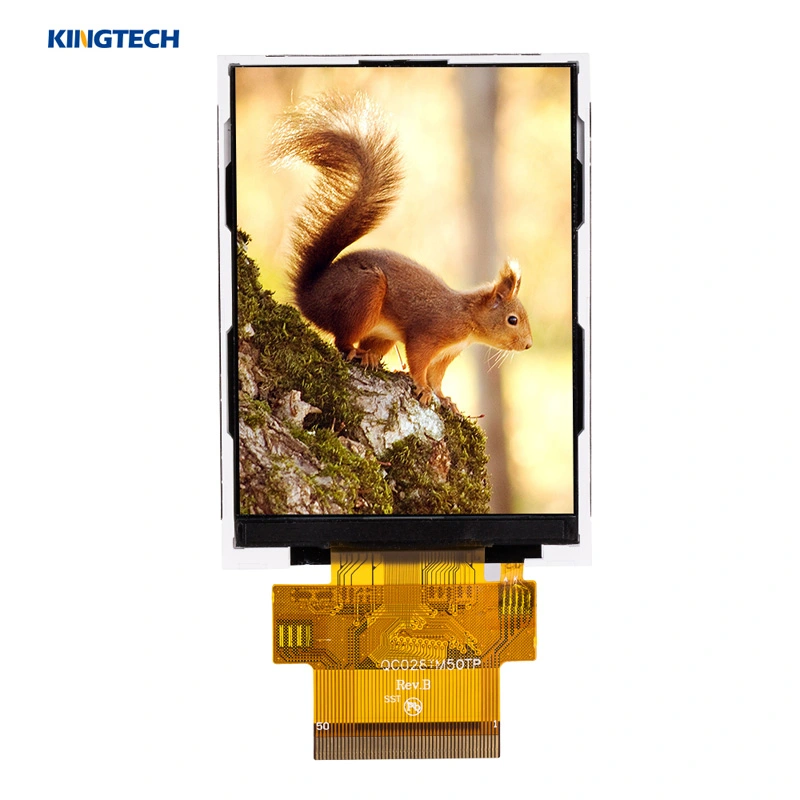

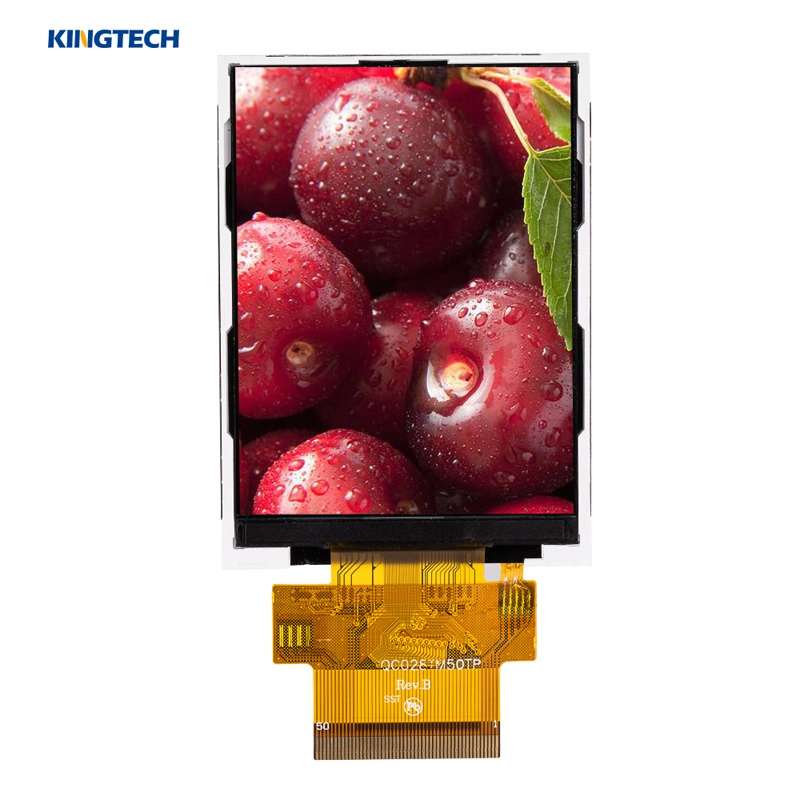

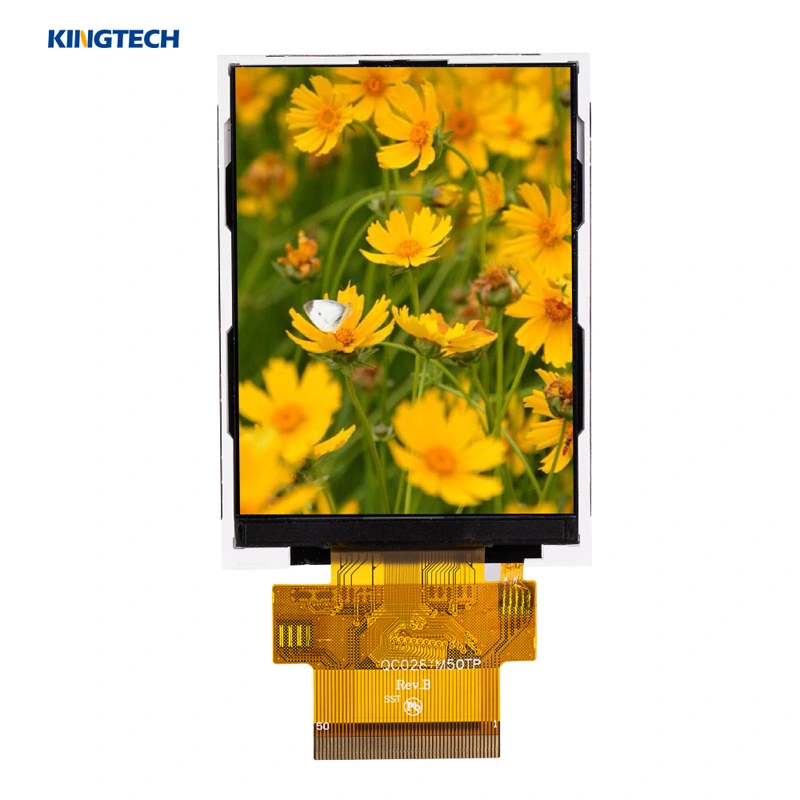

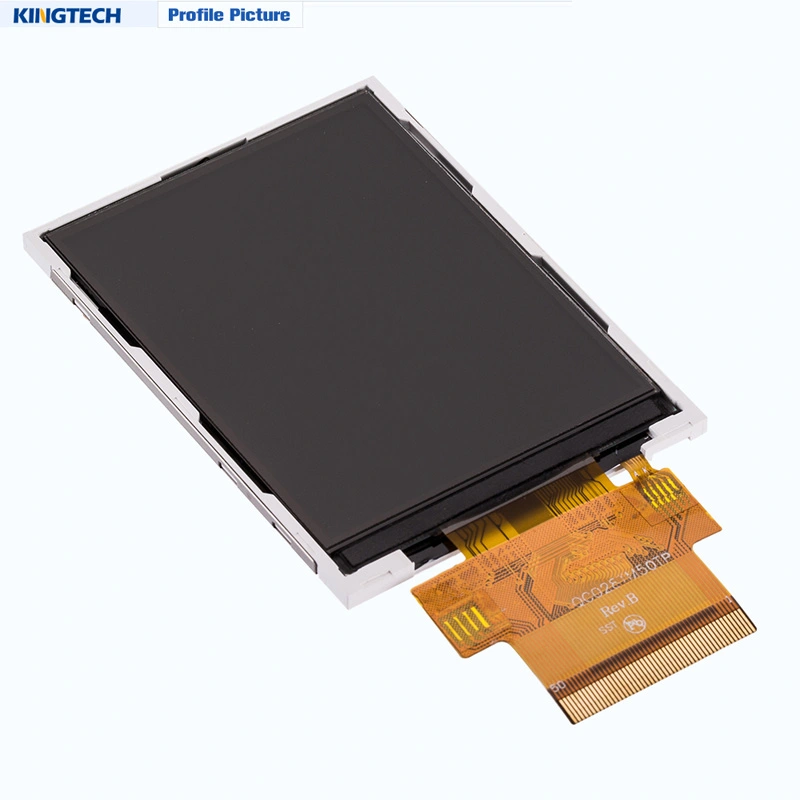

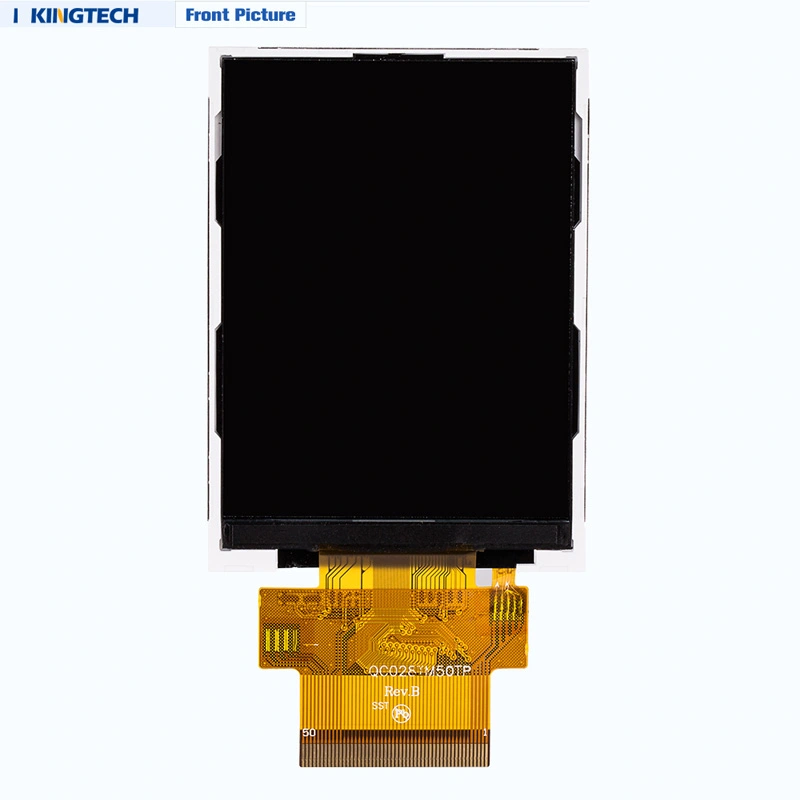

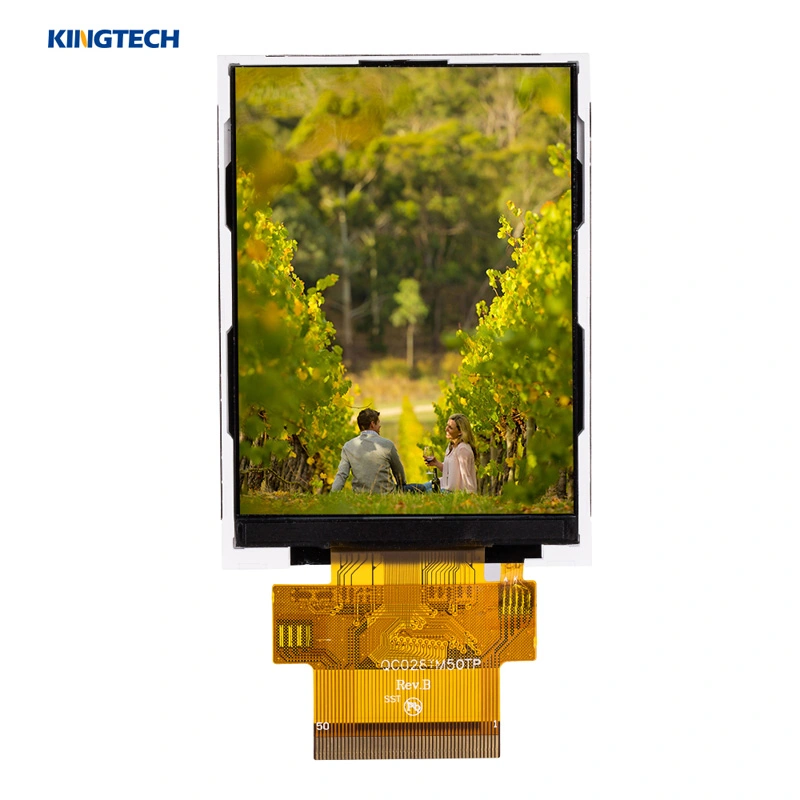

Kingtech 2.8inch 240x320 (QVGA) IPS/free/all viewing angle TFT LCD display is our most leading product.
With advanced technology, we can promise to produce quakified 2.8 TFT display with resistive touchscreen. We, being a LCD factory, can also custom the touch part according to customer requirements. Moreover, most of the customers use 2.8 inch LCD dispaly for medical devices. The 2.8inch IPS display has the 2.8 TFT capacitive touchscreen.
This kind of 2.8 inch display LCD TFT has many features, as following:
240x320 /QVGA resolution
All / wide/ free viewing angle
IPS type
Support SPI / RGB / MCU interfaces
Support resistive touch and capacitive touch
Get a Quote
Documentation
| Item | 2.8 inch IPS TFT module display |
| Model No | PV02819HZ39L |
| Resolution | 240*320 |
| Outline Dimension | 50.0(W)*69.2(H)*2.5(T) |
| Active Area(mm) | 43.2(W)*57.6(H) |
| Interface | i80-system 8/16/18-bit MCU interface 3SPI/4SPI/ 16/18-bit RGB interface |
| Viewing Angle | All |
| Driving IC | ST7789V |
| Display Mode | Transmission / Normally Black |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Brightness | 400nits |
| Touch panel | The resistive and capacitive touch panel |
This kind of 2.8 TFT LCD with touch screen can be applied in many industries, as following:
The 2.8 TFT LCD module can be used for medical device, industrial control, handheld equipment, smart home, POS machine, and the robot.
