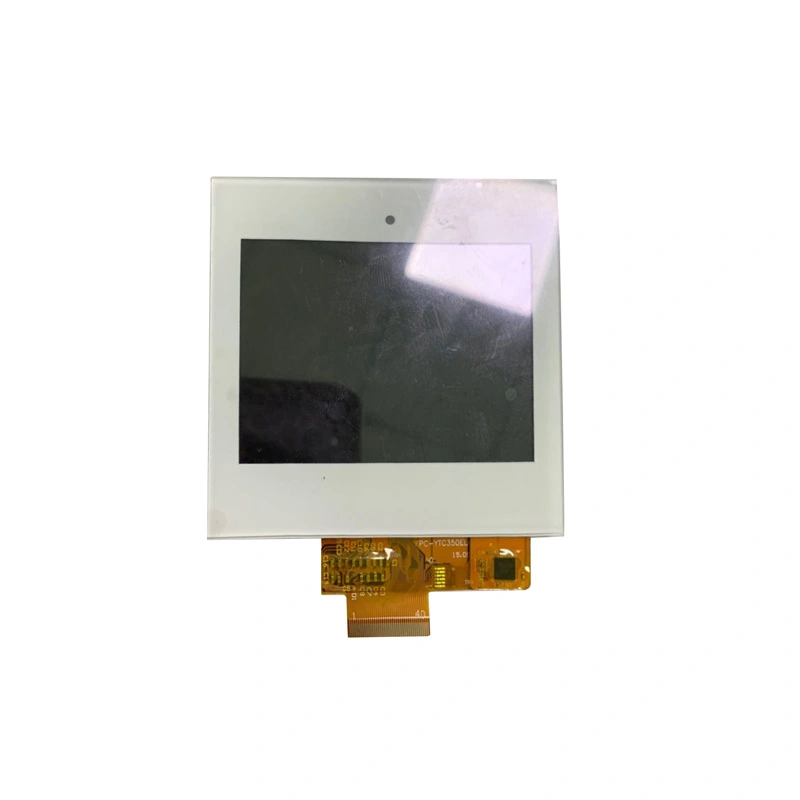

Kingtech 4.0inch 720*720 IPS LCD display supply very stable. This 4.0 inch square module supports MIPI interface. In addition, the 4.0 inch TFT module has existing capacitive touch panel. The 4inch LCD with YY1821 driver IC, this 4inch TFT screen is All/Free/Wide viewing angle/IPS type. For the touch part, Kingtech can custom the touch according to the customer's requirements.
All/Free/Wide viewing angle/IPS
720x720 resolution
Square LCD display
YY1821 IC
Existing capacitive touch panel
Mipi interface
Get a Quote
| Item | 4.0 inch 720x720 IPS lcd module |
| Model No | DW04002YB30B-C |
| Resolution | 720x720 |
| Outline Dimension | 84.0*84.0*2.6 |
| Active Area(mm) | 71.93*71.93 |
| Driver IC | YY1821 |
| Interface | MIPI |
| Brightness | 300nits |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | Transmissive / Normally black |
| PIN | 30 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch panel | Support capacitive touch |
| Touchscreen | Can custom capacitive/resistive touchscreen |
The 4.0 inch 720x720 IPS TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
