Kingtech PV05040D0140M is 5.0inch transmissive TFT LCD module. Its viewing angle is All 80/80/80/80, IPS panel technology. The resolution is 800x480. It supports RGB 24bits interface, with 40pins standard, so its compatiblity is very good. Its brightness is 500nits. This specification is very hot selling one, suitable for industrial
5inch IPS 800x480 / WVGA
Better compatiblity with customer's board, Standard RGB interface 40pins
Resistive touch, Capacitive touch optional
Get a Quote
Documentation
| Item | 5.0inch IPS 800x480 LCD RGB interface with 40pins standard |
| Model No. | PV05040D0140M |
| Resolution | 800*480 |

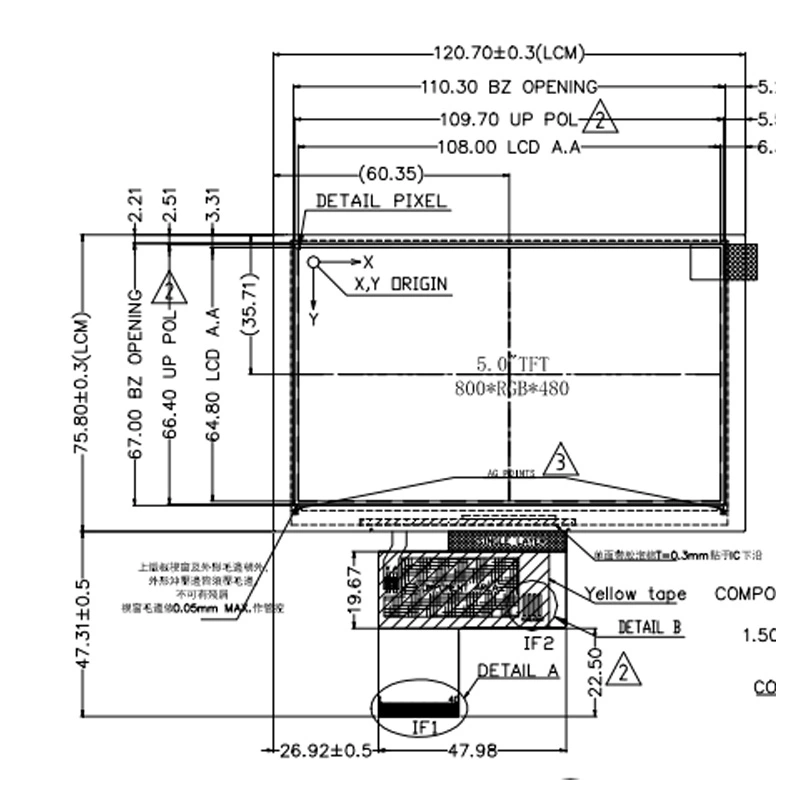

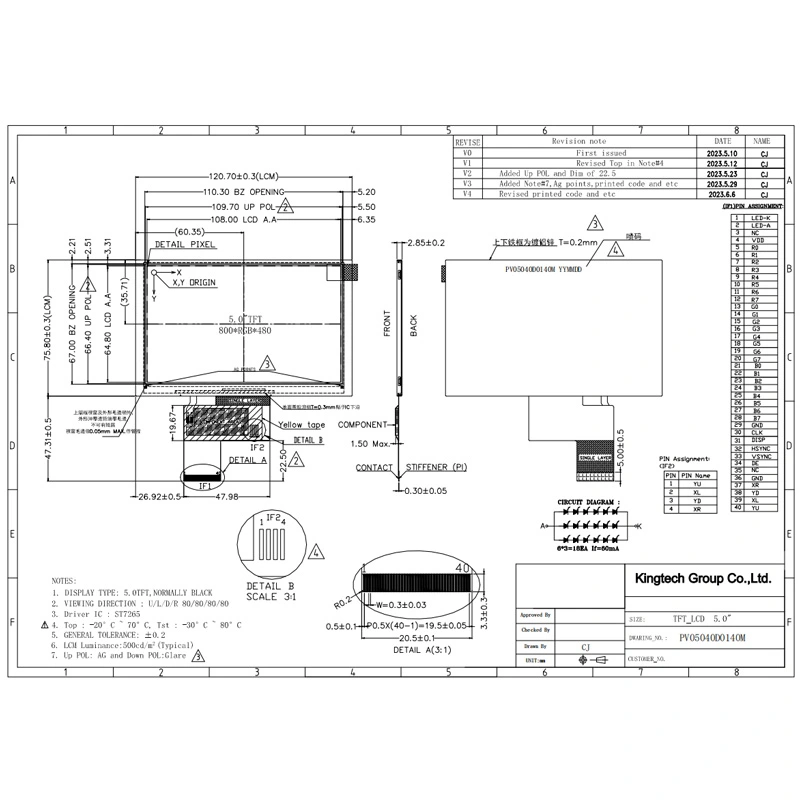

| Outline Dimension (mm) | 120.70*75.80*2.85 |
| Active Area (mm) | 108.00*64.80 |
| Viewing Angle | IPS |
| Brightness | 500nits |
| Interface | RGB |
| Backlight | 6S3P-LEDs (white) |
| Driving IC | ST7265 |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Resistive touch and capacitive touch for optional |
| Application | Medical, hand-held device, industrial, outdoor, advertising, E-bike, EV-Chargers etc |
It is applicable for handheld device, industrial, Medical, Smart Home, high end consumer electronics.
