Kingtech PV05018Y0140U is 5.0inch TFT colorful LCD module. Its viewing angle is all, IPS panel technology. The resolution is 800x480. Its driver IC is ST7265, supporting LVDS interface with standard 40pins. Its backlight is 6*3LED, brightness can reach up to 1000nits Typical. It is designed for outdoor application, such as motorcycle, industrial PLC, Advertising display, farm equipment etc.
5.0inch IPS LCD
High brightness / 1000nits/ Outdoor /Sunlight readable
All/Wide/Free viewing angle
LVDS interface 40pins
Capacitive Touch or resistive touch optional
Wide operating temperature /-30~+85C
Get a Quote
Documentation
| Item | High brightness 5.0inch 800x480 IPS LCD with LVDS |
| Model No. | PV05018Y0140U |
| Resolution | 800*480 |

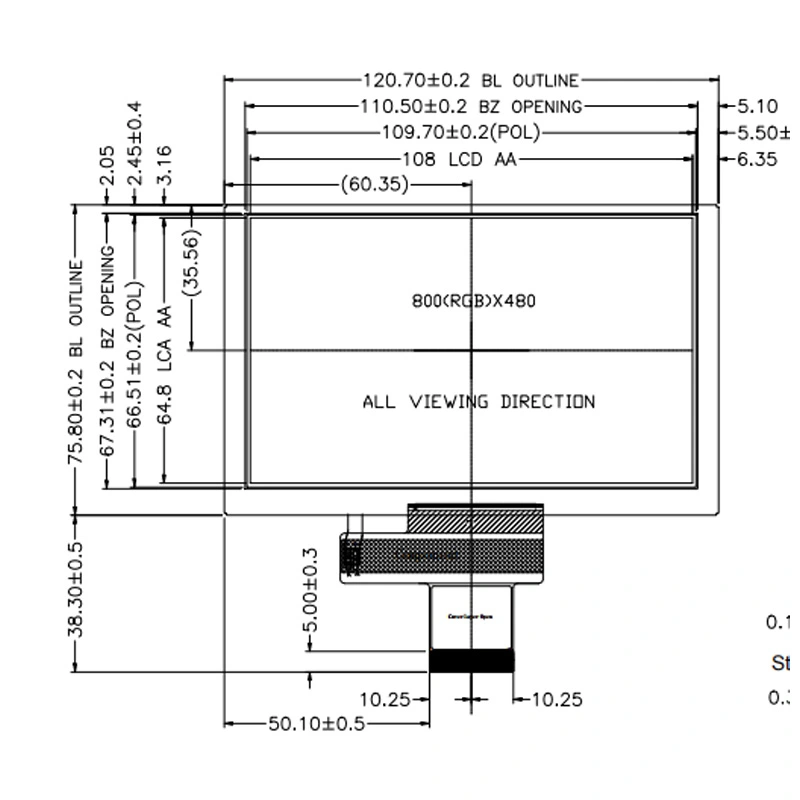

| Outline Dimension (mm) | 120.9*76.05*2.95 |
| Active Area (mm) | 108*64.8 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | LVDS |
| Backlight | 18 LEDs |
| Driving IC | ST7265 |
| PIN No. | 40 |
| Operating Temperature | -30~85C |
| Storage Temperature | -30~85C |
| Touch screen | Resistive Touch and Capacitive Touch |
| Application | Outdoor application, handheld device, E-bike, industrial, Medical, EV-Chargers. |
It is applicable for motorcycle, industrial PLC, Advertising display, farm equipment, E-bike, EV-Chargers etc.
