Kingtech 3.5 inch 320*240 LCD display supply very stable. This 3.5 inch supports RGB/ SPI interface. In addition, the 3.5 inch TFT module brightness is 290nits, and this 3.5 inch screen is TN Viewing Angle / 12 O’ CLOCK Viewing Angle type. For the touch part, Kingtech can custom the touch according to customer’s requirements.
Landscape / Horizontal
QVGA/ 320x240
Stable supply

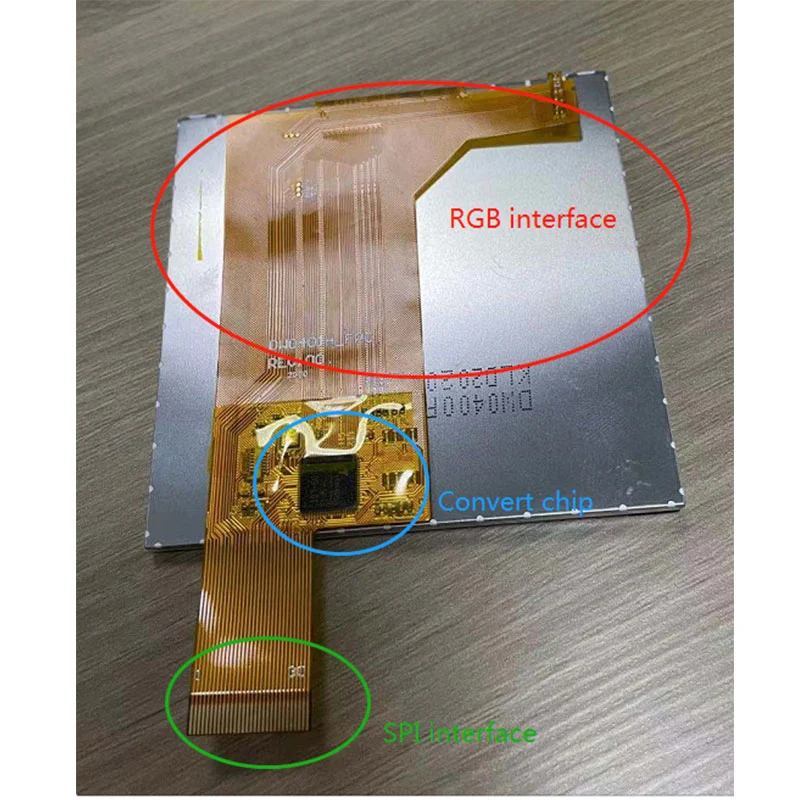

HDMI board / Convert board
RGB+SPI interface
Can custom capacitive touch and resistive touch
Get a Quote
Documentation
| Item | 3.5 inch QVGA TFT LCD display |
| Model No | PV03501H0154C |
| Resolution | 320*240 |
| Outline Dimension | 76.90*63.90*3.27 |
| Active Area(mm) | 70.08*52.56 |
| Viewing Angle | 12 O’CLOCK |
| Technology type | TRANSMISSIVE |
| Interface | 24BIT RGB+SPI / SPI MCU interface |
| Driving IC | HX8238D / SSD2119 |
| Brightness | 290nits |
| Life-time | 50000h |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Touch screen | Support capacitive/ resistive touch |
The 3.5 inch 320*240 TN TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
