Kingtech 2.4 inch 240*320 resolution TFT LCD display. It with stable production. This 2.4 inch TFT LCD display supports RGB+SPI interface, ST7789 driver IC. It with IPS viewing angle, 700nits high brightness for sunlight readable. Mainly application for Smart home, medical, industrial. For 2.4inch QVGA LCD module touch part, we can also customize capacitive and resistive touch according to the customer requirements.
TFT LCD DISPLAY
240*320/QVGA
Stable supply
IPS/Full/Wide/All viewing angle
4 Line RGB+SPI interface
700nits/High brightness/ Sunlight readable/Outdoor
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart watch, E-bike
Get a Quote

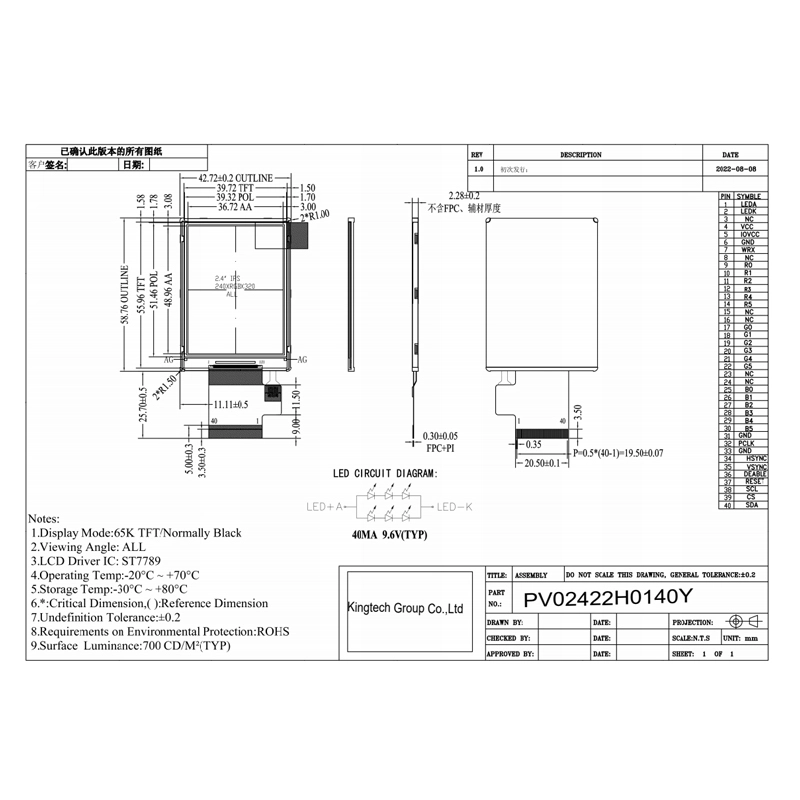

Documentation
| Item | 2.4 inch IPS 240*320 RGB+SPI interface lcd display |
| Model No. | PV02422H0140Y |
| Resolution | 240*320/QVGA |
| Outline Dimension (mm) | 42.72*58.76*2.28 |
| Active Area (mm) | 36.72*48.96 |
| Viewing Angle | All |
| Brightness | 700nits |
| Interface | RGB+SPI |
| Backlight | 3*2LED |
| Driving IC | ST7789 |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
The 2.4 inch 240*320 TFT can be used for Smart home, Medical, hand-held device, E-bike, industrial or others.
