Kingtech 8 inch 800*1280 Vertical screen TFT module display with capacitive touch supply very stable. This 8 inch supports MIPI 4 LANE interface. In addition, the 8 inch TFT display module brightness is 380 nits, and this 8-inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, this 8 inch is capacitive touch Optical bonding and Kingtech also can customize capacitive touch according to the customer requirements.
TFT display
800*1280
Stable supply
Free / IPS/ full / wide viewing angle
Vertical screen
MIPI interface
Medical / Hand-held/ Industrial /POS machine
PACP/ Capacitive touch, Optical bonding
Get a Quote

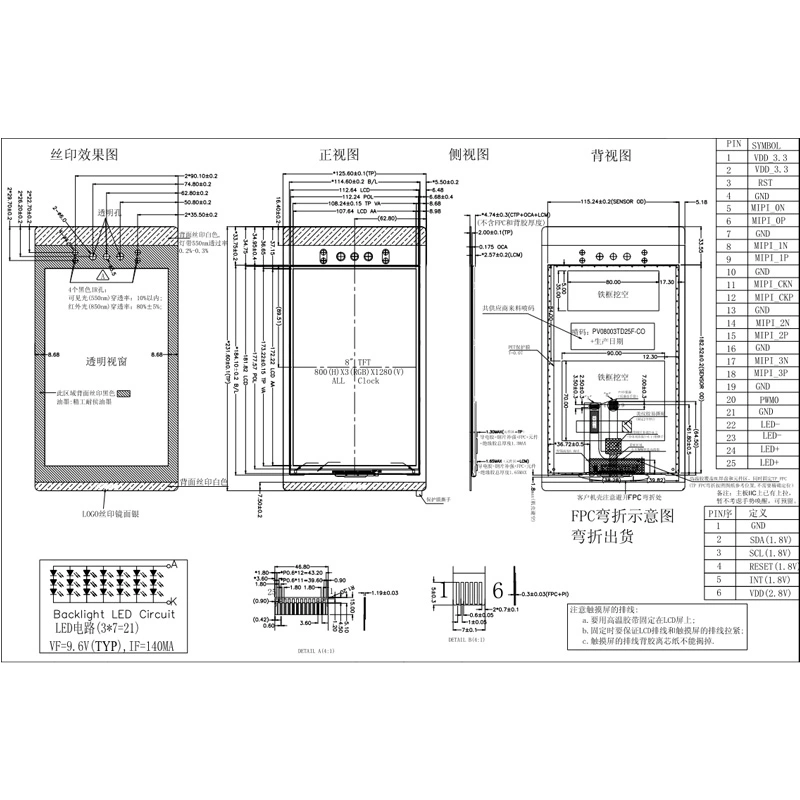

Documentation
| Item | 8 inch 800*1280 TFT display module |
| Model No | PV08003TD25F-CO |
| Resolution | 800*1280 |

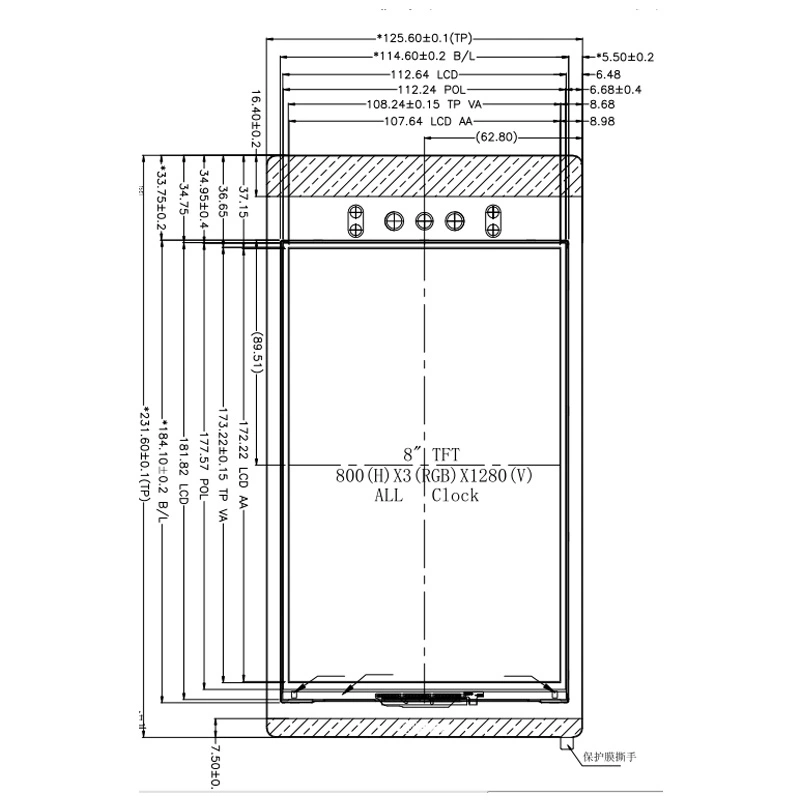

| Outline Dimension | 125.6*231.6*4.74 |
| Active Area(mm) | 107.64*172.22 |
| Viewing Angle | All |
| Display colors | 16.7M |
| Driving IC | ILI9881C |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Brightness | 380nits |
| Interface | MIPI 4 LANE |
| Touch panel | Capacitive touch, Optical bonding |
The 8 inches 800*1280 vertical screen TFT display module can be used for medical, Industrial, and POS machines.
