Kingtech 1.8 inch 160*128 PMOLED display module supply very stable. This 1.8 inch supports 8/9/16/18-bits 6800/8080-series Parallel Interface, Serial Peripheral Interface. This one is wide temperature -40~+70C. In addition, the 1.8inch PMOLED display module brightness is 50 nits, and this 1.8 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, we can also be customized capacitive touch according to the customer requirements.
PMOLED display
2.160*128
3.Stable supply
4.All/Free/Wide viewing angle/IPS
5.small / tiny display
6.8/9/16/18-bits 6800/8080-series Parallel Interface, Serial Peripheral Interface
7.Smart watch/wearable
8.Can custom capacitive touch
9.Wide temperature / -40~+70C
Get a Quote
Documentation

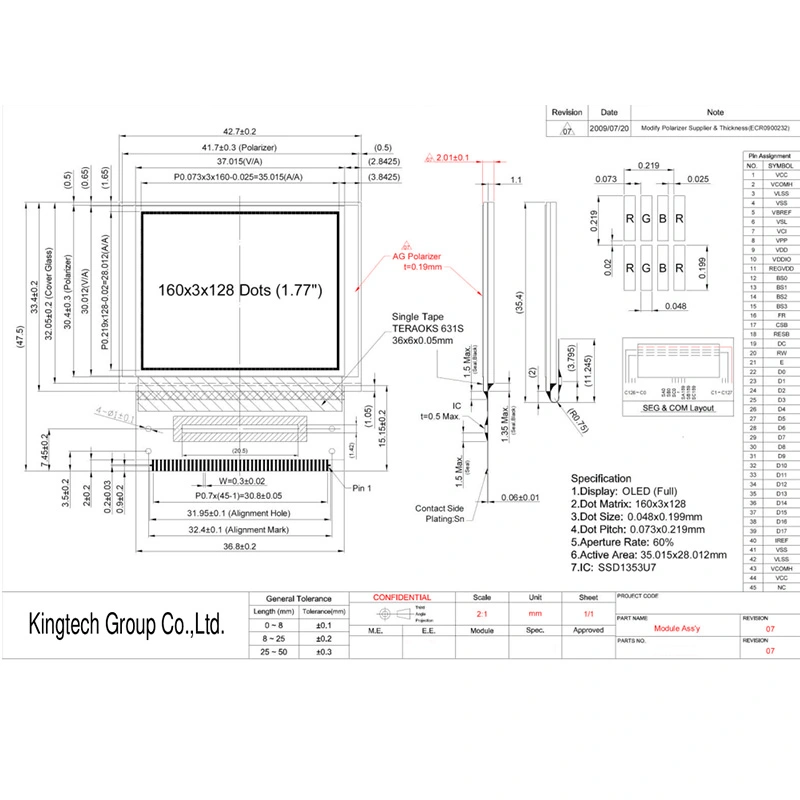

| Item | 1.8 inch 160*128 AMOLED display |
| Model No | PV18160128FH007 |
| Resolution | 160*128 |

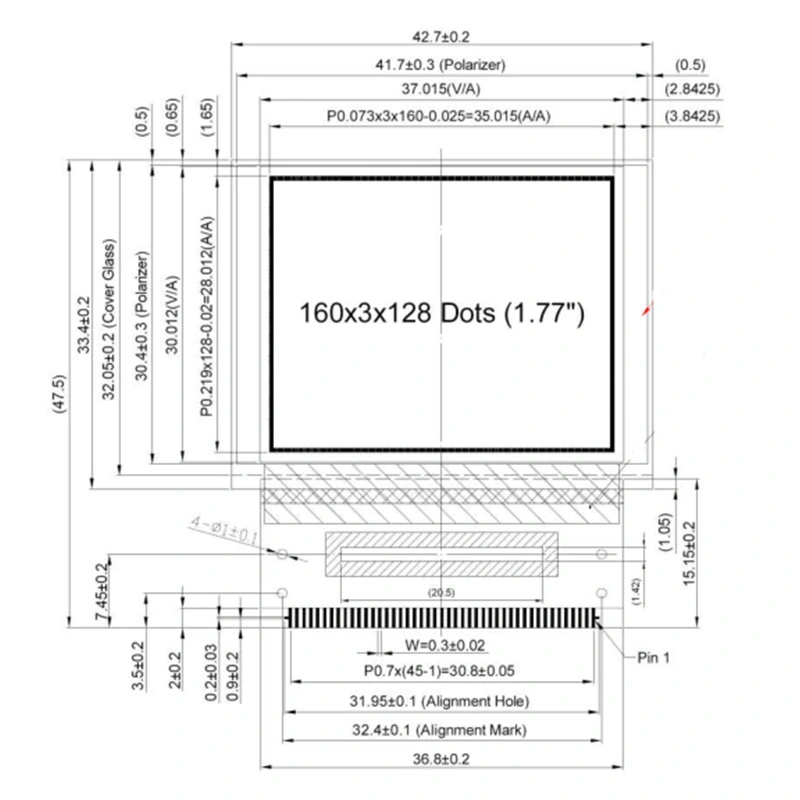

| Outline Dimension | 42.7*47.5*2.01 |
| Active Area(mm) | 35.015*28.012 |
| Driving IC | SSD1353U7 |
| Operating Temperature | -40℃~70℃ |
| Storage Temperature | -40℃~85℃ |
| Viewing angle | ALL |
| Brightness | 50nits |
| Interface | 8/9/16/18-bits 6800/8080-series Parallel Interface, Serial Peripheral Interface. |
| PIN | 45 |
| Touch panel | Can custom capacitive touch |
The 1.8 inch 160*128 PMOLED display module can be used for Smart watch and wearable.
