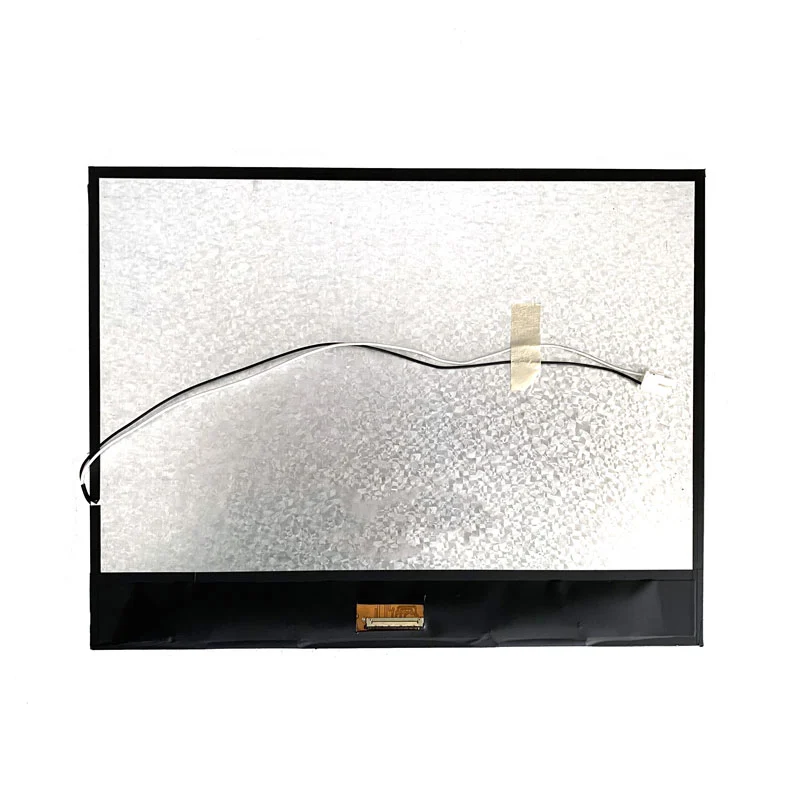

Kingtech 9.7 inch 1024*768 IPS TFT display supply very stable. This 9.7 inch supports LVDS interface. In addition, the 9.7 inch TFT module brightness is 500nits, and this 9.7 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, the display for capacitive touch, can also be customized according to customer.
All/Free/Wide viewing angle/IPS
1024*768
High brightness/Sunlight readable/500 nits
Stable supply
Landscape / Horizontal display
LVDS interface
Can custom capacitive/ resistive touch
Get a Quote
Documentation
| Item | 9.7 inch TFT LCD module |
| Model No | PV09704TX30D |
| Resolution | 1024*768 |

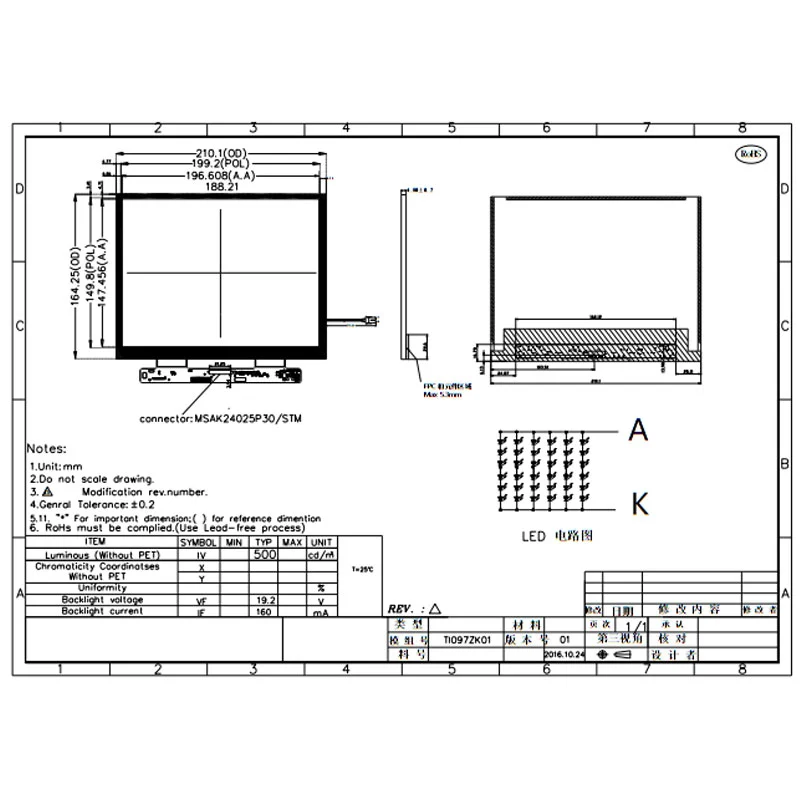

| Outline Dimension | 210.10(W) ×164.25(H) ×4.8(D) mm |
| Active Area(mm) | 196.608(W) ×147.456(H) mm |
| Interface | LVDS |
| Brightness | 500 cd/m2 |
| Viewing Angle | ALL |
| Display Mode | Normally Black Transmissive |
| PIN | 30 |
| Operating Temperature | 0~50 |
| Storage Temperature | -20~60 |
| LED life time | 25000 |
The 9.7inch 1024*768 IPS TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
