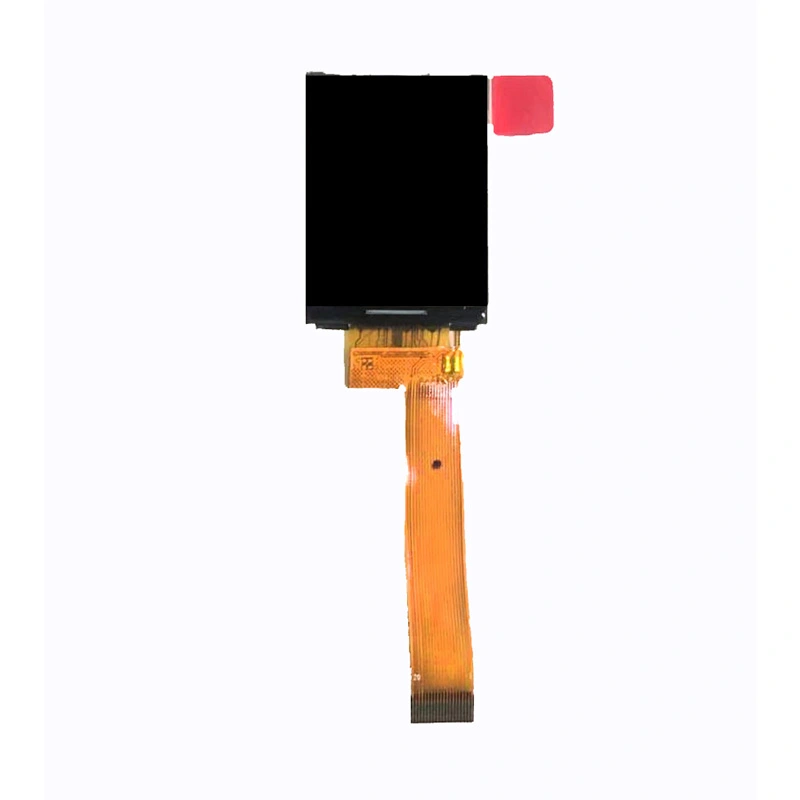

Kingtech 1.77 inch 128*160 Vertical TFT lcd display module supply very stable. This 1.77 inch supports 8-BIT MCU. In addition, the 1.77inch TFT LCD display module brightness is 1000nits sunlight readable, and this 1.77 inch screen is 6 O'clock /TN viewing angle type. For the touch part, we can also be customized capacitive touch or resistive touch according to the customer’s requirements.
TFT LCD display
6 O'clock /TN viewing angle
128*160
Stable supply
small / tiny display
OLED display
1000nits sunlight readable
Smart watch/wearable
Can custom capacitive touch
Get a Quote
Documentation

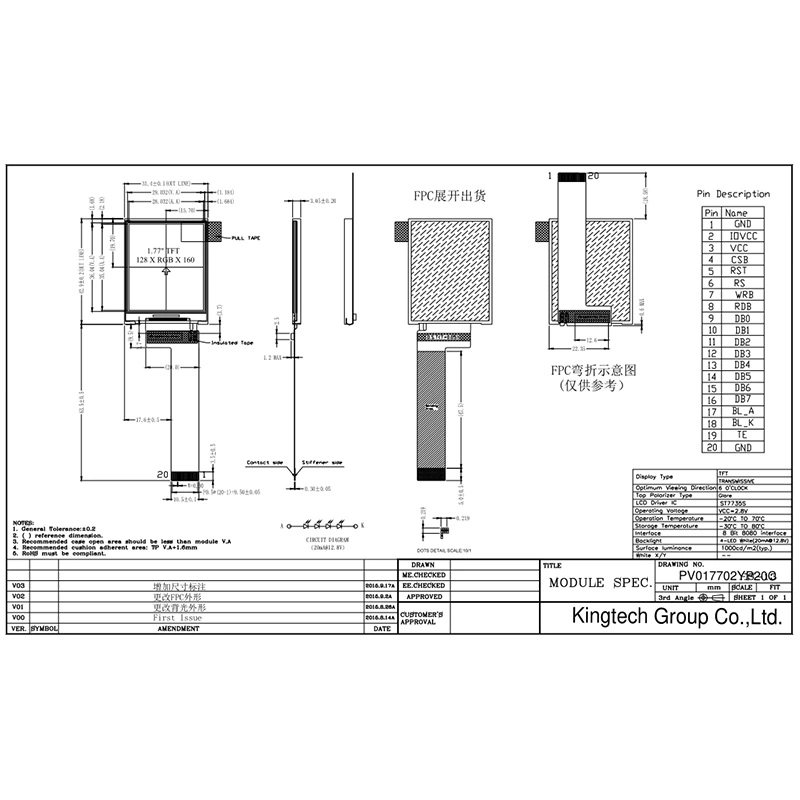

| Item | 1.77 inch 128*160 TFT lcd display |
| Model No | PV017702YP20C |
| Resolution | 128*160 |
| Outline Dimension | 31.4*42.9*3.05 |
| Active Area(mm) | 28.032*35.04 |
| Brightness | 1000 nits |
| Viewing Angle | 6 O'clock |
| Interface | 8-BIT MCU |
| Driving IC | ST7735S |
| PIN | 20 |
| Operating Temperature | -20 to +60℃ |
| Storage Temperature | -30 to +70℃ |
| Touch screen | Can custom capacitive touch |
The 1.77 inch 128*160 TFT lcd display module can be used for agricultural equipment, medical device, game console, outdoor device and smart home etc.
