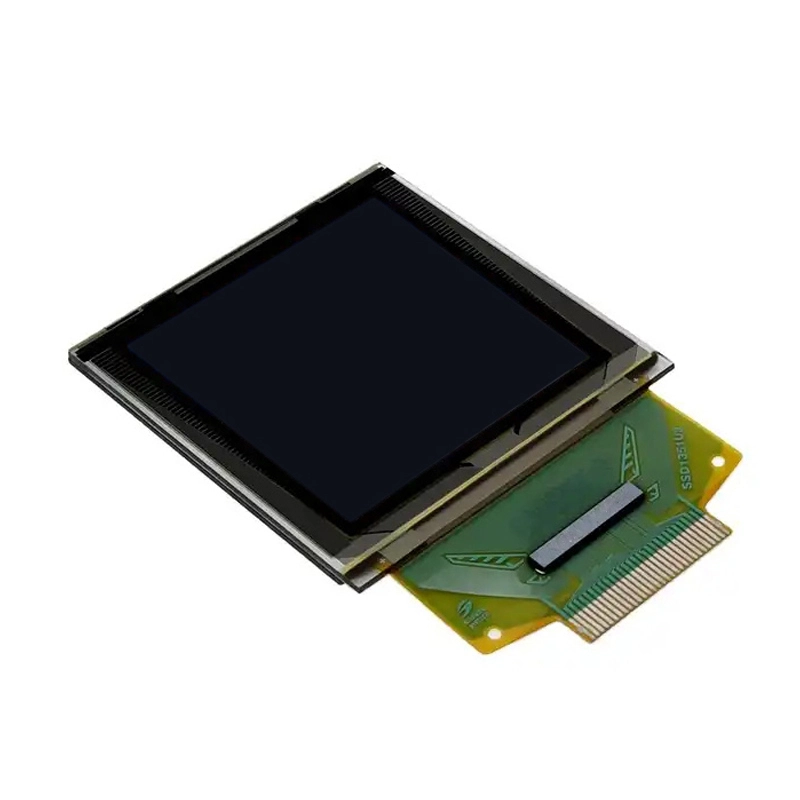

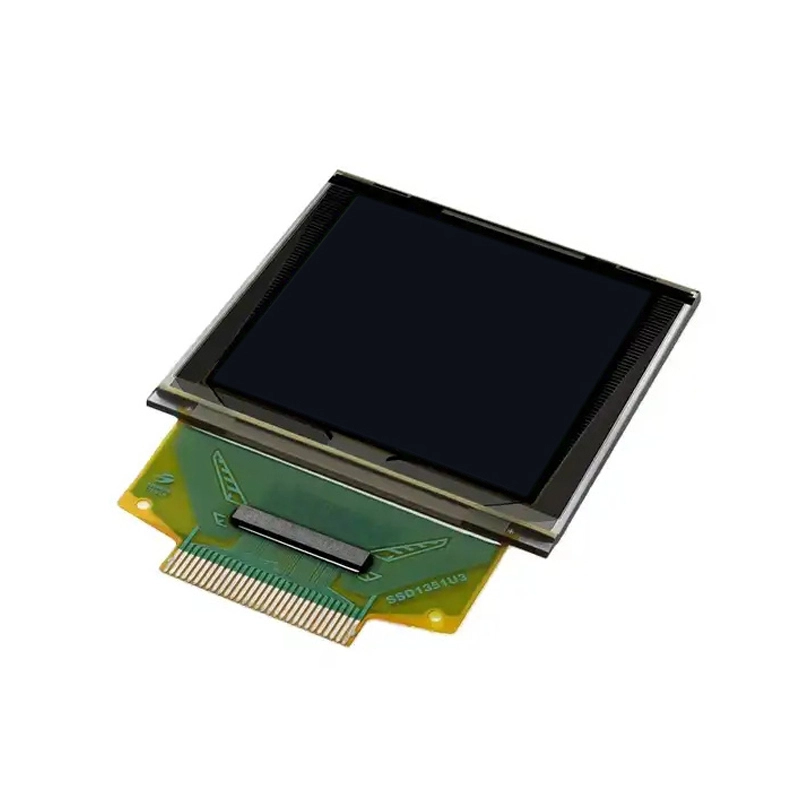

Kingtech 1.5 inch 128x128 resolution PMOLED display. It with stable production. This 1.5 inch square OLED display supports 8-bits 68XX/80XX Parallel, 3-/4-wire SPI interface, SSD1351 driver IC. It with all viewing angle, wide work temperature. Mainly application for Smart home. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Wide temperature PMOLED
128*128
Stable supply
All/Full/Wide/IPS viewing angle
8-bits 68XX/80XX Parallel, 3-/4-wire SPI interface
Square small display
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart watch
Get a Quote
Documentation
| Item | 1.5 inch 128x128 PMOLED display |
| Model No. | PV150128128GDEDF11 |
| Resolution | 128*128 |

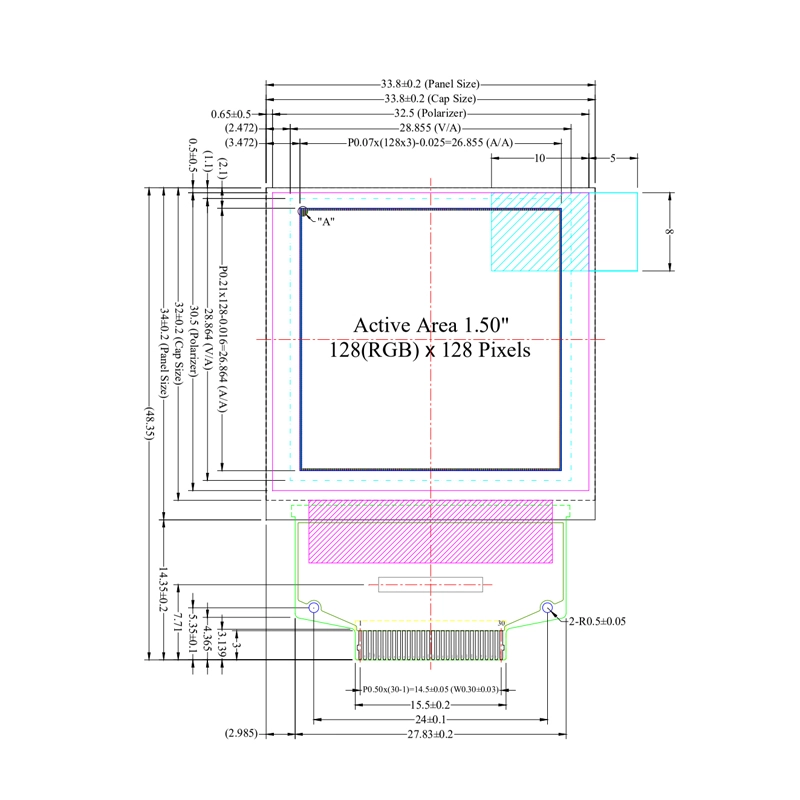

| Outline Dimension (mm) | 33.80*34.00*1.60 |
| Active Area (mm) | 26.855*26.864 |
| Viewing Angle | IPS |
| Brightness | 110nits |
| Interface | 8-bits 68XX/80XX Parallel, 3-/4-wire SPI |
| Backlight | / |
| Driving IC | SSD1351 |
| PIN No. | 30 |
| Operating Temperature | -30~70C |
| Storage Temperature | -40~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
The 1.5 inch PMOLED display can be used for Smart watch, Medical, hand-held device, industrial or others.
