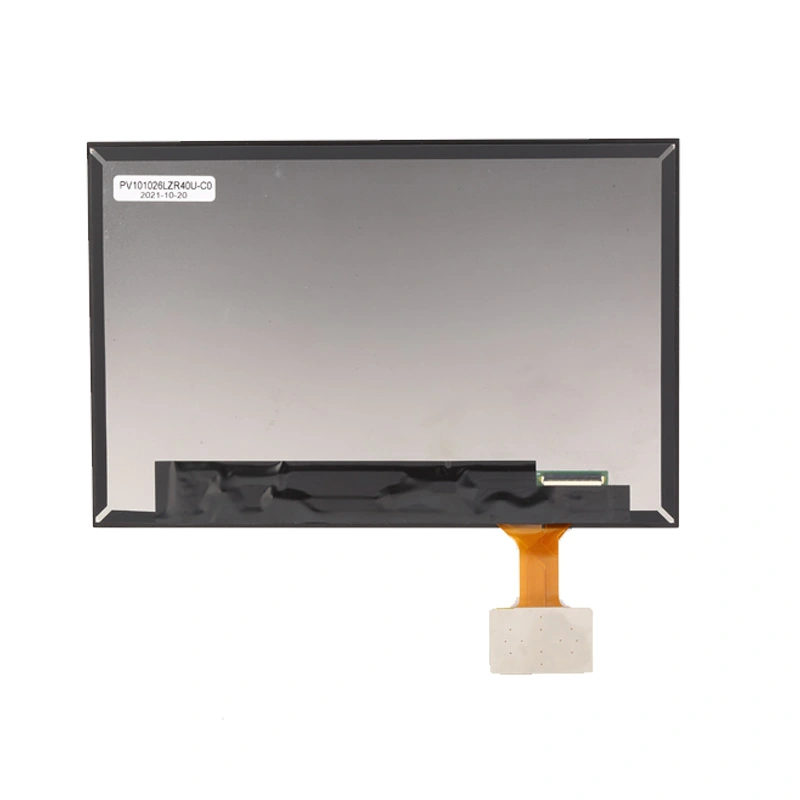

Kingtech 10.1 inch 800*1280 IPS high definition portrait LCD display. This 10.1inch display can support LVDS and MIPI interface. This 10.1-inch screen is All/Free/Full/Wide viewing angle/IPS type. For the touch screen, brightness, and interface, Kingtech can be custom-made according to your requirements. We can provide Gorilla cover glass for this model.
All/Free/Wide viewing angle/IPS
800*1280 / WXGA
Stable supply
Portrait / Vertical display
Work temperature/-20℃~+70℃
MIPI / LVDS interface available
Can custom capacitive touch screen
Get a Quote
Documentation
| Item | 10.1 inch 800x1280 IPS LCD display |
| Model No | PV101021H0140U |
| Resolution | 800x1280 |

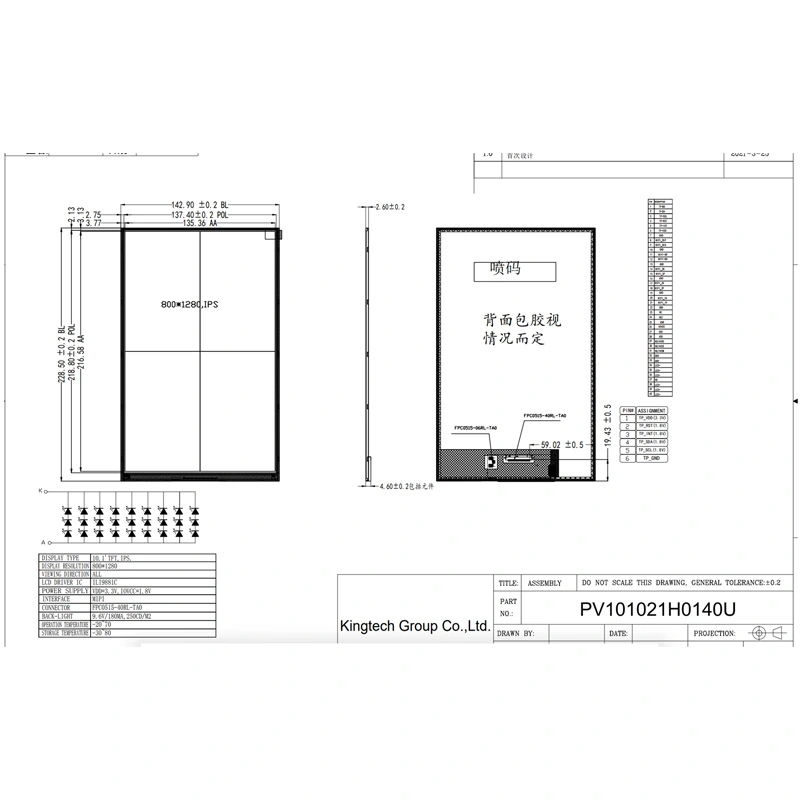

| Outline Dimension | 142.9(W)×228.5(H)×2.6(T) |
| Active Area(mm) | 135.36(W)×216.58(H) |
| Interface | MIPI |
| Driver IC | ILI9881C |
| Brightness | 250nits |
| Viewing Angle | All |
| LED life | 20000h |
| Display Mode | TN / Transmissive / Normally Black |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Can custom capacitive touchscreen |
The 10.1inch 800x1280 IPS TFT LCD display is widely used for handheld devices, industrial and agricultural equipment, medical device, game console, and smart home, etc.
