Kingtech 3.4 inch 800*800 round TFT display supply very stable. This 3.4 inch supports MIPI interface. In addition, the 3.4 inch 800*800 TFT display module brightness is 1000 nits/Sunlight readable/High brightness/outdoor, and this 3.4 inch display is All viewing type. For the touch part, the 3.4inch 800x800 LCD module has existing capacitive toucn and we can also customize touch according to the customer requirements.
3.4 inchTFT display
800*800
Stable supply
All/Full/Wide/IPS viewing angle
Wide temperature/-30~80C
MIPI interface
1000nits brightness/Sunlight readable/High brightness/outdoor
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart-home
Get a Quote
Documentation

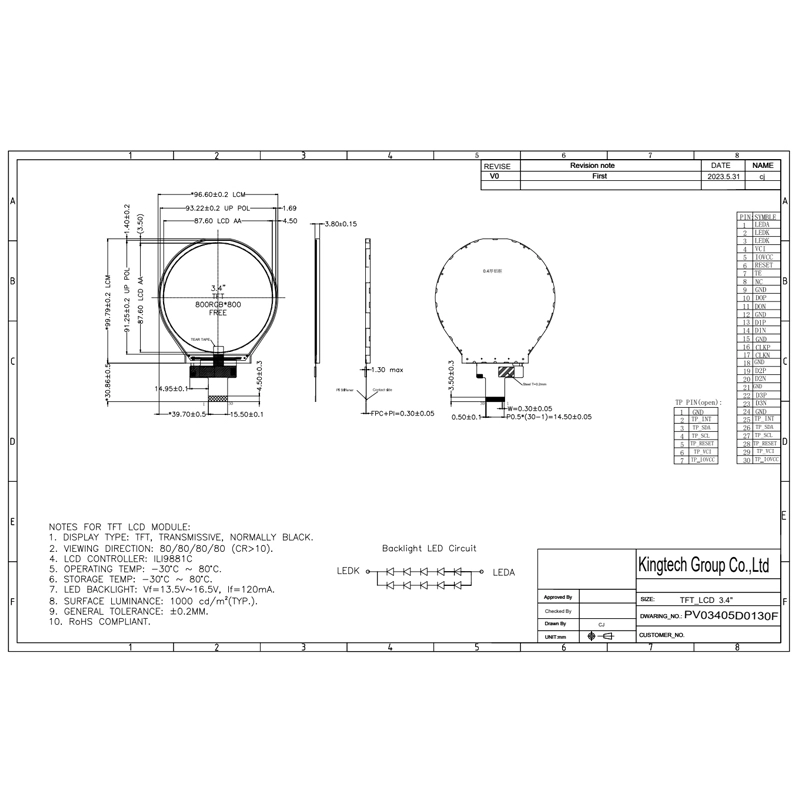

| Item | 3.4inch IPS 800*800 round LCD display |
| Model No. | PV03405D0130F |
| Resolution | 800*800 |
| Outline Dimension (mm) | 96.6*99.79* 3.8 |
| Active Area (mm) | φ 87.6 |
| Viewing Angle | All |
| Brightness | 1000nits/Sunlight readable/High brightness/Outdoor |
| Interface | MIPI |
| Backlight | 5*2LED |
| Driving IC | ILI9881C |
| PIN No. | 30 |
| Operating Temperature | -30~80 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart home |
The 3.4 inch 800*800 1000nits round TFT display module can be used for E-Bike, Medical, hand-held device, industrial, smart-home or others.
