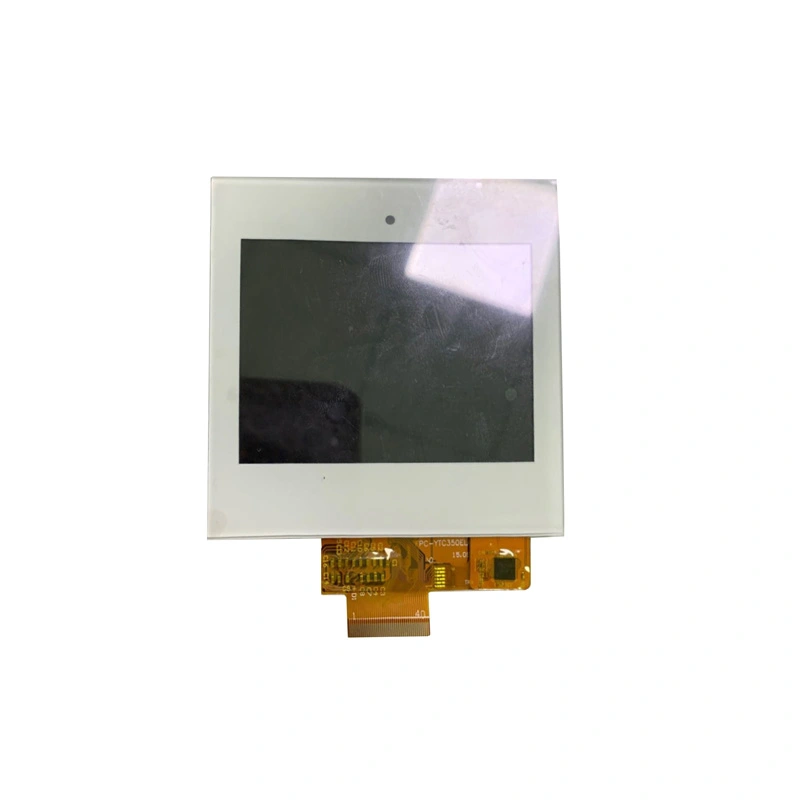

Kingtech 4.0inch 720*720 IPS LCD display supply is very stable. This 4.0inch square display supports SPI+RGB, I2C+RGB interface. In addition, the 4.0 inch TFT module has an existing capacitive touch panel. The 4inch square LCD used YY1821 driver IC, and this 4inch LCD screen is All/Free/Wide viewing angle/IPS type. For the touch part, Kingtech can also custom the touch according to the customer's requirements.
All/Free/Wide viewing angle/IPS
720x720 resolution
YY1821 IC
Existing capacitive touch panel
SPI+RGB, I2C+RGB interface
Get a Quote
Documentation
| Item | 4.0 inch 720x720 IPS LCD module |
| Model No | DW04001YB40A-C |
| Resolution | 720x720 |
| Outline Dimension | 84.0*84.0*2.6 |
| Active Area(mm) | 71.93*71.93 |
| Interface | SPI+RGB,I2C+RGB |
| Brightness | 300nits |
| Driver IC | YY1821 |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | Transmissive |
| PIN | 30 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch panel | Support capacitive touch |
| Touchscreen | Can custom capacitive/resistive touchscreen |
The 4.0 inch TFT LCD display 720x720 can be used for agricultural equipment, medical device, game console, and smart home, etc.
