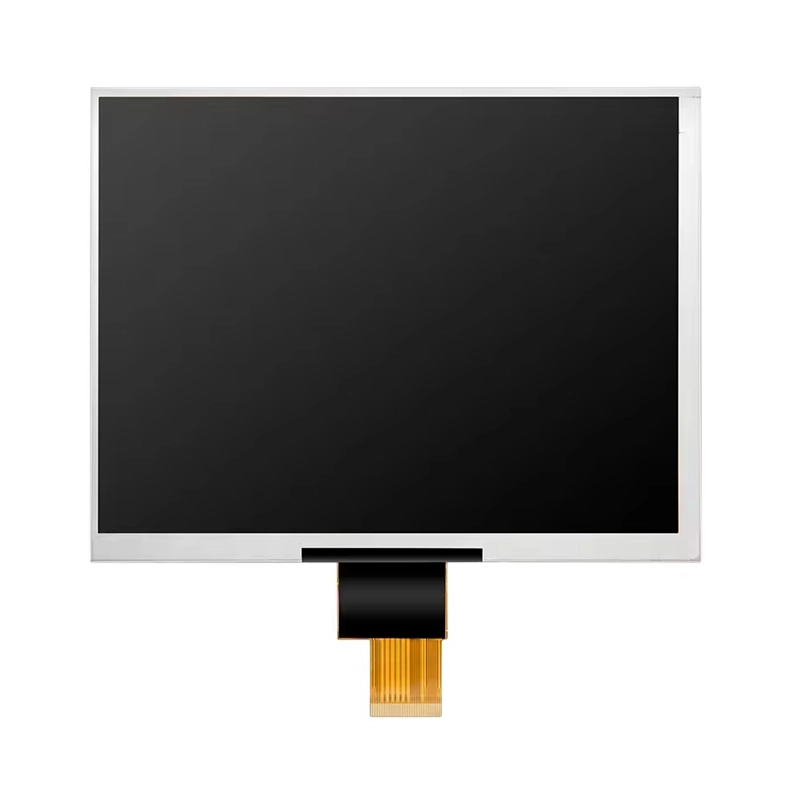

Kingtech PV08015D0140R is a basic 8.0 inch LCD module using IPS TFT-LCD technology. Its resolution is 1024*768dots, providing a very clear and vivid image. With Full Viewing angle, you can see clearly the display from different direction. It support LVDS interface. It is designed for consumer electronics, smart home. It is with a compatible capacitive touch. Kingtech supports stable supply. And we support LCD display related customization, such as FPC, Backlight, Touch, driver board, etc.
8.0inch 1024*768, good ratio shape, XGA
Nice Viewing angle/All/Free/Wide/Full/IPS
Stable supply
Competitive price
Consumer electronics
Commonly used
Get a Quote
Documentation
| Item | 8.0 inch 1024x768 TFT IPS LCD module |
| Model No. | PV08015D0140R |
| Resolution | 1024*768 |

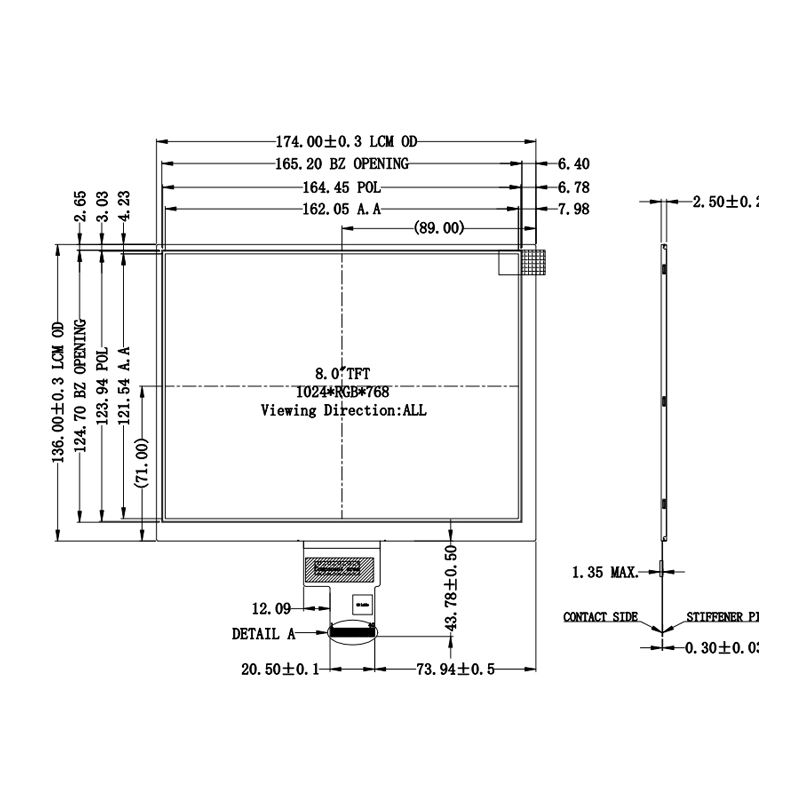

| Outline Dimension (mm) | 174.00*136.00*2.5 |
| Active Area (mm) | 162.05*121.54 |
| Viewing Angle | All |
| Brightness | 300nits |
| Interface | LVDS |
| Backlight | 3*11LED |
| Driving IC | JD9365A |
| PIN No. | 40 |
| Operating Temperature | -20~60C |
| Storage Temperature | -30~70C |
| Touch screen | Resistive touch and capacitive touch optional |
| Application | Consumer electronics, smart home, Consumer electronics, Tablet, Self service Device, E-bike, Automotive, etc |
The 8inch 1024x768 TFT LCD is for consumer electronics, smart home, Consumer electronics, Tablet, Self service Device, E-bike, Automotive, etc
