Kingtech 12.1inch 1024*768 IPS LCD display supply is very stable. This 12.1inch screen supports the LVDS interface. Wide operating temperature of -30℃~85℃. In addition, the 12.1inch TFT module has an existing HDMI Board. The lifetime is 50000h, the brightness is 600nits sunlight-readable, and this 12.1inch screen is All/Free/Full/Wide viewing angle/IPS type. For the touch part, Kingtech can custom the touch according to the customer's requirements.
All/Free/Wide viewing angle/IPS
1024x768/XGA
Stable supply
HDMI board /Convert board
Wide temperature/-30℃~+85℃
High brightness/Sunlight readable/outdoor/600nits
Can custom capacitive touch screen
Get a Quote
Documentation
| Item | Shenzhen 12.1inch 1024x768 LCD display |
| Model No | PV012101LZR20B |
| Resolution | 1024x768 |

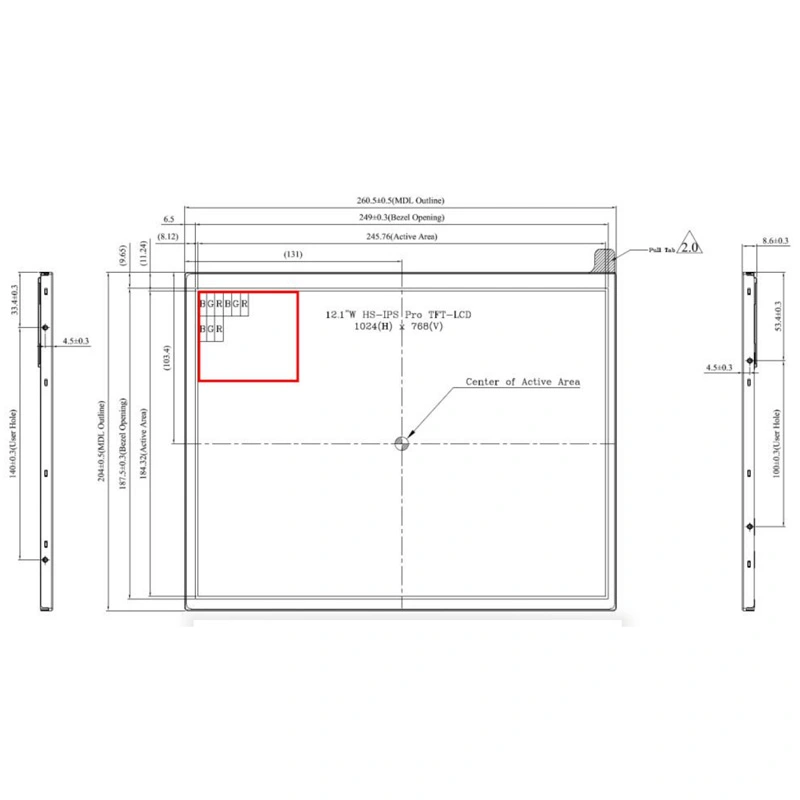

| Outline Dimension | 260(W)×204(H)×8.6(T) |
| Active Area(mm) | 245.76(W)×184.32(H) |
| Interface | LVDS |
| Brightness | 600nits |
| Viewing Angle | All |
| LED life | 50000h |
| Display Mode | TN / Transmissive / Normally Black |
| PIN | 20 |
| Operating Temperature | -30℃~85℃ |
| Storage Temperature | -30℃~85℃ |
| Board | Convert Board |
| Touchscreen | Can custom capacitive touchscreen |
The 10.4inch 1024x768 IPS TFT LCD display can be used for industrial controls, agricultural equipment, medical device, game console, outdoor and smart homes, etc.
