Kingtech PV05710W0233L is 5.7inch TFT colorful LCD module. Its viewing angle is 6 o'clock. The resolution is 320x240. It supports RGB interface.Its brightness can reach up to 800nits Typical. It is designed for outdoor application, industrial, test instruments etc.
Sunlight readable / High brightness / Outdoor / 800nits
5.7inch TN LCD
320x240dots / QVGA
Resistive touch and capacitive touch for optional
4:3
Get a Quote
Documentation

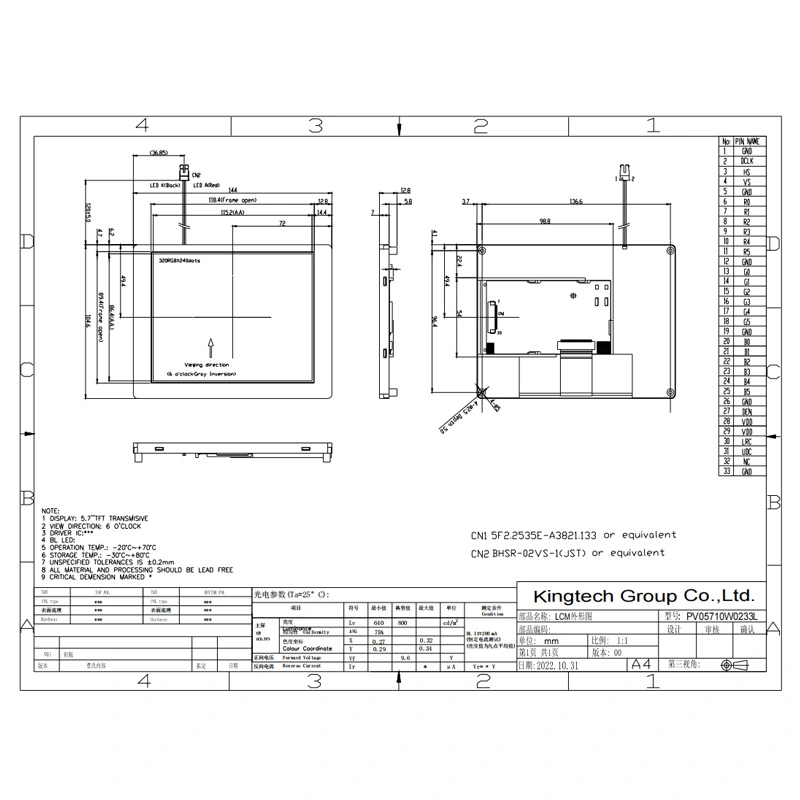

| Item | 5.7inch TN 320x240 QVGA LCD module |
| Model No. | PV05710W0233L |
| Resolution | 320*240 |

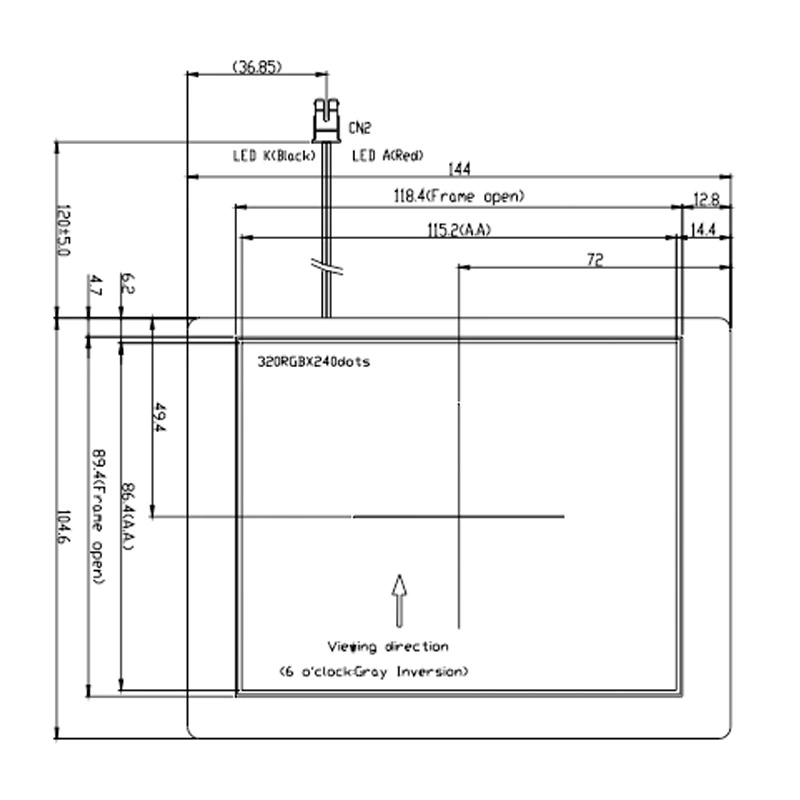

| Outline Dimension (mm) | 104.6*144.0*12.8 |
| Active Area (mm) | 115.2*86.4 |
| Viewing Angle | 6 O'clock |
| Brightness | 800nits |
| Interface | 18bit RGB |
| Backlight | / |
| Driving IC | / |
| PIN No. | 33pins |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch and resistive touch for optional |
| Application | Outdoor application,EV charger,Industrial,Communication equipment |
It is applicable for Medical, hand-held device, industrial, outdoor, advertising, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, charging piles/engineering vehicles/ships.
