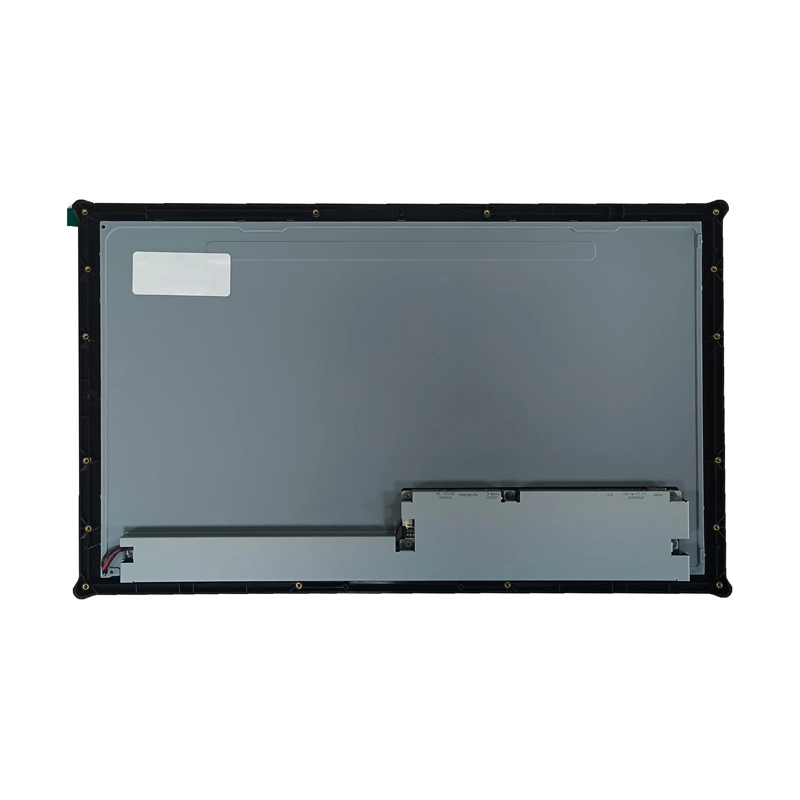

21.5 inch monitor

21.5” Full HD 1920*1080 monitor from KINGTECH.



PV215006D046G is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, P- cap touch panel , AD Board and LED backlight system. The screen format is intended to support the 16:9 Full HD, 1920(H) x1080(V) screen and 16.7M colors with LED backlight driving circuit.

It supports multi I/O type:DC12V 3A (DC Jack 5.5/2.1),Speaker, Key Board, HDMl, USB(Type-C).



Suitable for Commercial/Industrial/Medical applications


Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

Specification of 21.5 inch monitor


Item 21.5inch 16:9 Full HD 1920x1080 HDMI interface monitor
Model NoPV215006D046G
Resolution 1920*1080
Physical Dimension 524.55(H)x311.4(V)x12.6(T)(W/0 PCB side)23.15(PCB Side)
Active Area(mm)476.064(H)x 267.786(V)
Brightness300nits
Viewing AngleFree/IPS
I/ODC12V3A(DC Jack 5.5/2.1)
Speaker, Key Board, HDMl, USB(Type-C)
CTP Controller/Driver ILI2510
PIN/
Operating Temperature -0 to +60C
Storage Temperature -20 to +60C
Touch screenCapacitive touch


Features of 21.5 inch monitor

1. All/Free/Wide viewing angle/IPS

2. 16:9 Monitor

3. Full HD 1920*1080

4. Multi I/O available:

DC12V3A(DC Jack 5.5/2.1)

Speaker, Key Board, HDMl, USB(Type-C)

5. Capacitive Touch Panel

6. Suitable for Commercial/Industrial/Medical devices



Application of 21.5 inch monitor

  • This is a 21.5inch 16:9 Full HD 1920x1080 HDMI interface monitor

  • It is suitable for Commercial/Industrial/Medical applications.
