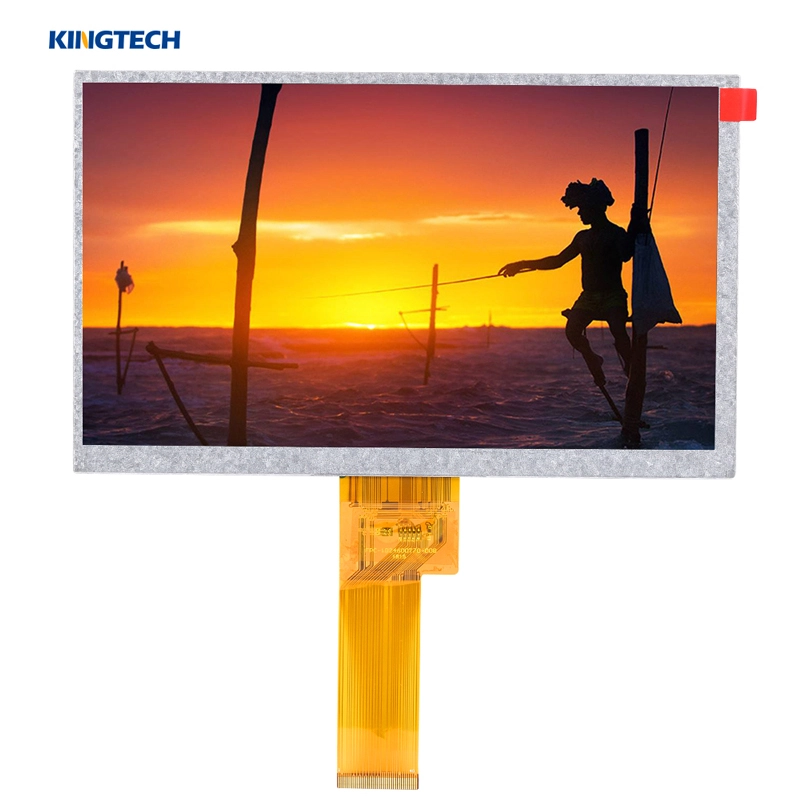

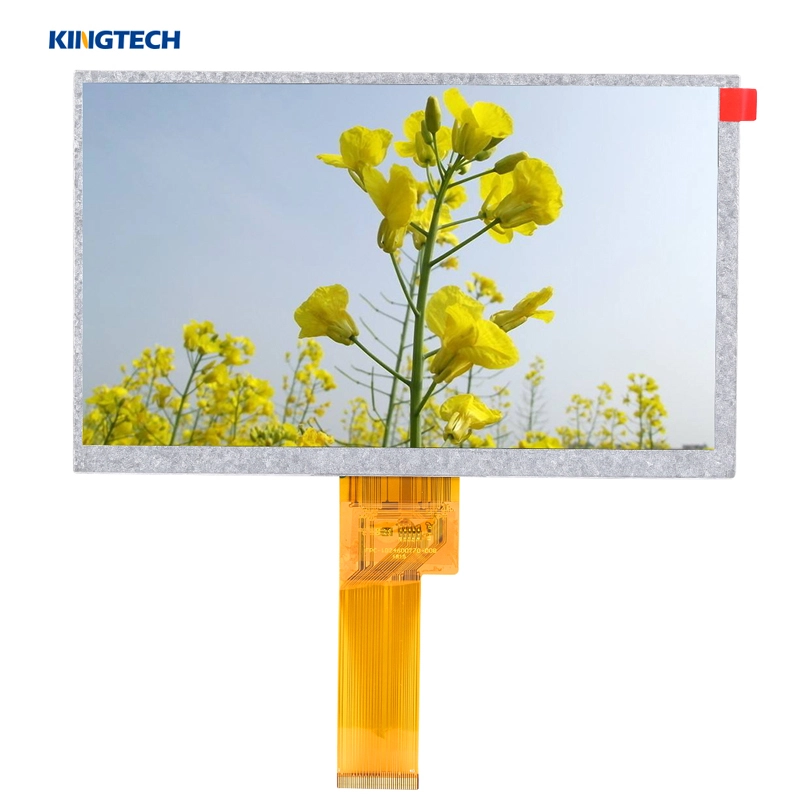

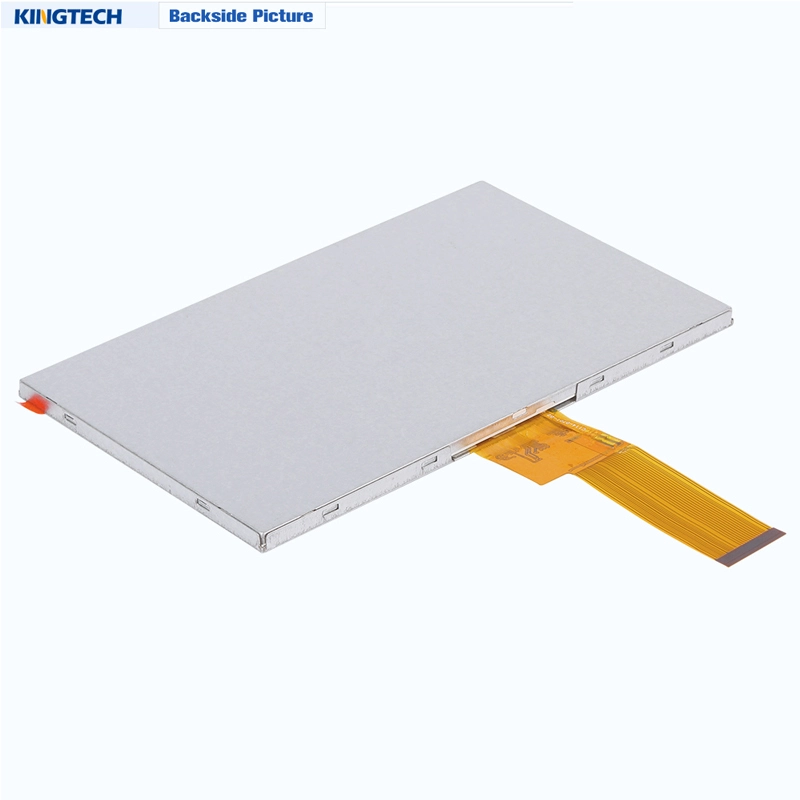

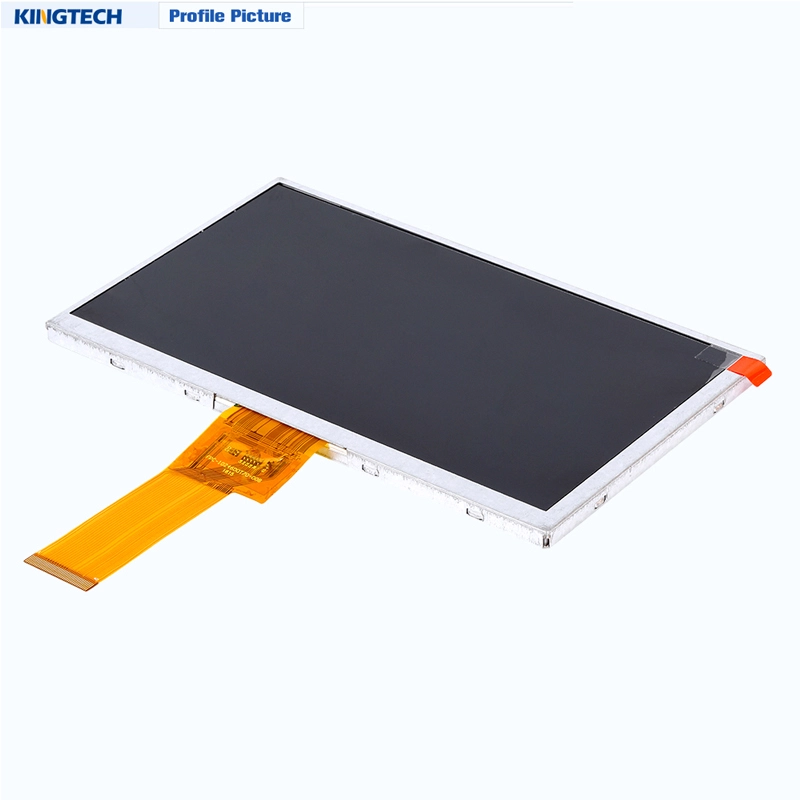

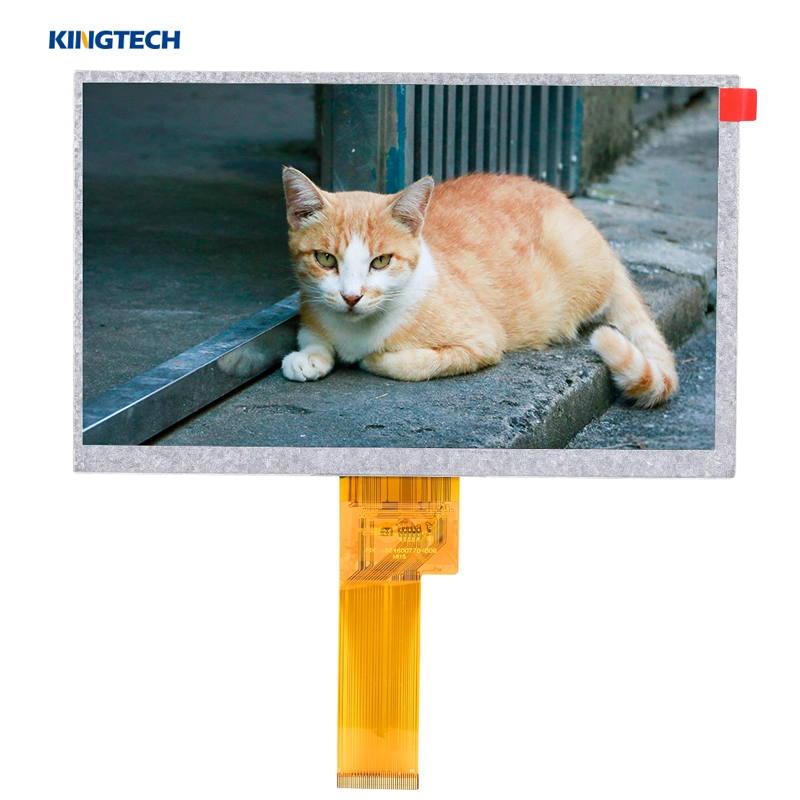

Kingtech PV08011Y0150L-CT is a 8.0inch LCD module using TN technology. Its LCD panel is with 800x600dots, the best viewing angle is 12 o' clock. The appearance of 4:3 is very harmony and comfortable. Its brightness can reach 850nits with a backlight 3*10LED, make the display sunlight readable. It is designed for outdoor application. It is with a compatible capacitive touch. Kingtech supports stable supply. And we support LCD display related customization, such as FPC, Backlight, Touch, driver board, etc.
Special resolution-8inch 800x600dots, SVGA
High brightness/Sunlight readable/1000nits/Outdoor
RGB, TTL, Digital interface
Designed for outdoor application
Get a Quote
Documentation
| Item | High brightness 8.0 inch TN LCD module with CTP |
| Model No. | PV08011Y0150L-CT |
| Resolution | 800*600 |
| Outline Dimension (mm) | 183*141*7.92 |
| Active Area (mm) | 162*121.5 |
| Viewing Angle | 12 O'clock |
| Brightness | 850nits |
| Interface | 24-bit Parallel RGB Interface |
| Backlight | 3*10LED |
| Driving IC | / |
| PIN No. | 50 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch and resistive touch optional. |
| Application | Outdoor application, Surveillance video, Transportation Camera, Automative, Self Service device, E-bike, Automotive. |
It is applicable for Outdoor application, Surveillance video, Transportation Camera, Automative, Self Service device, E-bike, Automotive, etc.
