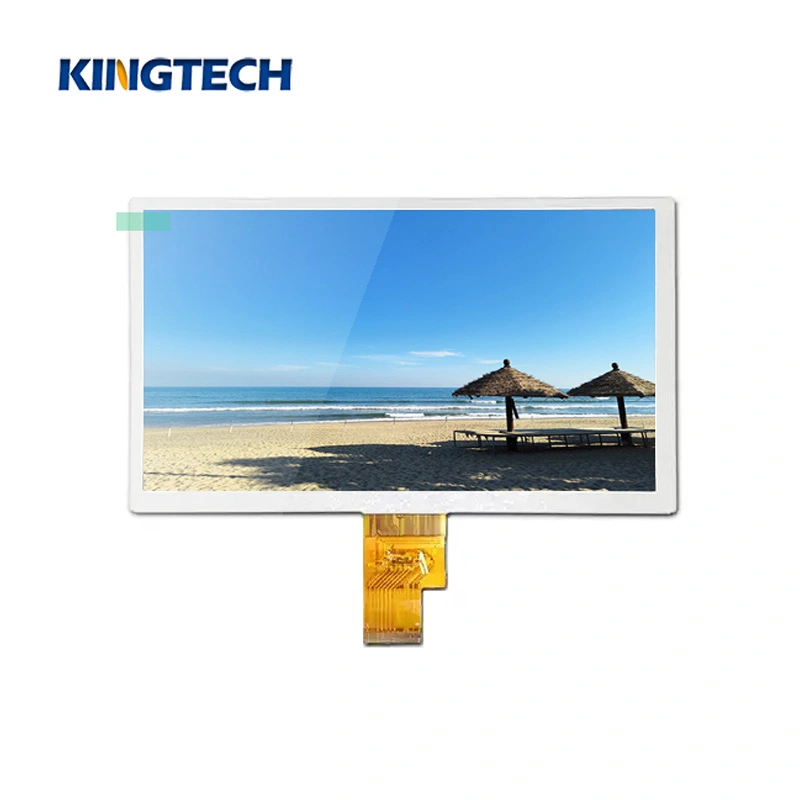

Kingtech PV08013Y0140N is a 8inch lcd display module. It is with a TN lcd panel, normally white, transmissive. It is landscape with 1024 x 600pixel. Its backlight has two options, one is with 3leds seriel in 10 parallel. Its brightness is 400nits. Its driver IC is to be defined with 40 pins, LVDS interface.
8.0 inch TFT LCD display
1024x600
Stable supply
6 o’clock
LVDS Interface
400 brightness
Touch Optional
Industrial application, and IOT, medical, automotive, home application, Security equipment
Get a Quote
Documentation
| Item | 8.0 inch TFT 1024x600 module display |
| Model No. | PV08013Y0140N |
| Resolution | 1024*600 |
| Outline Dimension (mm) | 192.8*116.9*6.40 |
| Active Area (mm) | 176.64*99.36 |
| Viewing Angle | 6 O‘clock |
| Brightness | 300nits |
| Interface | LVDS |
| Backlight | 3*10LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Support capacitive touch and resistive touch |
| Application | industrial application, and IOT, medical, automotive, home application, advertising display, measuring equipment. |
The 8.0 inch 1024x600 landscape TFT display module can be used for industrial application, and IOT, medical, automotive, home application, advertising display, measuring equipment.
