Kingtech PV05042H0540P-CT is 5.0inch transmissive TFT LCD module. It can work normally under -30-85C, designed for harsh outdoor environment. Its brightness is 1000nits, special backlight designed for outdoor application. Its viewing angle is All 80/80/80/80, IPS panel technology. The resolution is 800x480. It supports RGB 24bits interface, with 40pins standard, so its compatibility is very good. This specification is very hot selling one, suitable for Outdoor applications, such as motorcycle, Traffic cameras, Industrial PLC, Portable device, outdoor testing equipment, E-bike and EV-Chargers etc.
Sunlight Readable/ High brightness/ 1000nits/ Outdoor
Wide working temperature / -30-85C
Better compatibility with customer’s board, Standard RGB interface 40pins
Resistive touch, Capacitive touch optional
Get a Quote
Documentation
| Item | Wide Temperature high brightness 5.0IPS 800x480LCD with Capacitive touch |
| Model No. | PV05042H0540P-CT |
| Resolution | 800*480 |

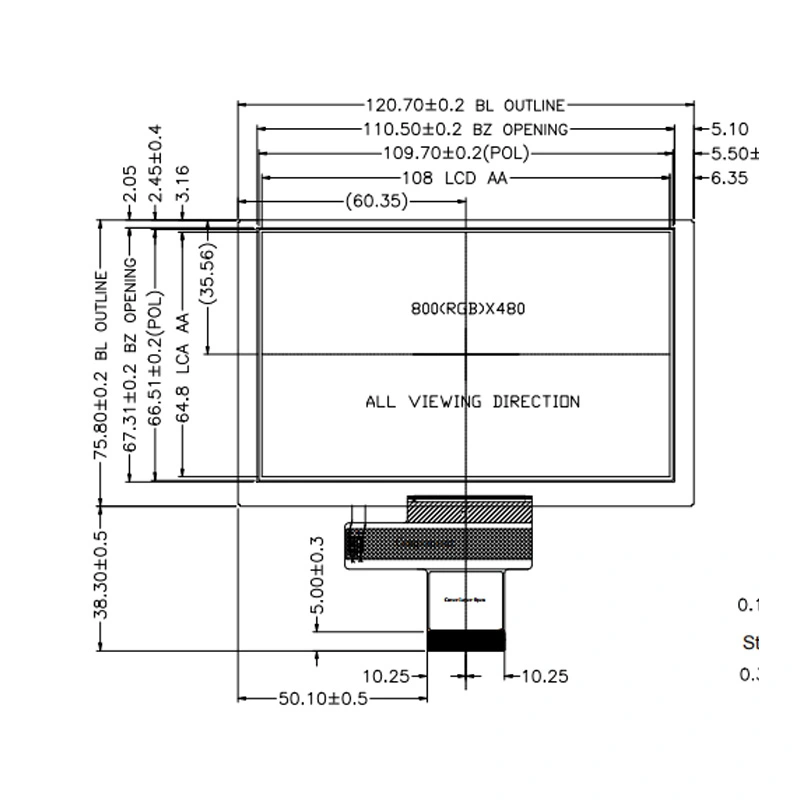

| Outline Dimension (mm) | 130.7*85.8*5.1 |
| Active Area (mm) | 108.00*64.80 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | RGB24bits |
| Backlight | 10*2 LEDs |
| Driving IC | ST72568 |
| PIN No. | 40 |
| Operating Temperature | -30~85C |
| Storage Temperature | -30~85C |
| Touch screen | Capacitive touch with FT5446U,I2C interface |
| Application | Outdoor application, handheld device, E-bike, Industrial PLC, Traffic camera, EV-chargers |
It is applicable for Outdoor applications, such as motorcycle, Traffic cameras, Industrial PLC, Portable device, outdoor testing equipment, EV-Chargers and E-bike etc.
