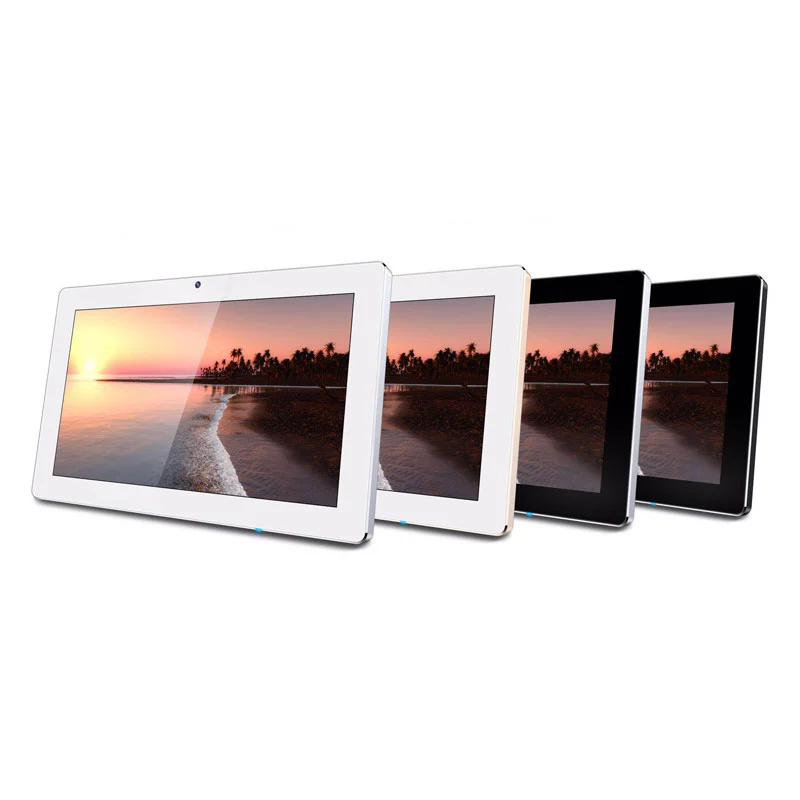

Kingtech 10.1 inch 1280*800 landscape touch monitor supply very stable. This 10.1 inch monitor supports USB/HDMI/RJ45/Earphone interface. In addition, the 10.1 inch monitor brightness is 250nits, and this 10.1 inch monitor is IPS / Free / Full / Wide viewing angle type. For the touch part, this 10.1 inch monitor is 10-Point capacitive touch.
Vertical screen
1280*800
Stable supply
TF card/USB/HDMI/RJ45/Earphone interface
IPS / Free / Full / Wide viewing angle
Capacitive touch
Get a Quote
| PRODUCT INFORMATION SHEET | ||
| Model No | PV101R3288A28 | |
| Product type | Android Touch | |
| Product Description | 10.1" with touch screen | |
| System | CPU | RK3288,Quad-core cortex A17,1.8GHz |
| RAM | 2GB | |
| Internal memory | 8GB | |
| Operation system | Android 5.1/7.1 | |
| Touch screen | 10-Point capacitive touch | |
| Display | Panel | 10.1"LED panel |
| Resolution | 1280x800 | |

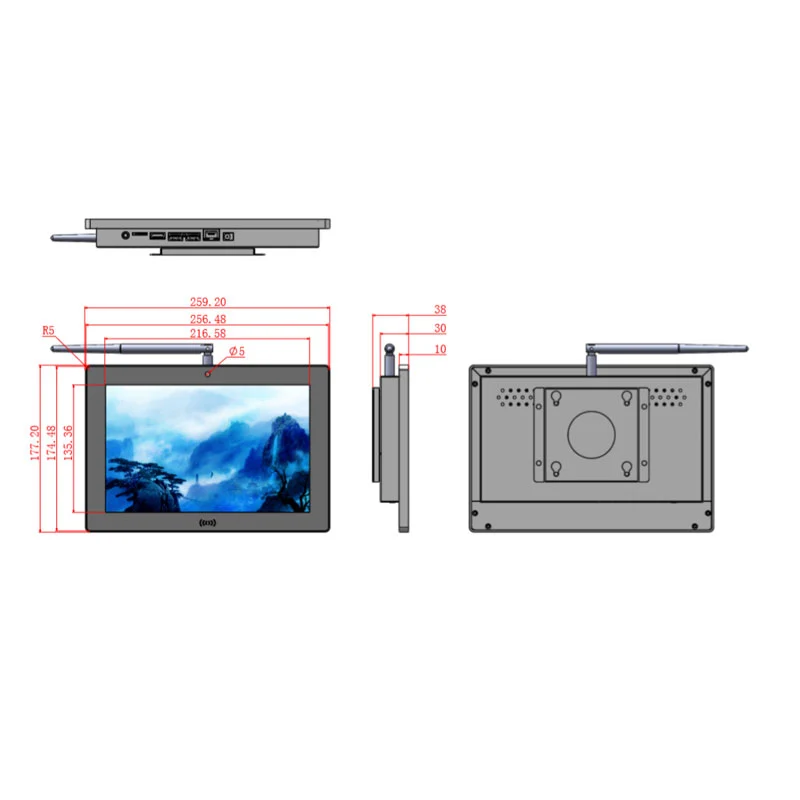

| Active area | 216.96(H) X 135.96(V) | |
| Display mode | Normally black , | |
| Viewing angle | 85/85/85/85(L/R/U/D) | |
| Contrast ratio | 600 | |
| Luminance | 250cd/m2 | |
| Aspect Ratio | 16:9 | |
| Network | WiFi | 802.11b/g/n |
| Ethernet | 10M/100M ethernet | |
| Interface | Card slot | TF card |
| USB x 2 | USB Host | |
| Micro USB | Micro USB OTG | |
| HDMI | HDMI output | |
| RJ45 | RJ45 | |
| Serial port | USB for serial port | |
| Power jack | DC power input | |
| Earphone | 3.5mm earphone | |
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4Kx2K(H.264) |
| Audio format | MP3/WMA/AAC etc. | |
| Photo | jpeg | |
| Other | Speaker | 2*2W |
| Power consumption | 20W | |
| Working temp | 0--40degree | |
| Certificates | CE/FCC/RoHS | |
| Language | Multi-language | |
| Accessories | Adapter | Adapter,12V/2A |
| User manual | yes | |
The 10.1inch 1280*800 IPS capacitive touch monitor can be used for agricultural equipment, medical device, game console and smart home etc.
