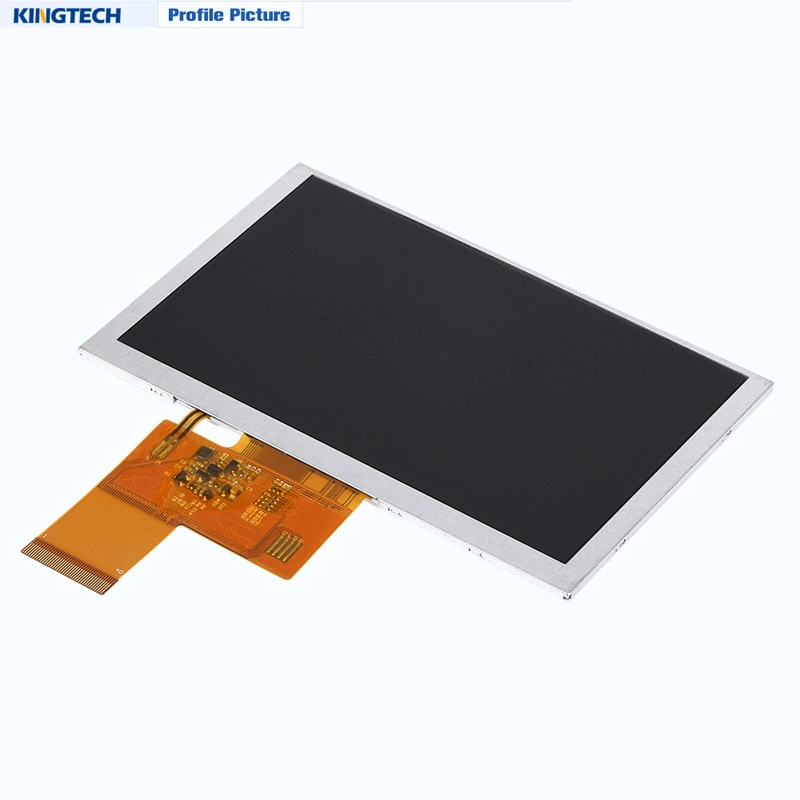

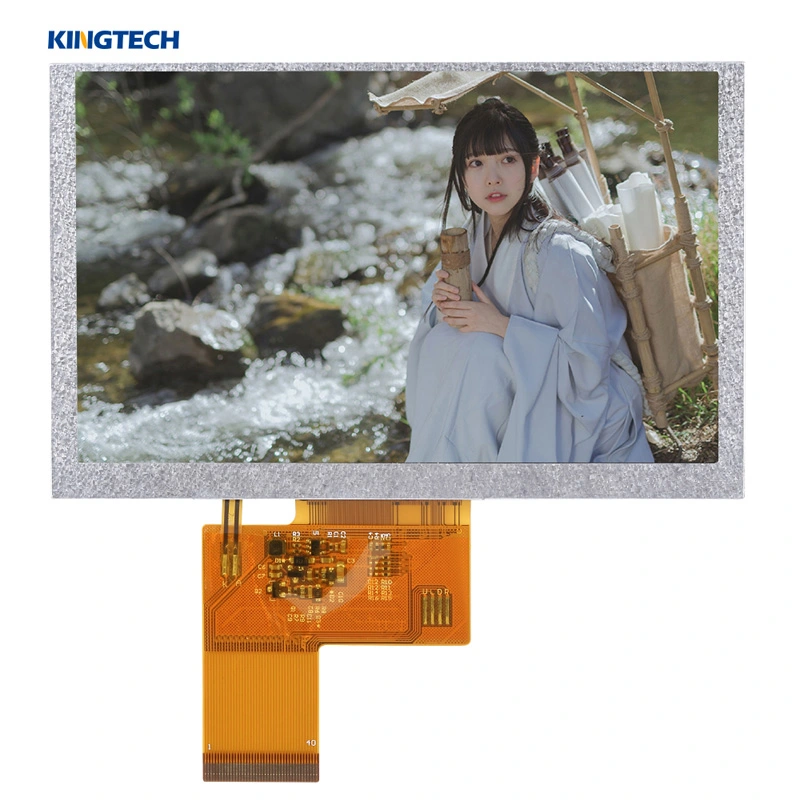

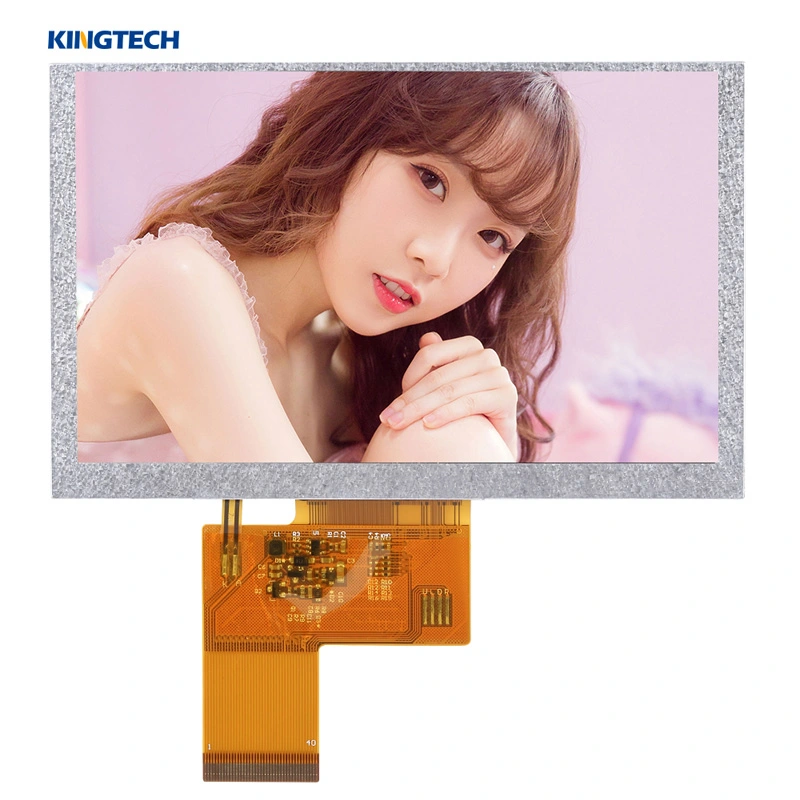

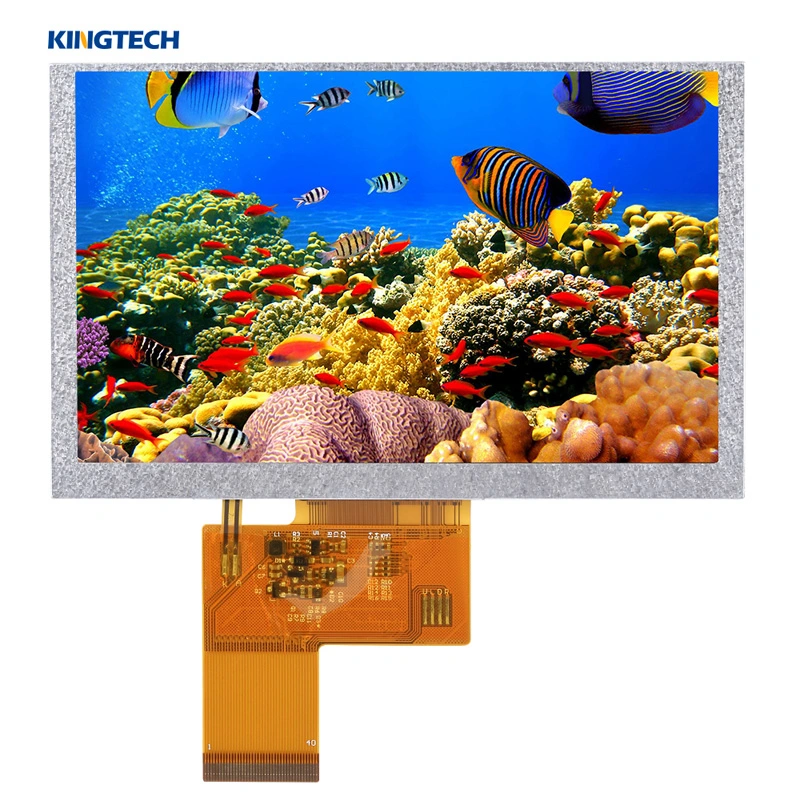

Kingtech 5 inch tft lcd display module is 800x480 typical resolutions and the interface is MIPI. It is with capacitive touch. It is full/wide/all/IPS viewing angle. The brightness is 400nits. It can be operated at temperatures from -20C to +70C. Its storage temperatures range from -30C to +80C.
It is matched with a HDMI board, support connect to device with HDMI port, windows, Linux or OS, Android system, such as PC, Raspberry PI, etc.
5.0 inch TFT display
800*480 /WVGA
Stable supply
Full/wide/all/IPS viewing angle
MIPI Interface
400nits brightness
With/Without Capacitive touch
Outdoor use: industrial application, and IOT, medical, automotive, home application.
Get a Quote
Documentation
| Item | 5.0 inch TFT 800x480 MIPI 2/4 lane module display |
| Model No. | PV05025Y0130W-CT |
| Resolution | 800*480 |
| Outline Dimension (mm) | 120.7*75.80*8.8 |
| Active Area (mm) | 108*64.8 |
| Viewing Angle | All |
| Brightness | 400nits |
| Interface | MIPI-2/4 lane Interface |
| Backlight | 8*3LED |
| Driving IC | ICN6211/FT5426 |
| PIN No. | 30 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Support capacitive touch screen |
| Board | Support HDMI board |
| Application | medical, automotive, industrial application, IOT, home application. |
The 5.0 inch 800*480 WVGA TFT display module with capactive touch can be used for industrial application, and IOT, medical, automotive, home application.
