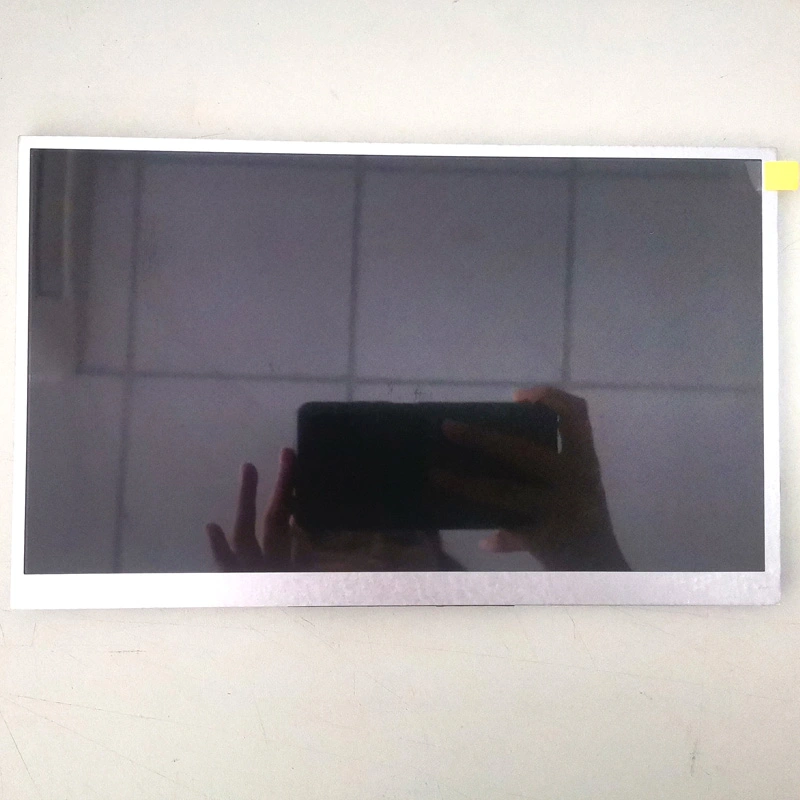

Kingtech 10.1 inch 1024*600 IPS LCD display supply is very stable. This 10.1inch display can support LVDS and RGB interface. In addition, the 10.1inch WSVGA TFT module has an existing HDMI Board and a capacitive touch panel. We can make the brightness of 1000nits sunlight-readable, and this 10.1-inch screen is All/Free/Wide viewing angle/IPS type. For the touch screen, brightness and interface, Kingtech can be custom-made according to your requirements.
All/Free/Full/Wide viewing angle/IPS
1024x600 / WSVGA
Stable supply
HDMI board / Convert board
Work temperature/-20℃~+70℃
High brightness/Sunlight readable/outdoor/1000nits
Can custom capacitive touch screen
Get a Quote
Documentation
| Item | 10.1inch 1024x600 LCD display |
| Model No | PV101017LZR50Q |
| Resolution | 1024x600 / WSVGA |

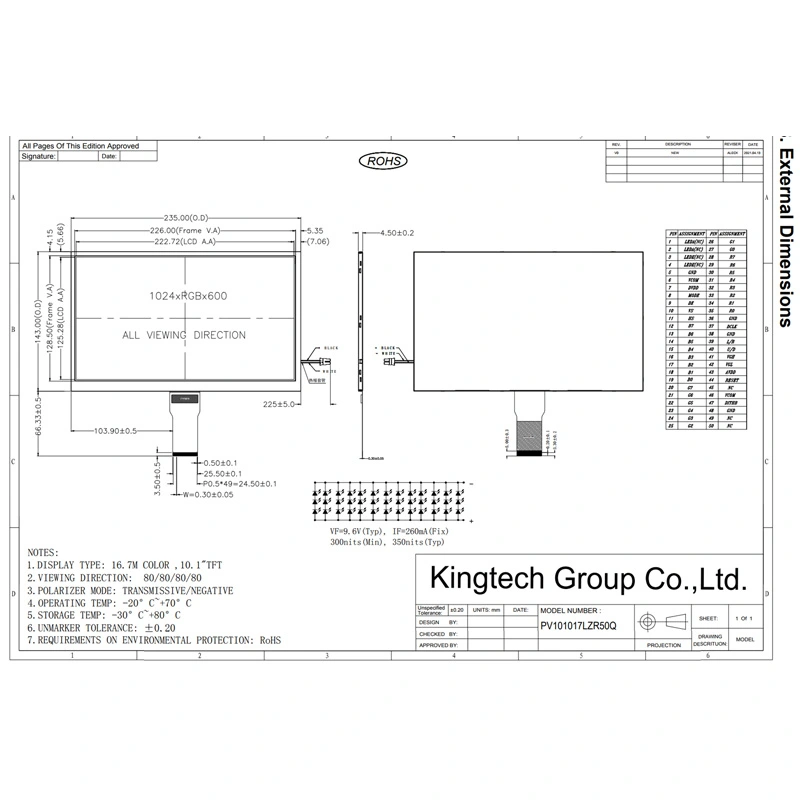

| Outline Dimension | 235(W)×143(H)×4.5(T) |
| Active Area(mm) | 222.72(W)×125.28(H) |
| Interface | RGB / TTL |
| Brightness | 300~1000nits |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | TN / Transmissive / Normally Black |
| PIN | 50 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Board | Convert Board |
| Touchscreen | Can custom capacitive touchscreen |
The 10.1inch 1024x600 IPS TFT LCD display is widely used for industrial and agricultural equipment, medical devices, game consoles, outdoor and smart homes, etc.
