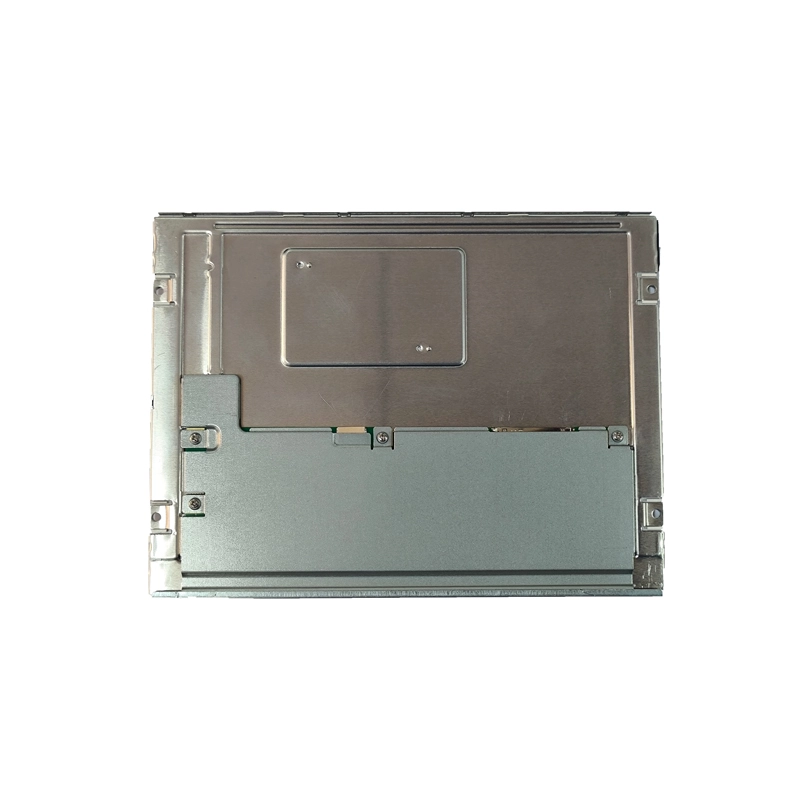

Kingtech PV084001D0120B is a 8.4inch LCD module. Its LCD panel is filled with wide temperature LCD crystal. Its working temperature is -30-80C. Its resolution is 1024x768dots. In backlight, it adopts 7S4P WLED, brightness can reach high to 1000nits. LED life time is 50K hours. Its viewing angle is All/full/free/Wide, you can see clearly no matter from which direction. It adopts LVDS interface.
Wide temperature,-30-80
High brightness, 1000nits, Sunlight readable, Outdoor

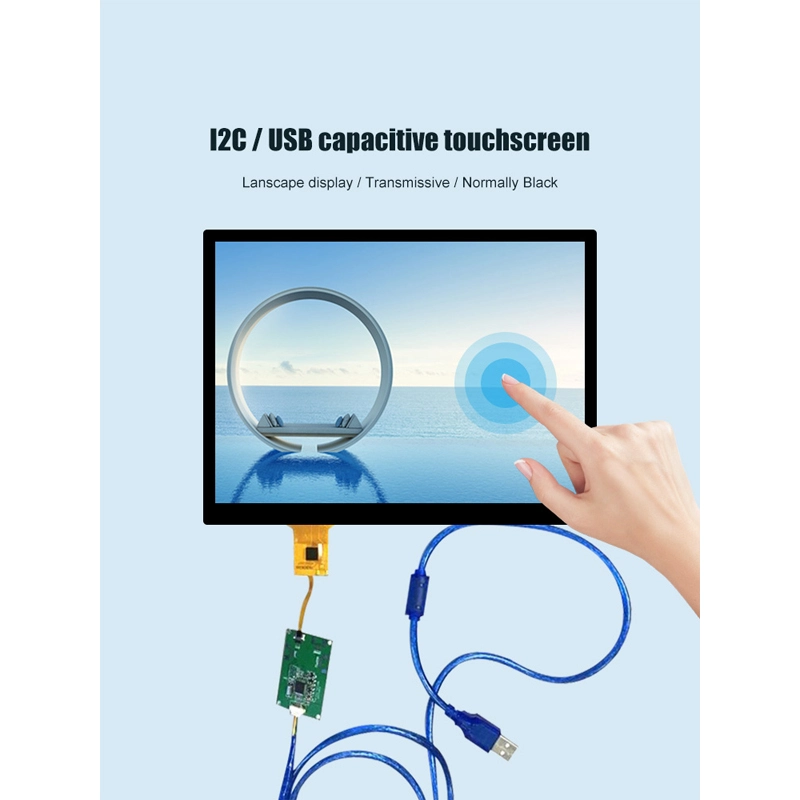

Touch is optional
Landscape, horizontal
XGA resolution
Life-time 50000h
Get a Quote
Documentation
| Item | 8.4 inch IPS 1024*768 LCD module |
| Model No. | PV084001D0120B |
| Resolution | 1024*768 |

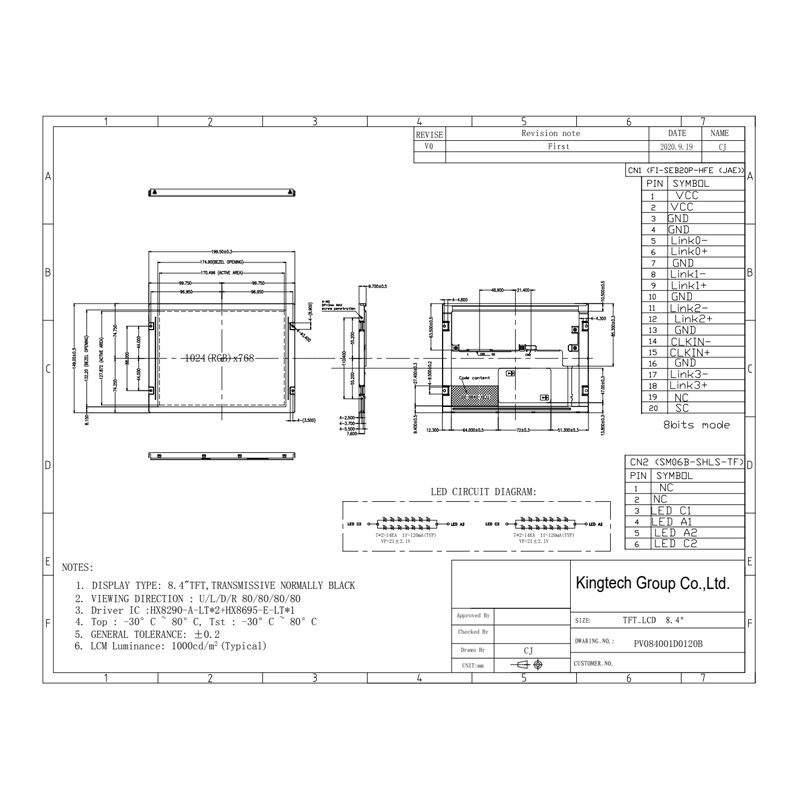

| Outline Dimension (mm) | 199.50*149.00*9.7 |
| Active Area (mm) | 170.496*127.872 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | LVDS |
| Backlight | 7*4LED |
| Driving IC | HX8290-A-LT*2+HX8695-E-LT |
| PIN No. | 20 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~80C |
| Touch screen | Optional |
| Application | Outdoor devices, marine/automative instruments, transportation, industrial, medical |
The 8.4inch XGA landscape TFT LCD module applicable for outdoor devices, marine/automotive instruments, transportation, industrial, medical, outdoor advertising, etc.
