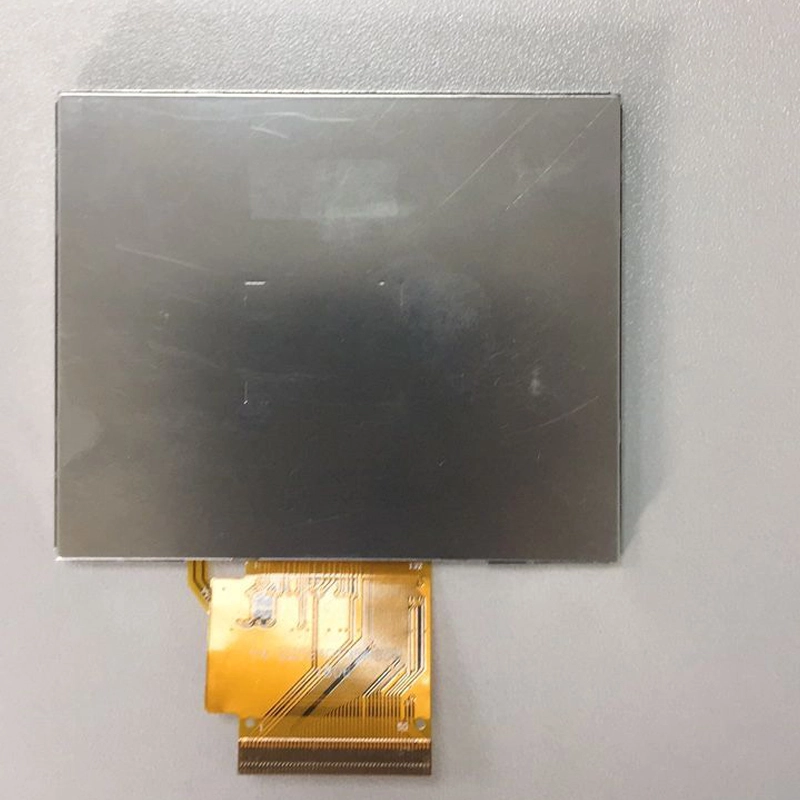

Kingtech 3.5inch 320x240 (QVGA) TFT LCD display is a special screen in the market, that's because this is the only one that can support SPI, RGB, and SPI interfaces LCD module. The 3.5inch SSD2119 driver IC module has a resistive touch and the touch can be customized according to customer requirements. This 3.5inch 12 o'clock TFT can be used for medical devices, handheld equipment, and others.
Kingtech Diaplay, as one of LCD display panel manufacturers, has achieved great progresses in the field of LCD production. Any requests will be welcomed.
320x240 / QVGA resolution
Landscape / Horizontal
MCU / RGB /SPI LCD module interface
Support resistive touch
Get a Quote
Documentation
| Item | 3.5 inch 320x240 TFT LCD display |
| Model No | PV03501LZR50C |
| Resolution | 320×240 |
| Outline Dimension | 76.90(W)×63.90(H)×3.26(T) |
| Active Area(mm) | 70.08(W)× 52.56(H) |
| Viewing Angle | 12 O'clock |
| Technology type | Transmissive |
| Interface | 4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit 6800/8080-series system interface 6-/9-/16-/18-bit RGB interface |
| Driving IC | SSD2119 |
| Display Mode | Normally White |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Brightness | 400nits |
| Touch screen | Resistive touch panel |
The 3.5inch 320x240 /QVGA 400nits TFT LCD display can be used for medical devices, handheld equipment, industrial control, POS machine, smart home, and a black box.
