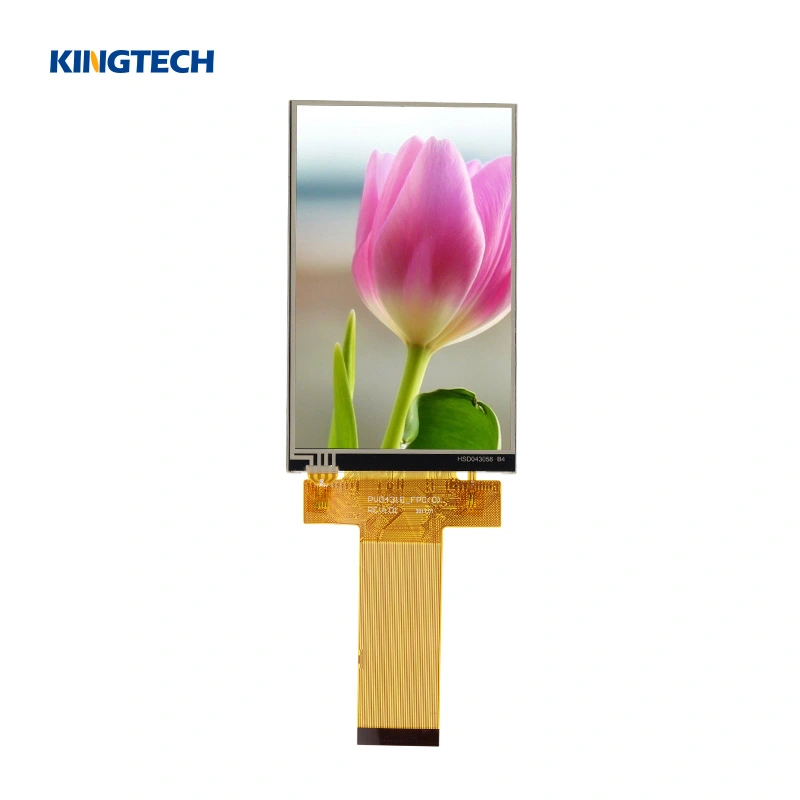

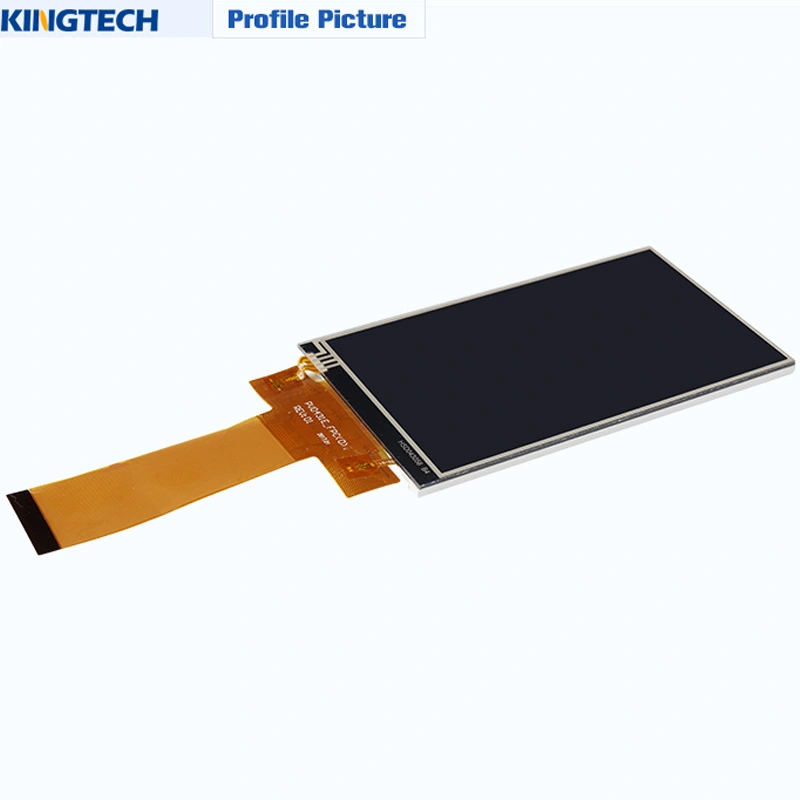

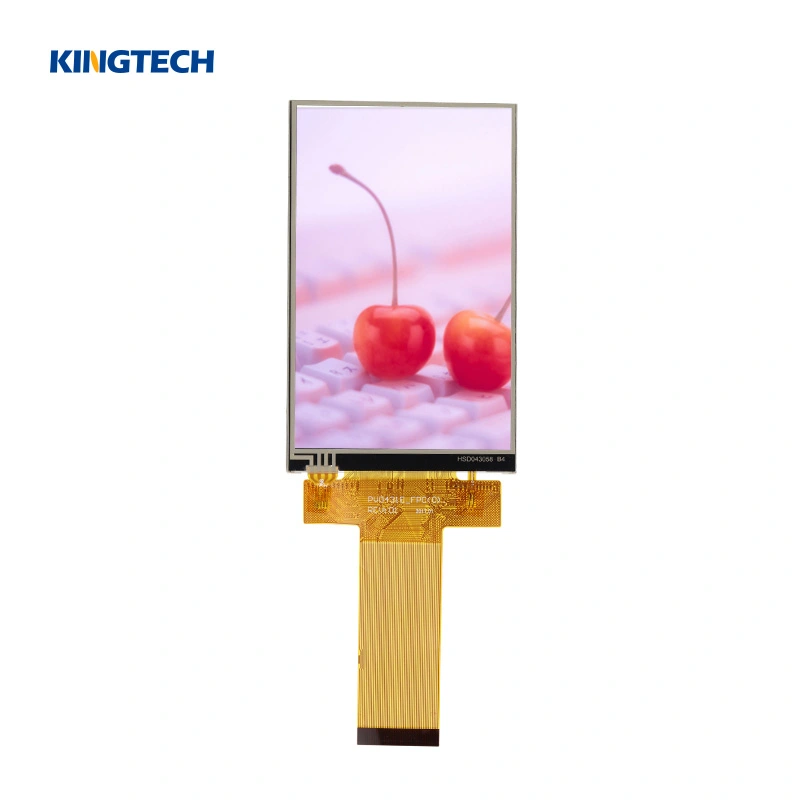

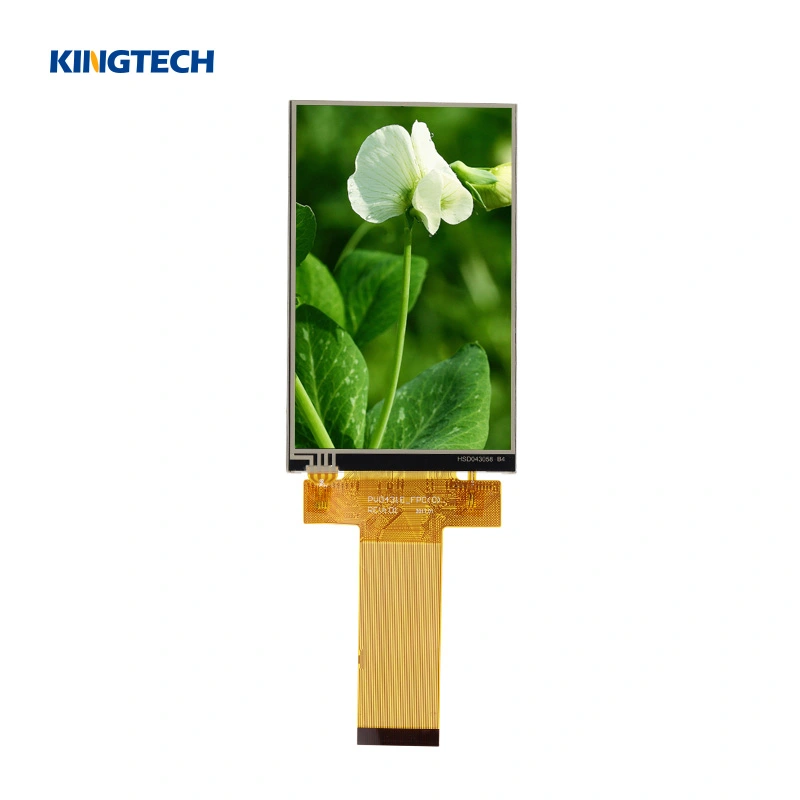

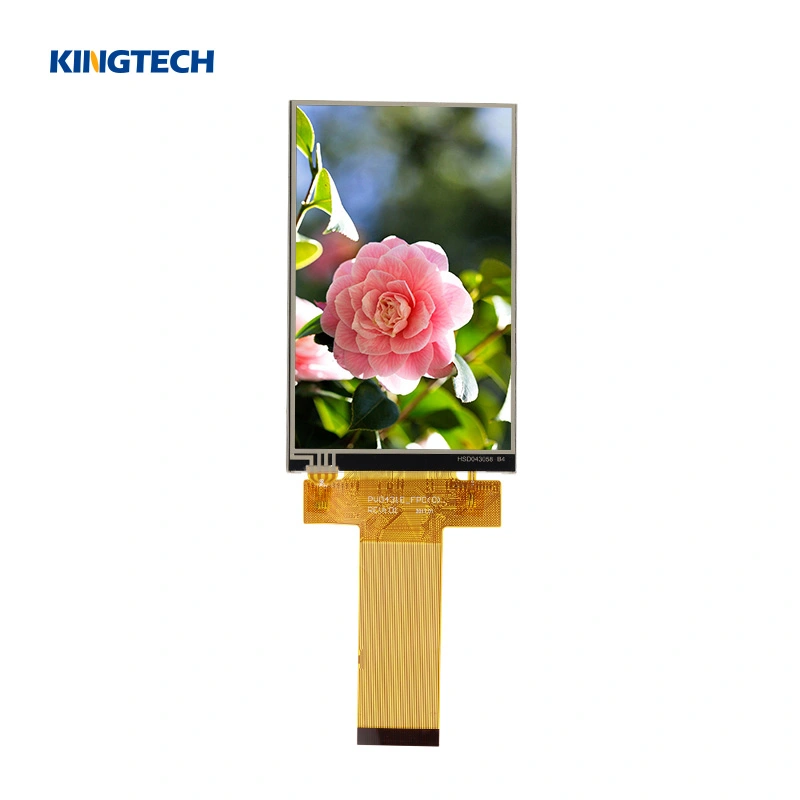

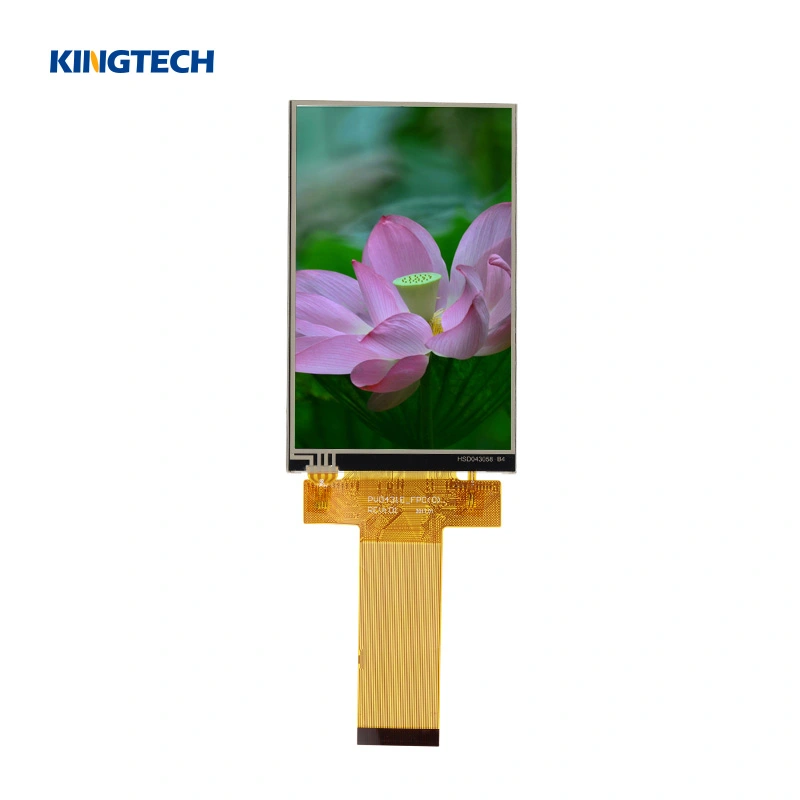

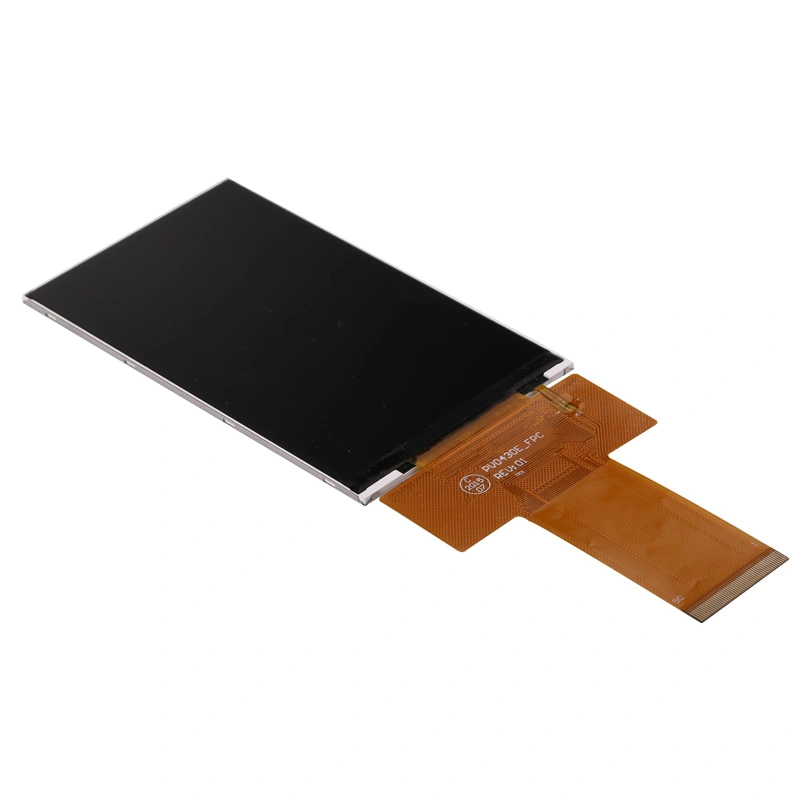

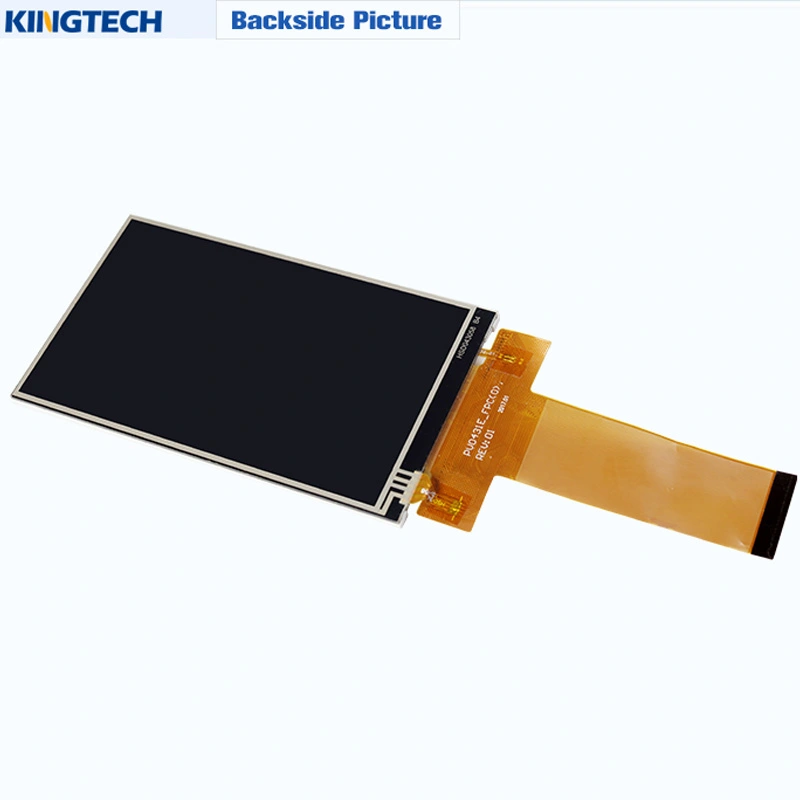

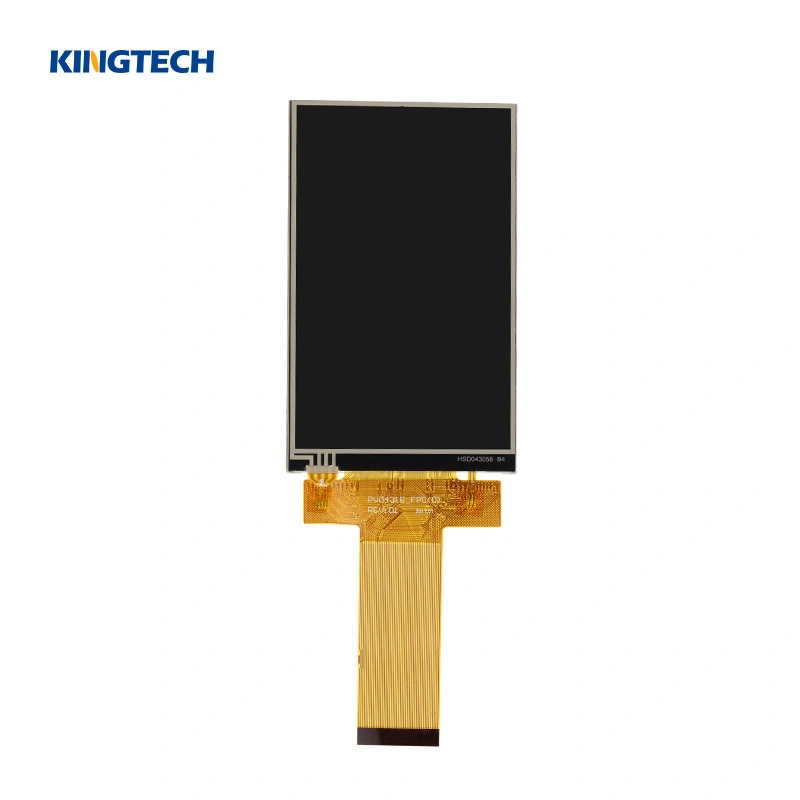

Kingtech 4.3 inch 480x800 IPS/free/all viewing angle TFT LCD display is our most leading product. This 4.3 inch LCD display is mainly used for blackbox, so this 4.3 inch TFT LCD display is very popular in Korea Market.

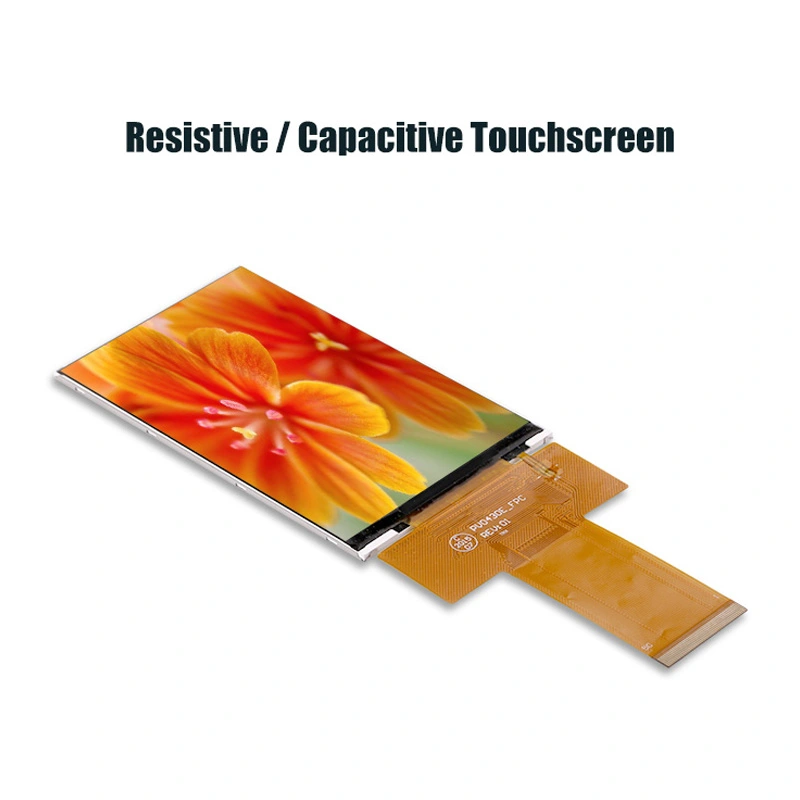

This 4.3inch IPS display has the existing resistive touch and TFT capacitive touchscreen, we can also custom the touch panel according to the customer's requirements. We can provide display LCD gps 4.3, mipi dsi 4.3 display and raspberry pi 4.3 TFT. Any requests for products will be welcomed in our Kingtech LCD.
This TFT 4.3-inch display has many features, as follows：
All/Free/Wide viewing angle
480x800 resolution
IPS TFT LCD display
3-wire SPI/4-wire SPI + RGB interface
Support resistive touch and capacitive touch
Get a Quote
Documentation
| Item | 4.3 inch IPS TFT module display |
| Model No | PV04303LZR50E-C |
| Resolution | 480*800 |
| Outline Dimension | 75(W)*120(H)*3.8(T) |
| Active Area(mm) | 56.16(W)*93.6(H) |
| Interface | 3-wire SPI/4-wire SPI + RGB interface |
| Viewing Angle | All |
| Driving IC | JD9161 |
| Display Mode | Transmission / Normally Black |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Brightness | 300nits |
| Touchscreen | Resistive / capacitive touchscreen |
The ips LCD 4.3 touch display can be used for medical devices, handheld equipment, industrial control, smart Home, POS machine, and the black box.
