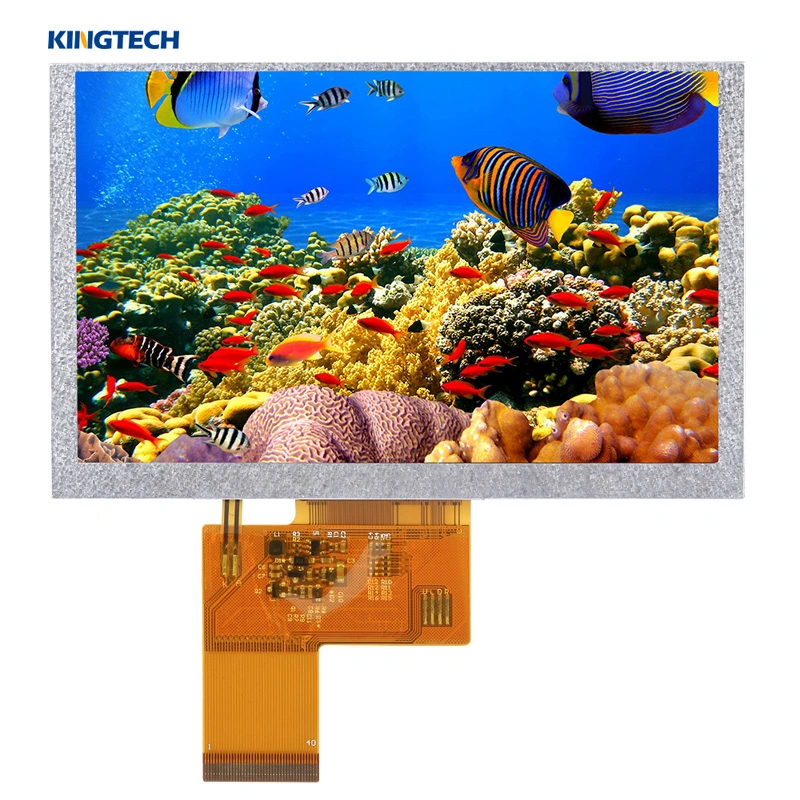

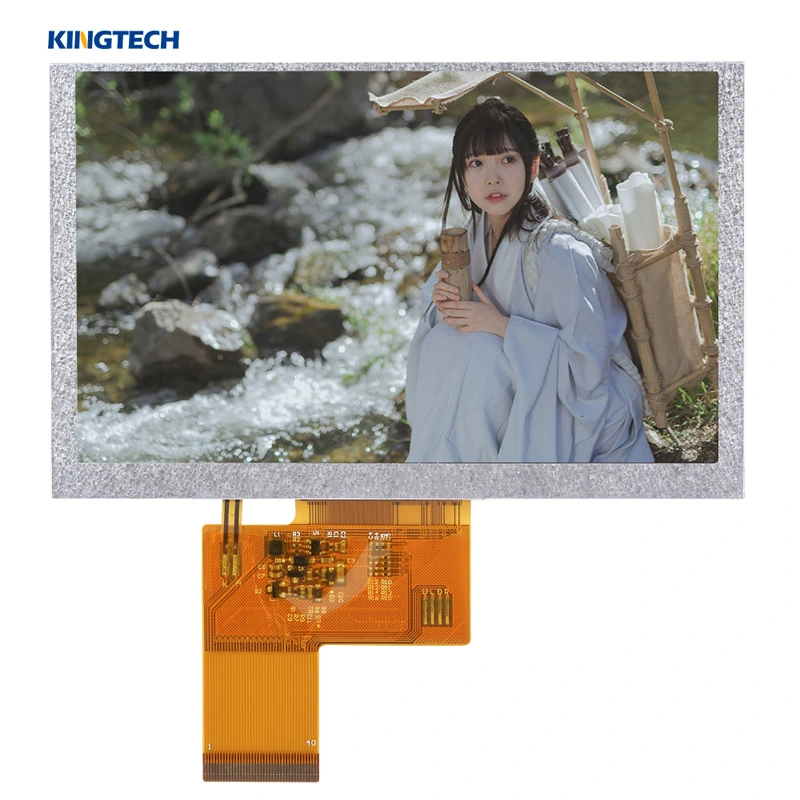

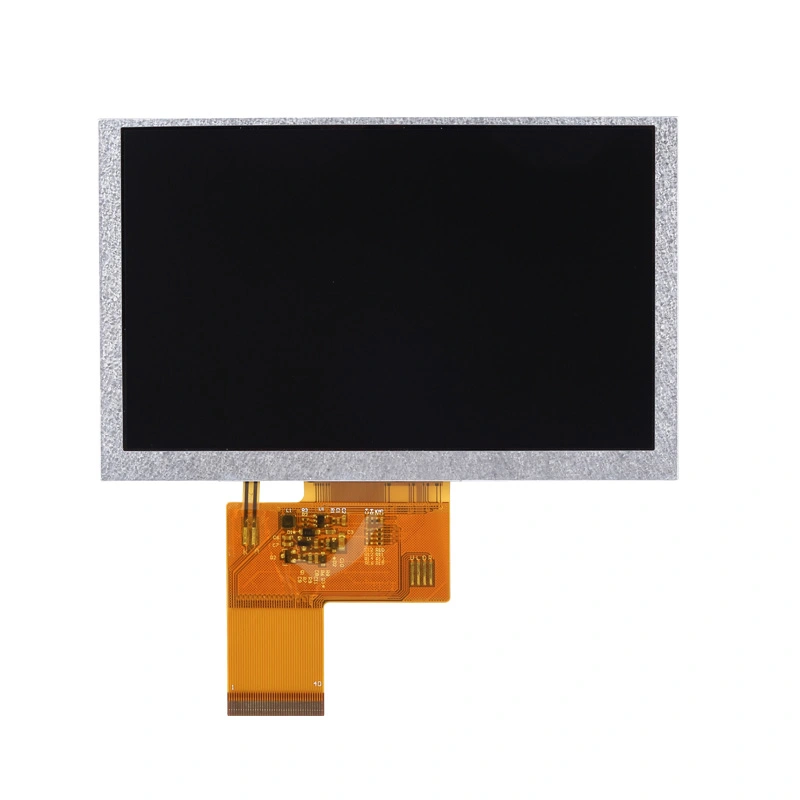

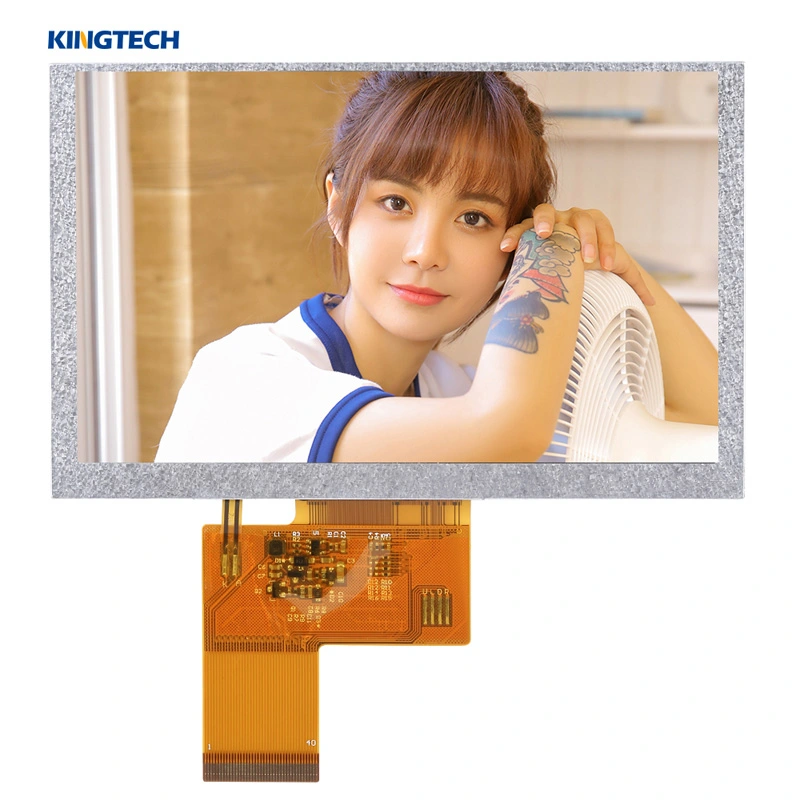

Kingtech PV05034H0140F is a 5.0 inch LCD module using IPS TFT-LCD technology. Its LCD panel is 800x480dots/WVGA, providing a very clear and vivid image. With Full Viewing angle, you can see clearly the display from different direction. It support RGB interface. Kingtech 5inch WVGA display supports stable supply. And we support LCD display related customization, such as FPC, Backlight, Touch panel, driver board, etc.
Landscape
WVGA
Standard size and resolution, commonly used
40pins RGB interface very standard configuration
Full/IPS/Free/Wide/All Viewing angle
Get a Quote
Documentation
| Item | 5.0 inch IPS 800x480 LCD module |
| Model No. | PV05034H0140F |
| Resolution | 800*480 |
| Outline Dimension (mm) | 120.70*75.80*2.8 |
| Active Area (mm) | 108.00*64.80 |
| Viewing Angle | All |
| Brightness | / |
| Interface | RGB |
| Backlight | 6*3LED |
| Driving IC | ST7262 |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Support resisive touch and capacitive touch |
| Application | Medical, industrial control, Meter, measuring equipment, handheld device |
It is applicable for medical, industrial control, Meter, measuring equipment, hand-held device, POS device etc, E-bike.
