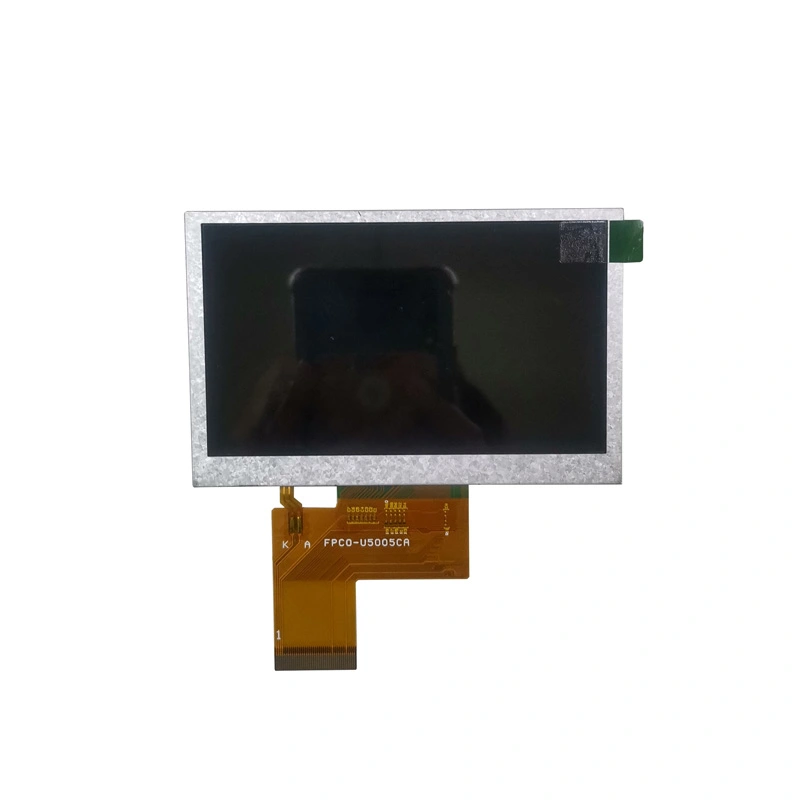

Kingtech 4.3 inch 800x480 LCD display supply is very stable. This 4.3-inch module supports the RGB interface. In addition, the 4.3inch WVGA LCD with ST7262 driver IC. This 4.3inch TFT is IPS/full/ all /wide viewing angle. For the touch part, Kingtech can custom the touch according to the customer's requirements.
IPS/Full/All/Wide viewing angle /Normally black
800x480/WVGA resolution
ST7262 IC
RGB interface
Can custom capacitive /resistive touch panel as customer's request
Get a Quote

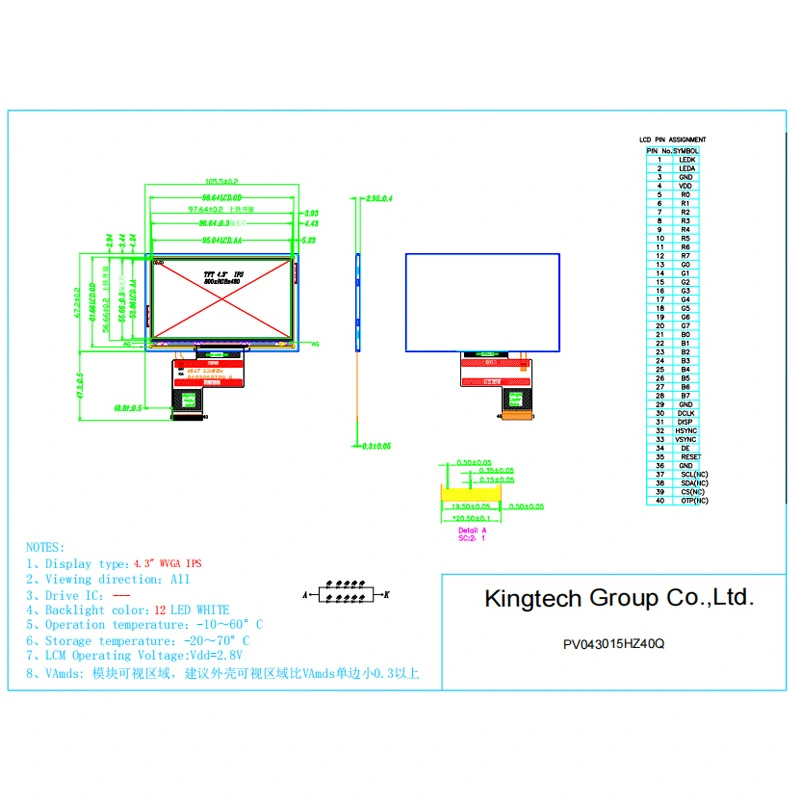

Documentation
| Item | 4.3 inch 800x480 RGB interface lcd module |
| Model No | PV043015HZ40Q |
| Resolution | 800x480 |
| Outline Dimension | 105.5*67.2*2.95 |
| Active Area(mm) | 95.05*53.86 |
| Interface | RGB |
| Driver IC | ST7262 |
| Brightness | 250nits |
| Viewing Angle | IPS |
| LED life | 30000h |
| Display Mode | Transmissive / Normally black |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Can custom capacitive/resistive touchscreen |
The 4.3 inch 800x480 LCD module can be used for agricultural equipment, medical device, game console, and smart home, etc.
