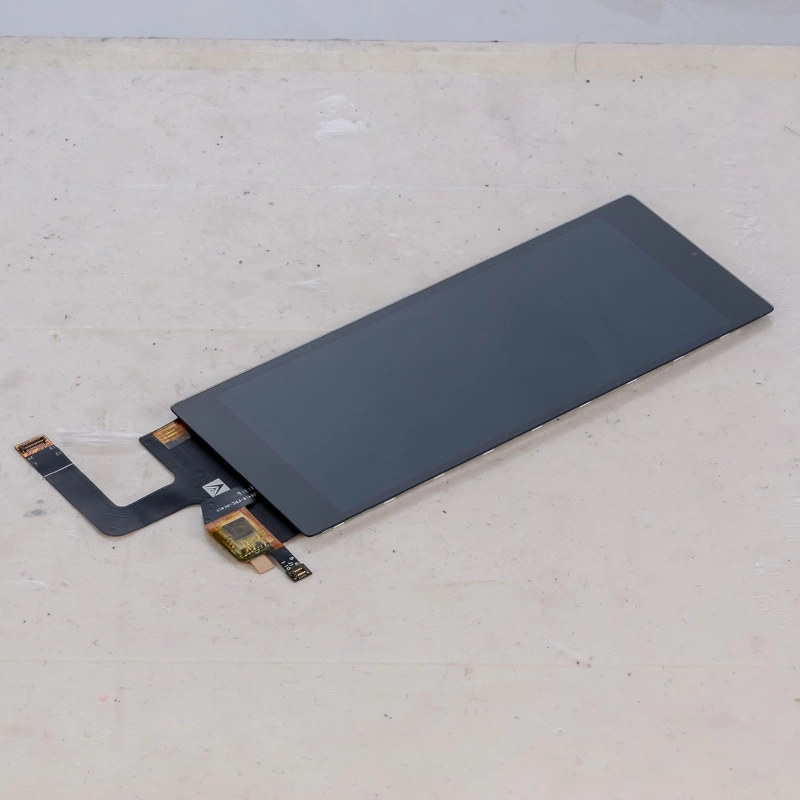

Kingtech 4.82 inch 480*1120 bar type TFT LCD display supply very stable. This 4.82 inch supports the MIPI VDIEO MODE 2LANE interface. In addition, the 4.82inch IPS display used HX8389C driver IC and the 4.82inch is IPS/full/ all /wide view angle. For the touch part, Kingtech can custom the touch according to the customer's requirements.
IPS/Full/All/Wide viewing angle
480x1120 resolution
Bar type display
HX8389C IC
MIPI VDIEO MODE 2LANE interface
Can custom capacitive and resistive touch panel as the customer's request
Get a Quote

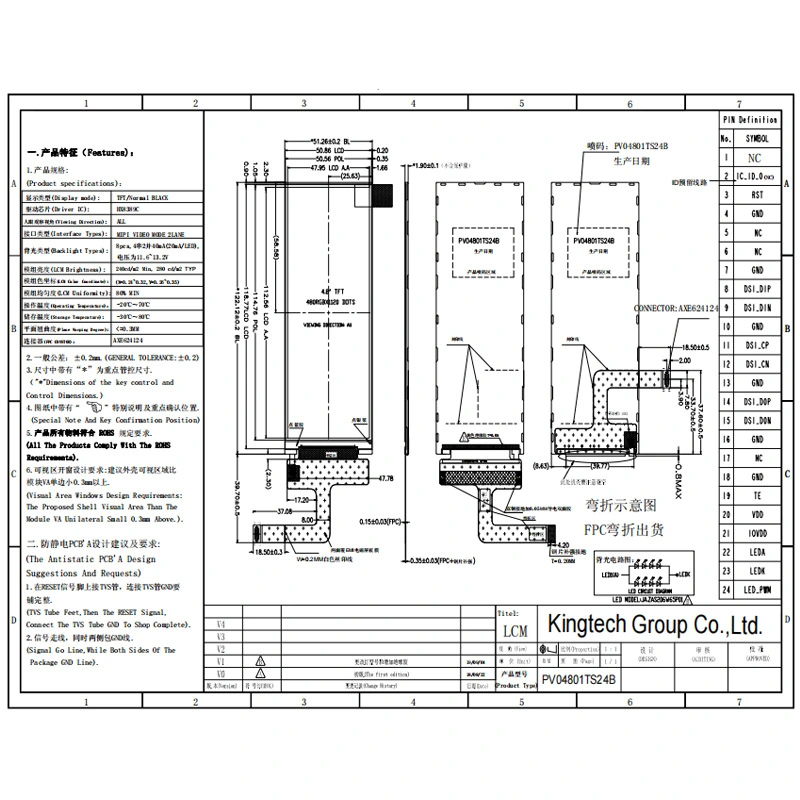

Documentation
| Item | 4.82 inch IPS 480*1120 MIPI interface LCD module |
| Model No | PV04801TS24B |
| Resolution | 480*1120 |
| Outline Dimension | 51.26*122.12*1.90 |
| Active Area(mm) | 47.95*112.56 |
| Interface | MIPI VIDEO MODE 2LANE |
| Brightness | 280nits |
| Viewing Angle | IPS |
| LED life | 50000h |
| Display Mode | Transmissive |
| PIN | 24 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Can custom capacitive/resistive touchscreen |
The 4.82-inch 480x1120 bar-type LCD module can be used for agricultural equipment, medical device, game consoles Smart Home and Industrial, etc.
