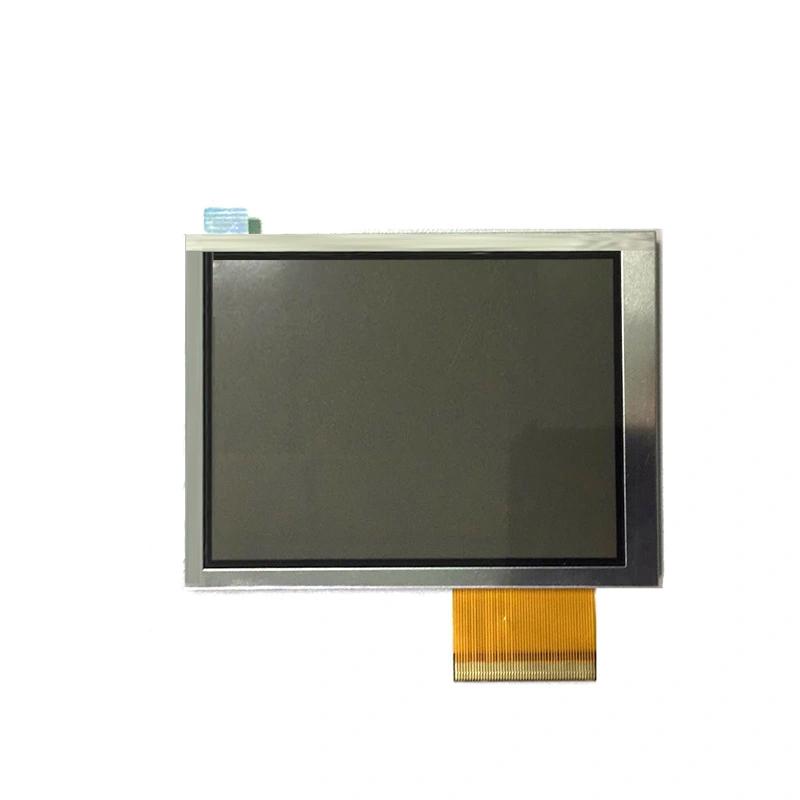

Kingtech 3.5inch 240x320 TFT LCD display supply is very stable. This 3.5inch supports SPI+ 18 BIT interface. In addition, the 3.5inch QVGA TFT is transflective, it can be sunlight readable. The 3.5inches module has existing resistive touch, and also can custom resistive touch and capacitive touch according to the customer requirements. The 3.5inch vertical 262K color LCD screen can be used in medical, industrial, hand-held, e-bike, outdoor, and others.
262K / TFT LCD / 6 o’clock
240x320 / QVGA
Vertical / Portrait
Transflective
High brightness / Outdoor / Sunlight readable / 180nits
Stable supply
Have exsiting resistive touch
Can custom resistive and capacitive touch screen
Can be used for medical, industrial, hand-held, e-bike and others.
Get a Quote
Documentation

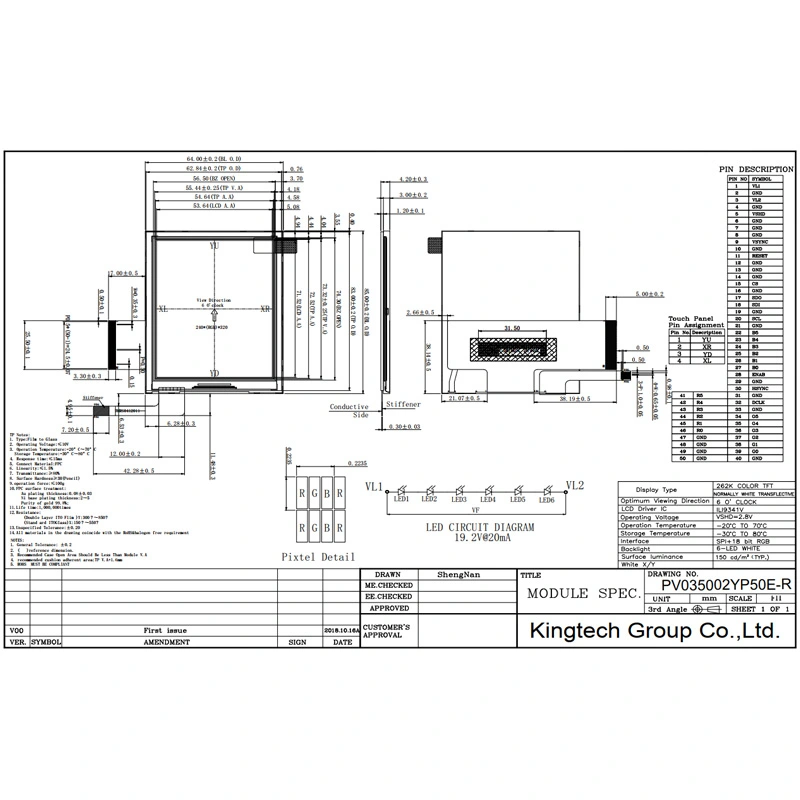

| Item | 3.5inch 240x320 transflective LCD screen |
| Model No | PV035002YP50E-R |
| Resolution | 240x320 |
| Outline Dimension | 64(W)× 85(H)× 3.0(T) |
| Active Area(mm) | 53.64(W)× 71.52(H) |
| Interface | SPI+ 18 BIT RGB |
| Driver IC | ILI9341V |
| Viewing Angle | 6 o'clock |
| LED No. | 6*1 LEDs |
| Display Mode | 262K color TFT / Transflective / Normally white |
| PIN | 50 |
| Brightness | 150nits |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Resistive touch |
The 3.5inch QVGA transflective TFT LCD display module can be used for medical, industrial, hand-held, e-bike, POS machines, E-bike, outdoor, and others.
