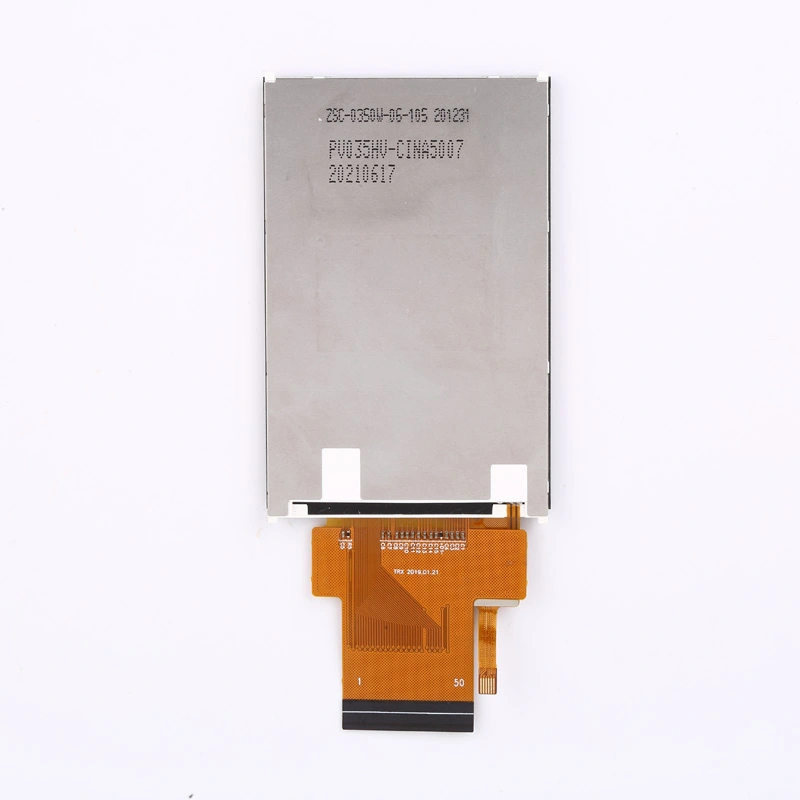

Kingtech 3.5inch 320x480 TFT LCD display supply is very stable. This 3.5inch supports 24BIT RGB interface. In addition, the 3.5inch IPS TFT has exsiting resistive touch and capacitive touch, The 3.5inch vertical all viewing angle display can support SPI, MCU and RGB interfaces. The 3.5inch full viewing angle portrait LCD screen can be used in medical, industrial, hand-held, e-bike, the elevator and others.
TN / Transmission/Normally Black
IPS/All/Wide viewing angle/Full viewing angle
320x480
Vertical/Portrait
Life-time 30000h
Support RGB, MCU, and SPI interfaces
Stable supply
Have exciting resistive and capacitive touch screen
Can custom resistive and capacitive touch screen
Can be used for medical, industrial, hand-held, e-bike, elevator, and others.
Get a Quote
Documentation

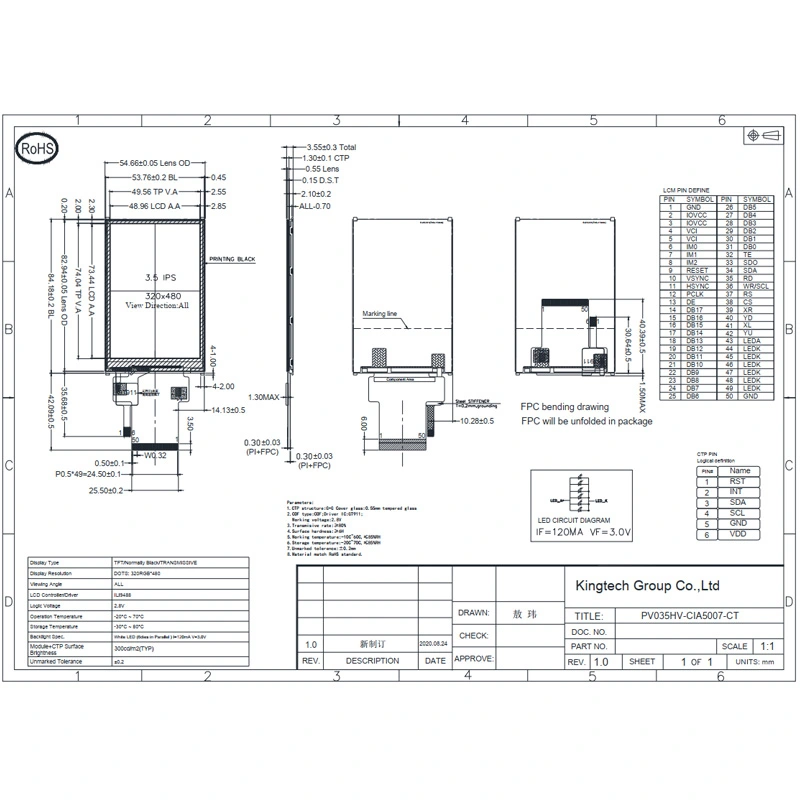

| Item | Shenzhen 3.5inch 320x480 IPS TFT module |
| Model No | PV035HV-CIA5007-CT |
| Resolution | 320x480 |
| Outline Dimension | 54.66(H)×84.18(W)×3.55(T) |
| Active Area(mm) | 48.96(H)× 73.44(W) |
| Interface | 8-/ 9-/16-/18- 8080-MCU 4-lines / 3-lines SPI + 16-/18-bit RGB |
| Driver IC | ILI9488 |
| CTP driver IC | GT911 |
| Viewing Angle | All |
| LED No. | 1*6 LEDs |
| Display Mode | TN / Transmission / Normally Black |
| PIN | 50 |
| Brightness | 350nits |
| Life-time | 30000h |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Support resistive touch and capacitive touch |
The 3.5inch 320x480 IPS LCD display module can be used for medical, industrial, hand-held, e-bike, POS machines, E-bike, the elevator, and others.
