Kingtech 3.2inch 240x320 TN LCD display supply is very stable. This 3.2inch supports SPI+18-BIT RGB/MCU interfaces. In addition, the 3.2inch QVGA TFT module can custom resistive touch and capacitive touch according to the customer requirements. The 3.2inch vertical LCD screen module can be used in medical, industrial, hand-held, e-bikes, and others.
TFT LCD / 12 o’clock
240x320 / QVGA
Vertical / Portrait
Stable supply
Life-time 50000h
Can custom resistive and capacitive touch screen
Can be used for medical, industrial, hand-held, e-bike, and others.
Get a Quote
Documentation
| Item | Kingtech 3.2inch 240x320 TFT LCD display |

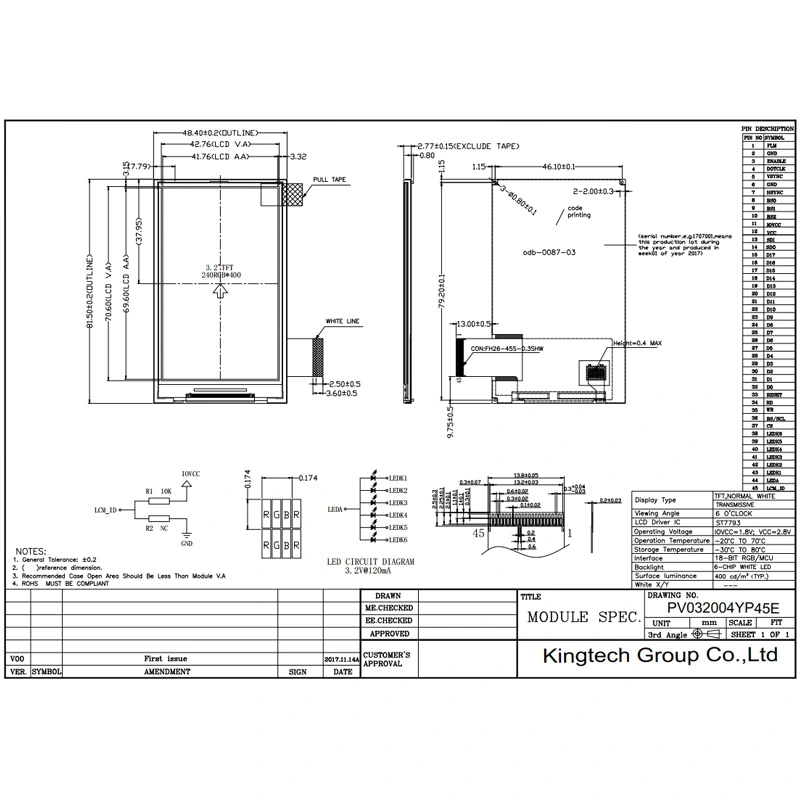

| Model No | PV032004YP45E |
| Resolution | 240x320 |

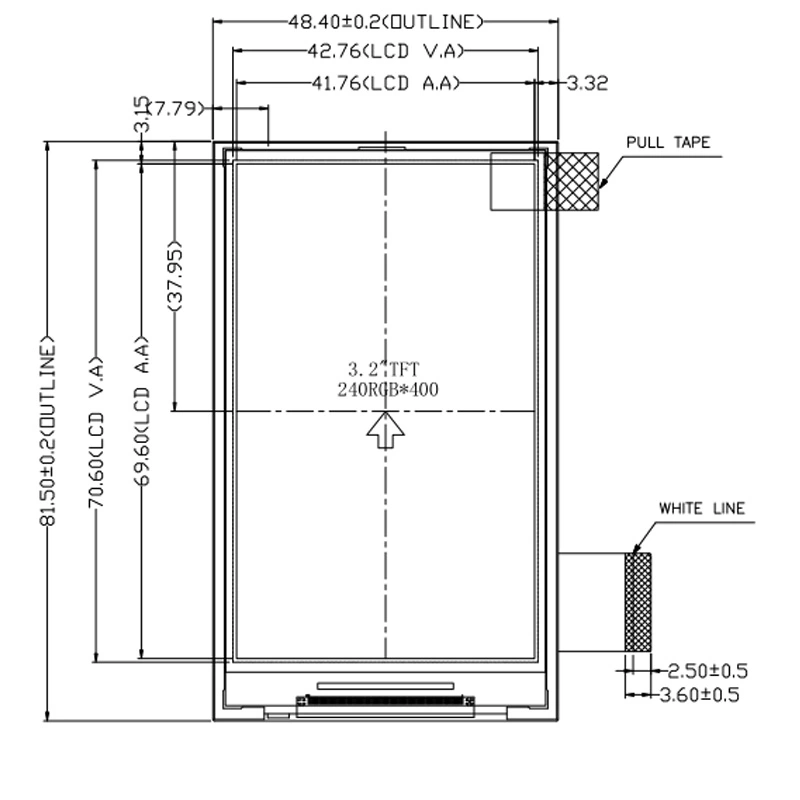

| Outline Dimension | 48.40(W)× 81.50(H)×2.77(T) |
| Active Area(mm) | 41.76(W)× 69.60(H) |
| Interface | SPI+18-BIT RGB/MCU |
| Driver IC | ST7793 |
| Viewing Angle | 6 o'clock |
| LED No. | 1*6 LEDs |
| Display Mode | 262K color TFT / Transmissive / Normally white |
| Brightness | 400nits |
| Life-time | 50000h |
| PIN | 45 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Can custom resistive touch and capacitive touch |
The 3.2inch 240x320/QVGA TFT LCD screen module can be used for medical, industrial, hand-held, e-bike, POS machines, and others.
