Kingtech PV07078Y0150C-CT is 7.0inch TFT colorful LCD module. Its viewing angle is all, IPS panel technology. Its backlight is 9*3LED, brightness can reach up to 1000nits. It is sunlight readable. The resolution is 1024*600dots. It supports RGB interface with standard 50pins It is designed for outdoor application, such as motorcycle, industrial PLC, Advertising display, farm equipment etc.
Sunlight Readable / 1000nits/ Outdoor/High brightness
7.0inch IPS LCD
RGB interface 50pins
Capacitive Touch optional and resistive touch for optional
Get a Quote
Documentation
| Item | High brightness 7inch IPS 1024*600 LCD with Capacitive touch |
| Model No. | PV07078Y0150C-CT |
| Resolution | 1024*600 |

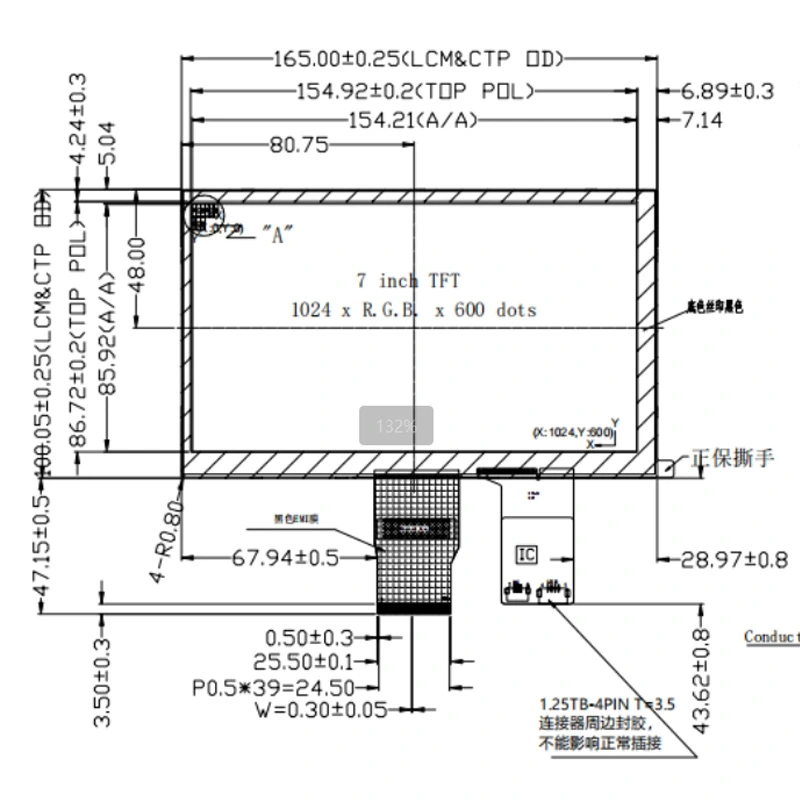

| Outline Dimension (mm) | 165.0*100.5*7.63 |
| Active Area (mm) | 154.21*85.92 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | RGB |
| Backlight | 9*3LED |
| Pin nums | 50pins |
| Driving IC | |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Capacitive touch |
| Application | Outdoor application, handheld device, E-bike, industrial, Medical |
It is applicable for Medical, hand-held device, industrial, outdoor, advertising, ATM, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, automotive.
