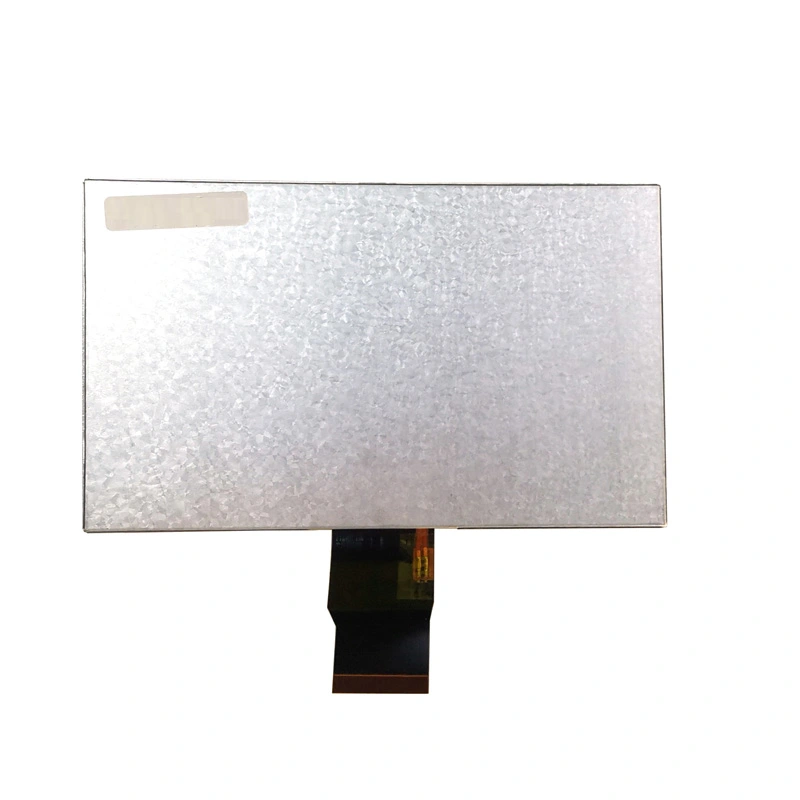

Kingtech 7inch 1024x600 30pin MIPI interface 220nits IPS display supply is very stable. This 7inch WSVGA display supports MIPI interface. The 7inch module screen's lifetime is 20000h. For the touch part, Kingtech can custom the 7inch MIPI interface display touch panel according to the customer's requirements.
1024x600 / WSVGA
IPS / Free / Wide / All / Full viewing angle
30pin
MIPI interface
Stable supply
Capacitive touch screen can be customized
| Item | 7inch 1024x600 IPS MIPI interface display |
| Model No | PV07031LZR30G |
| Resolution | 1024x600 |
| Outline Dimension | 164.90*100.10*2.6 |
| Active Area(mm) | 154.21*85.92 |
| Interface | MIPI |
| Brightness | 220nits |
| Viewing Angle | All |
| LED life | 20000h |
| Display Mode | Normally Black |
| PIN | 30 |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Touchscreen | Capacitive touchscreen |
The 7inch 1024x600 IPS 30PIN MIPI interface LCD module can be used for agricultural equipment, medical device, game console, and smart home, etc.
