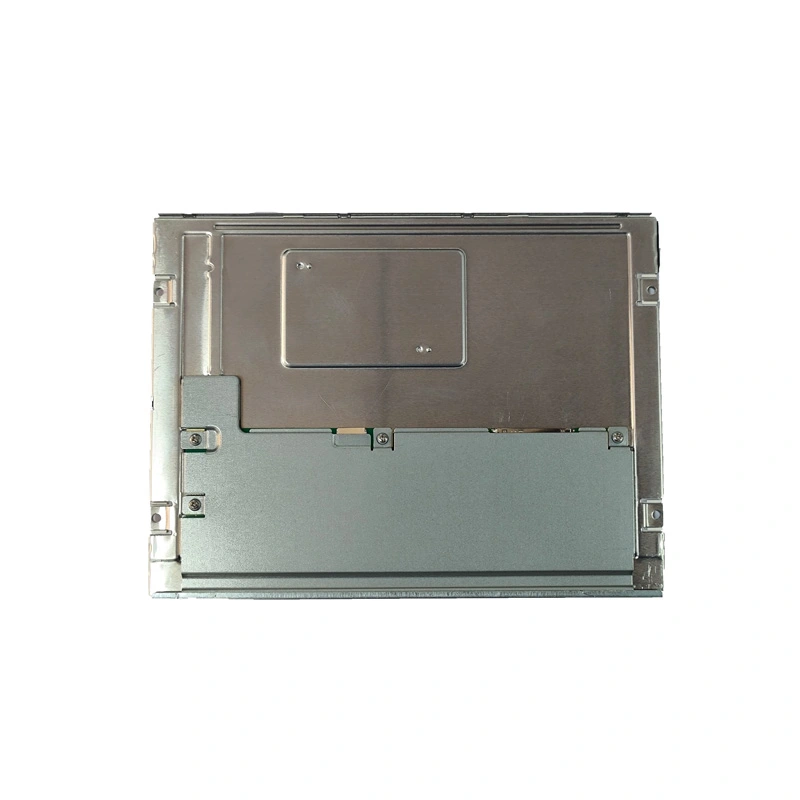

Kingtech 8.4 inch 1024*768 TFT module display supply very stable. This 8.4 inch supports 8bits LVDSinterface. In addition, the 8.4 inch XGA TFT display module brightness is 1000nits for sunlight readable, and this 8.4inch screen is all viewing type and -30~80C wide operating temperature. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
XGA resolution
1000nits brightness/Sunlight readable/High brightness/Outdoor
-30~80 Wide working temperature
Can custom resistive touch and capacitive touch
Get a Quote

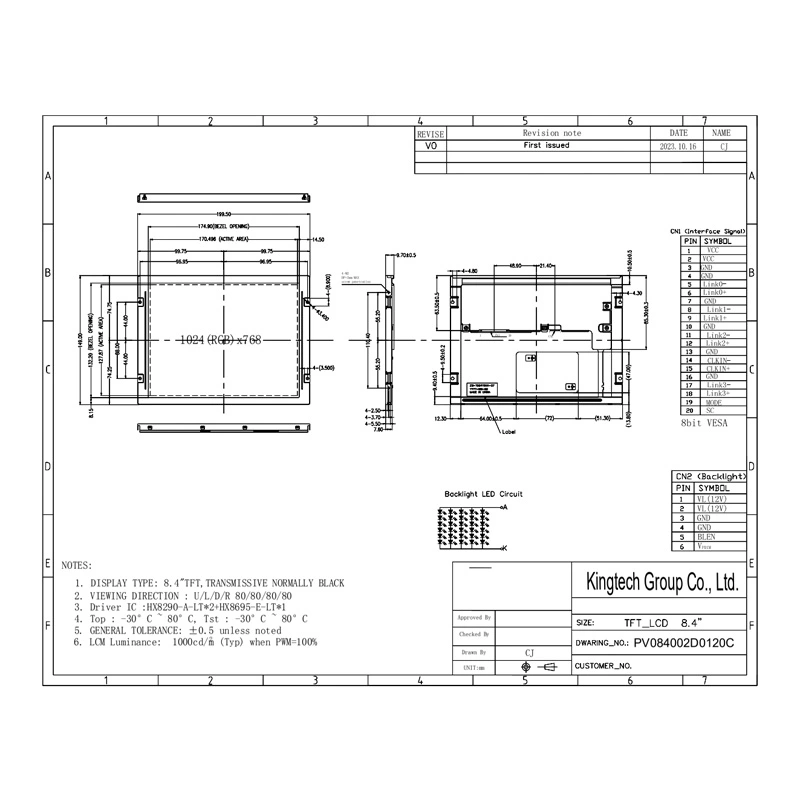

Documentation
| Item | 8.4inch IPS 1024*768 TFT display |
| Model No. | PV084002D0120C |
| Resolution | 1024*768 |
| Outline Dimension (mm) | 199.50*149.00*9.7 |
| Active Area (mm) | 170.49*127.87 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | 8bits LVDS |
| Backlight | 6*5LED |
| Driving IC | HX8290-A-LT*2+HX8695-E-LT*1 |
| PIN No. | 20 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial or outdoor, advertisement and thermostat, automotive |
The 8.4 inch 1024*768 TFT display module can be used for Medical, hand-held device, industrial or outdoor, advertisement and thermostat, automotive an so on.
