Kingtech 5.0'' inch 480*854 TFT module display supply very stable. This 5inch ST7701S LCD screen supports 3SPI+RGB24 BIT interface. In addition, the 5inch TFT display module brightness is 380nits, and this 5inch screen is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
Can custom resistive touch and capacitive touch
Display Colors of TFT LCD: 16.7M colors
IPS/All/Free/Wide viewing angle
Get a Quote
Documentation

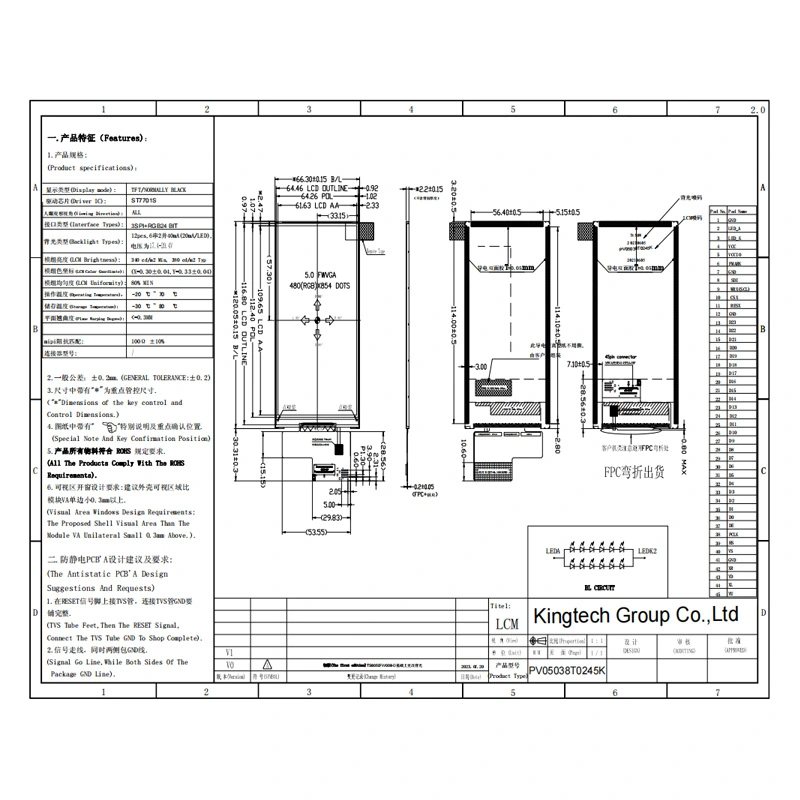

| PV05038T0245K | 5.0 inch IPS 480*854 display |
| Model No. | PV05038T0245K |
| Resolution | 480*854 |

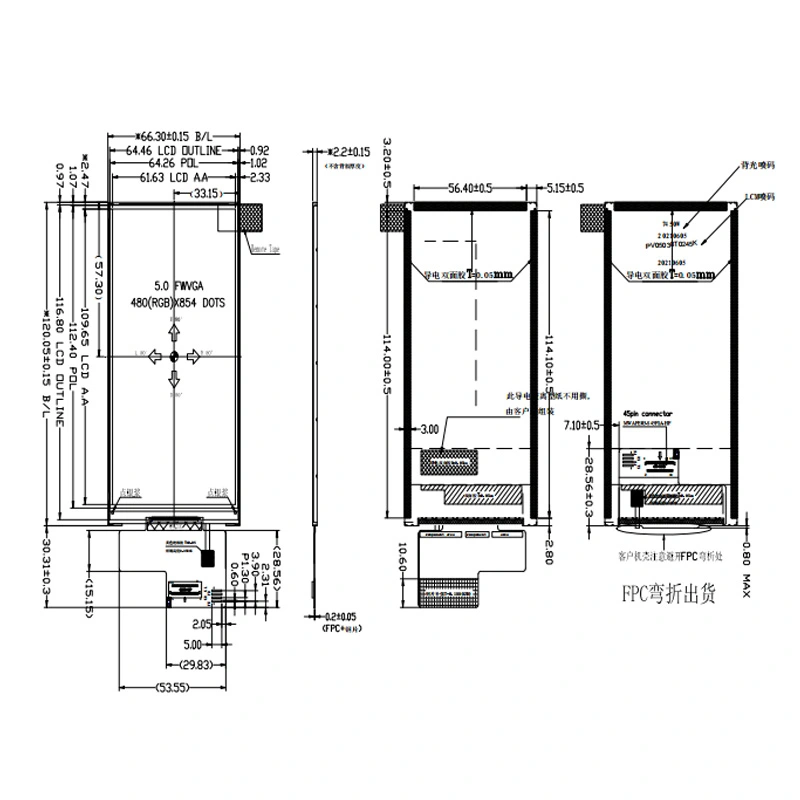

| Outline Dimension (mm) | 66.30*120.05*2.2 |
| Active Area (mm) | 61.56*109.53 |
| Viewing Angle | All |
| Brightness | 380nits |
| Interface | 3SPI+RGB24 BIT |
| Backlight | 6*2LED |
| Driving IC | ST7701S |
| PIN No. | 45 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
The 5.0'' inch 480*854 TFT display module can be used for Medical, hand-held device, industrial, Smart-home, outdoor, Elevator, Access Control device, advertising, ATM, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.
