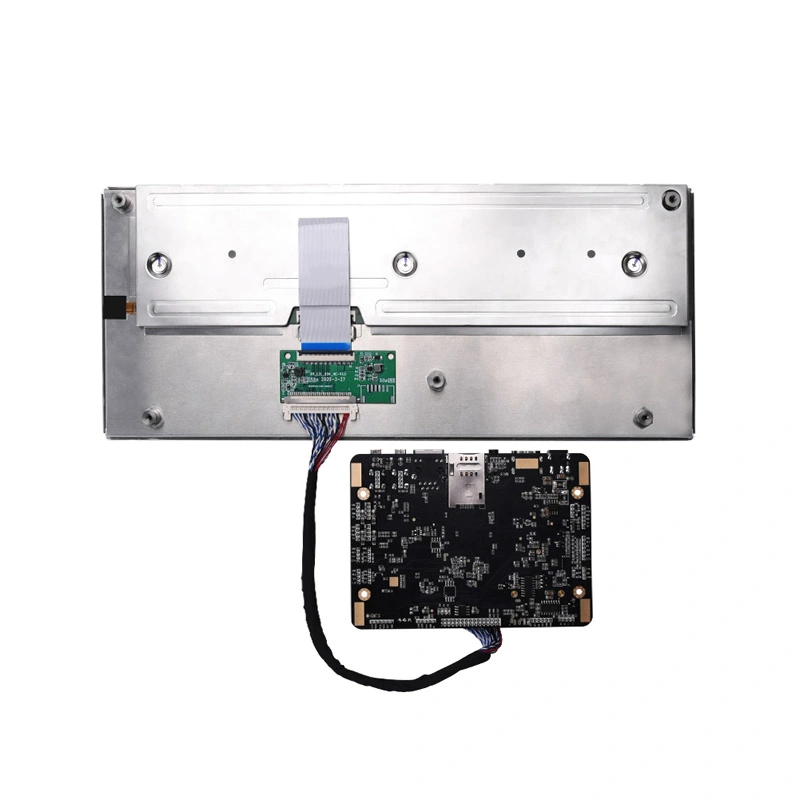

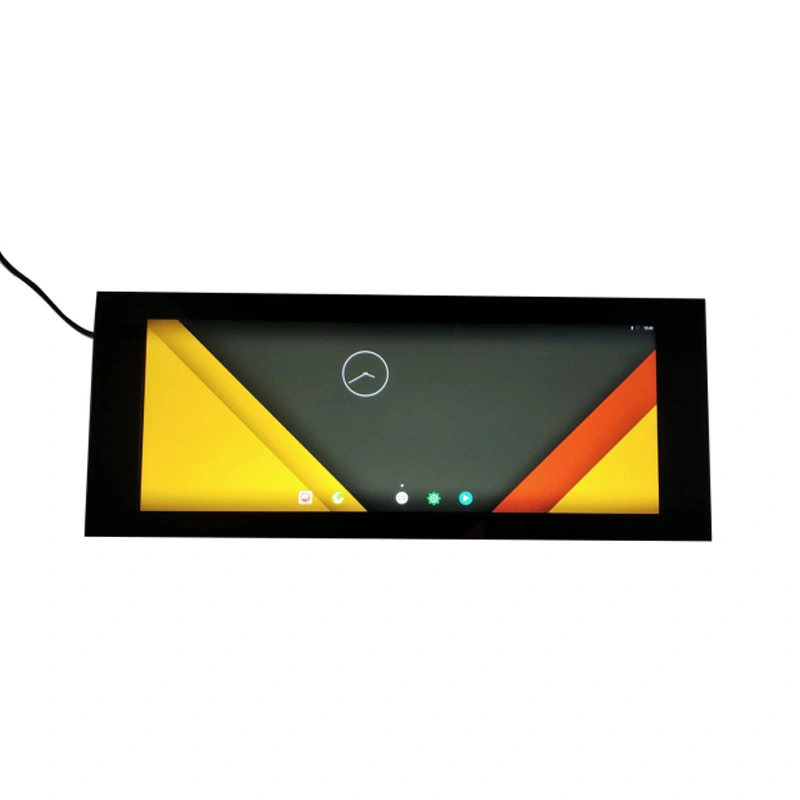

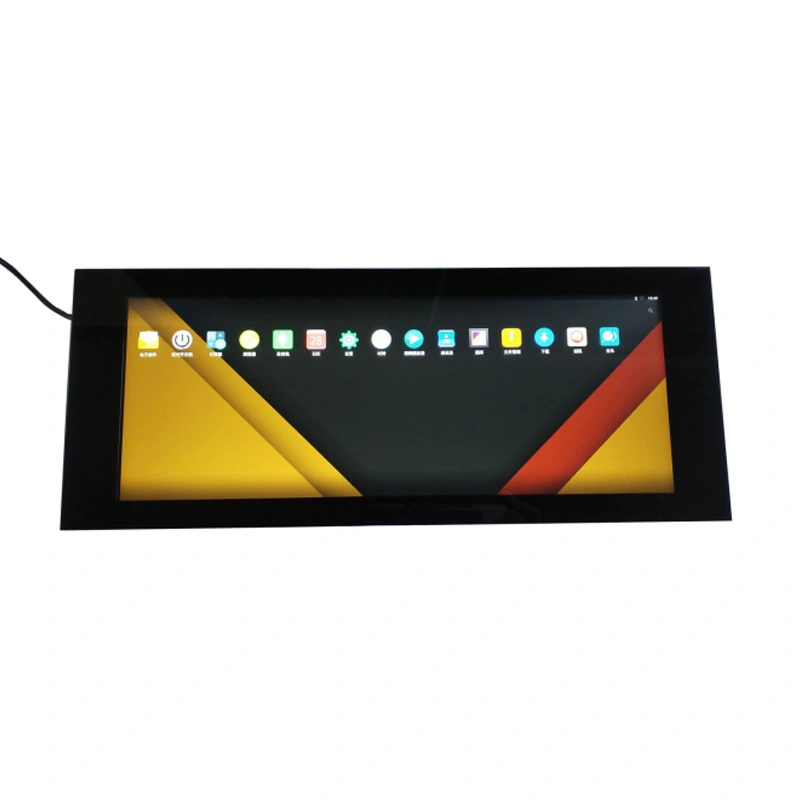

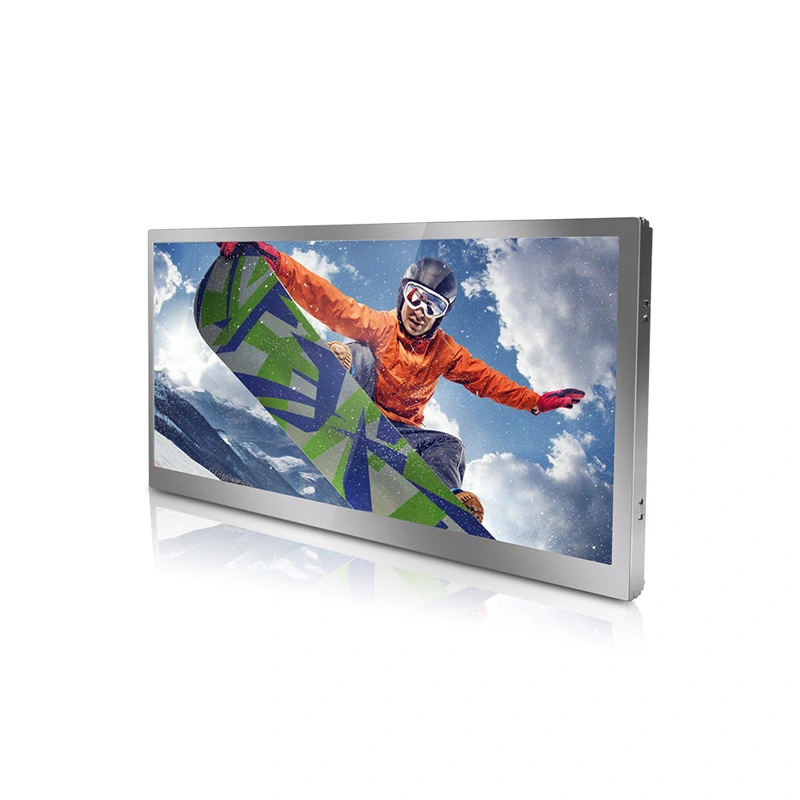

12.3 Inch Bar Type 1920x720 LCD Display With The Main Board

Kingtech 12.3inch 1920x720 LCD screen has an existing Android & Linux Board. The 12.3inch is IPS /full/all/free/wide TFT LCD module.

This 12.3inch is also wide operating temperature, it's -30~+85C. The 12.3inch screen has capacitive touch, but we can custom LCD screens according to the customer requirements. The 12.3inch TFT LCD display is 850nits and can saw under the sun.


  • 1920x720 resolution /High definition resolution

  • IPS/Free/All/Wide/Full type

  • High brightness/Sunlight readable/850nits

  • Landscape / Horizontal display

  • Support Bluetooth

  • Support 2G/3G/4G

  • USB x 2 / HDMI 1.4 output / AUDIO OUT

  • Can be used on Raspberry Pi

  • Operating temperature -30 to +85℃

  • Support capacitive touchscreen

  • Support Android & Linux LCD module

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

Specification of 12.3 Inch Bar Type 1920x720 LCD Display With The Main Board


Kingtech Diaplay will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requirements of specifications will be welcomed.


Item12.3inch 1920x720 with touch complete solution
Model No.PV135-PV012304LXD50F
Resolution1920×720
Display Color16.7M
Outline Dimension348mm×140mm×47.5mm
Active Area(mm)292 mm×109.5 mm
Viewing AngleAll
Display ModeNormally Black
Operating Temperature-30 to +85℃
Storage Temperature-30 to +85℃
Brightness850nits
Backlight Life-Time>30000h
Touch ScreenCapacitive touch panel
Touch Times1 million times at least
Operating SystemAndroid/Linux
CPUAllwinner A40i Quad Core A7@1.5GHz
GPUMali 400 MP2
DDR/RAM1GB
EMMC/FLASH8GB
BluetoothSupport
2G/3G/4GExtensible 3G data/4G data function, support WCDMA, EVDO, CDMA, GSM, 2G/3G full frequency band support 850/900/1800/1900MHz/2100MHz
(Do not connect other peripherals to USB1 when using 4G module)
InterfaceUSB x 2
HDMI 1.4 output
AUDIO OUT
TF InterfaceSupport 128G max
Wired networkRJ45
WIFI InterfaceIEEE 802.11 b/g/n WLAN



Application of 12.3 Inch Bar Type 1920x720 LCD Display With The Main Board

The 12.3inch 1920x720 IPS LCD with Android & Linux Board TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, monitoring, oscilloscope, logistics device, automotive equipment, and E-Bike.
