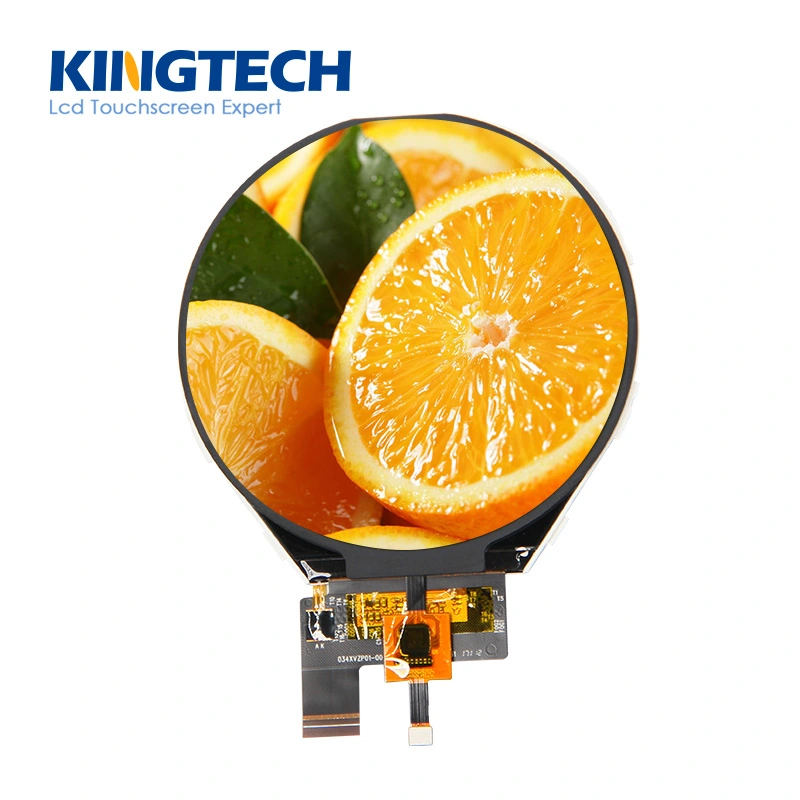

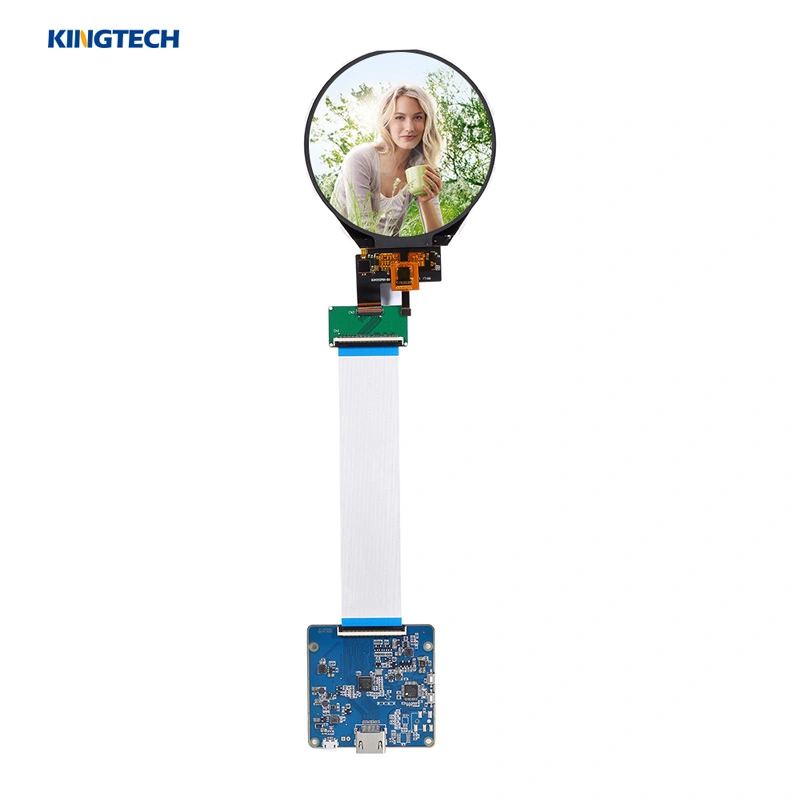

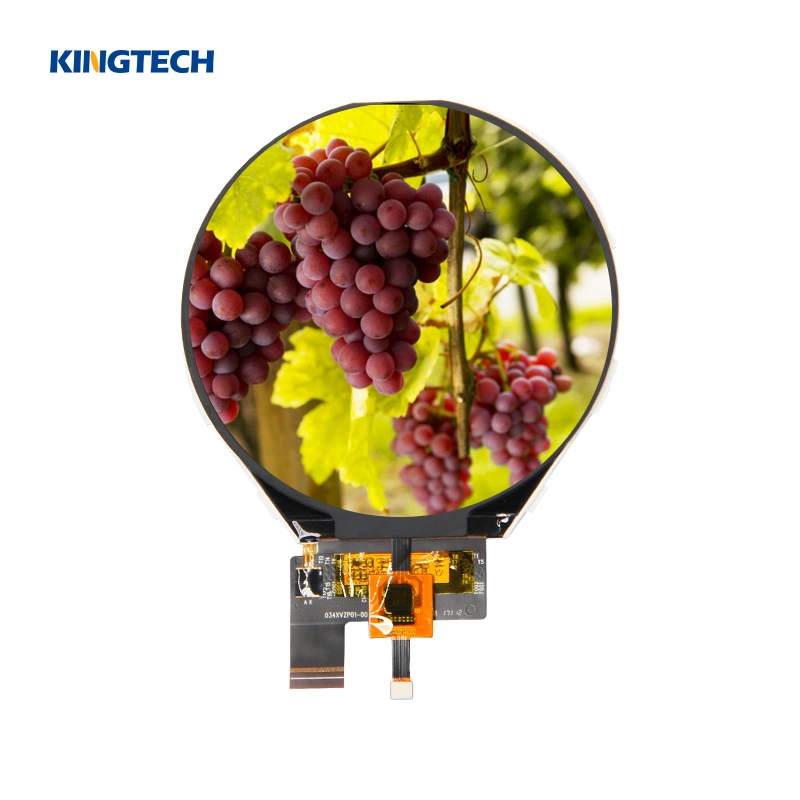

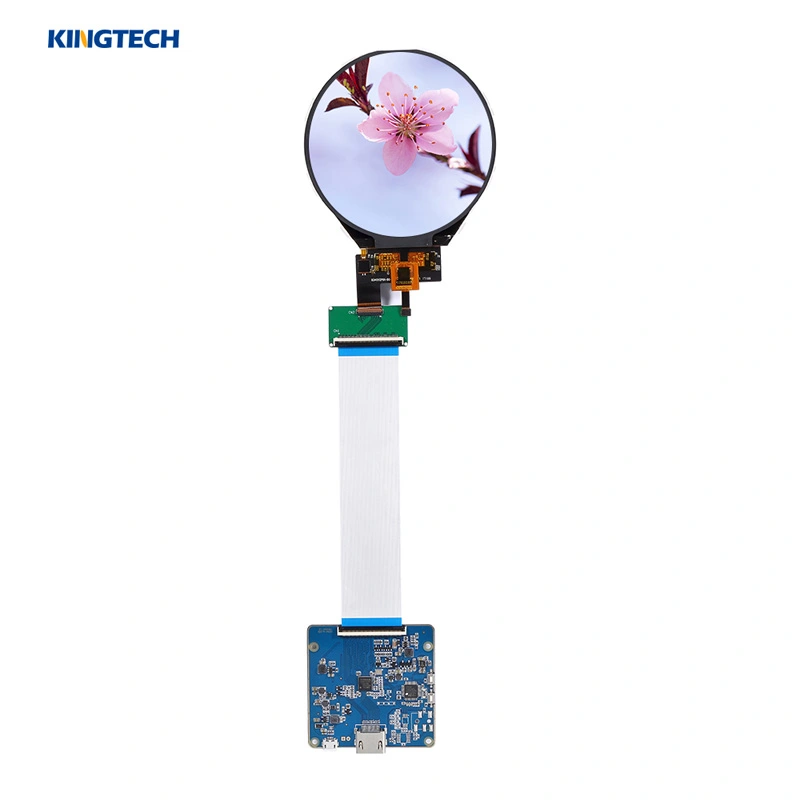

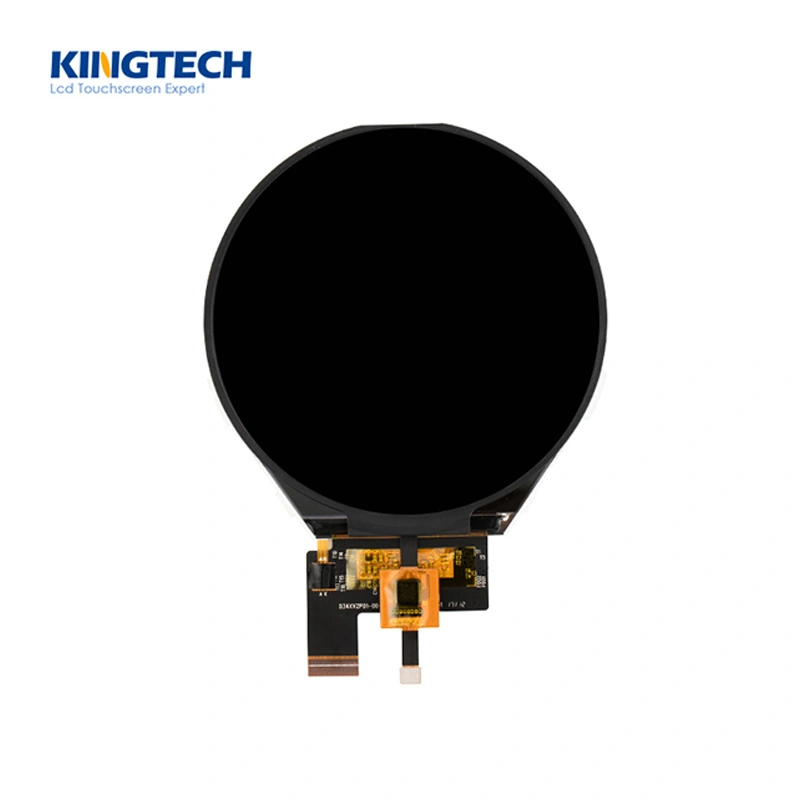

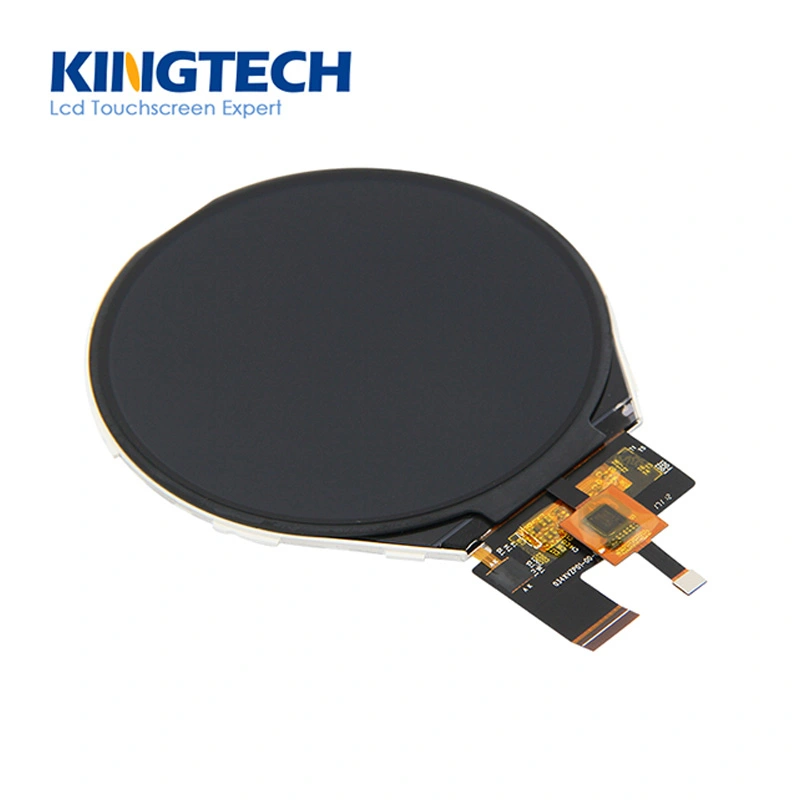

Kingtech 3.4inch IPS/ free/all/wide viewing angle TFT LCD display is our most leading product. The 3.4inch resolution is very high, it's 800x800. It has a capacitive touch and has an existing HDMI Board. The HDMI board can be connected to a raspberry pi.
The 3.4 inch IPS display also has a Linux/Android main board, the board can test the 3.4inch touch function.
We, as a LCD panel manufacturers, is able to offer qualified prodcts and any requirements for custom LCD panel will be welcomed.
All/Free/Wide viewing angle
800x800 resolution
Round / Circle / Circular
IPS type
High brightness/sunlight readable
Support capacitive touch
HDMI Board, Linux & Android Board
Get a Quote
Documentation
| Item | 3.4 inch round TFT module display |
| Model No | PV03400AR39A |
| Resolution | 800*800 |
| Outline Dimension | 99.0(W)*96.6(H)*3.98(T) |
| Active Area(mm) | 87.6(W)*87.6(H) |
| Interface | MIPI 3 lane |
| Touch panel | Capacitive touch panel |
| Viewing Angle | All |
| Driving IC | ILI9881C |
| Display Mode | Transmission / Normally Black / SFT |
| FPC type | ZIF |
| PIN | 39 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Brightness | 350nits |
| Board | HDMI board |
The 3.4 inches 800x800 round display has a wide application field. It can be used for the thermostat, automotive device, handheld device, industrial control, and smart home equipment.
