Kingtech 4.3" inch 480*272 TFT module display supply very stable. This 4.3" inch supports RGB interface. In addition, the 4.3" inch TFT display module brightness is 800nits, and this 4.3" inch screen is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
WVGA/480*272 resolution
800nits brightness/Sunlight readable/High brightness/Outdoor
-30~80/ Wide working temperature
Can custom resistive touch and capacitive touch
IPS/Free/All/Wide viewing angle
Get a Quote
Documentation

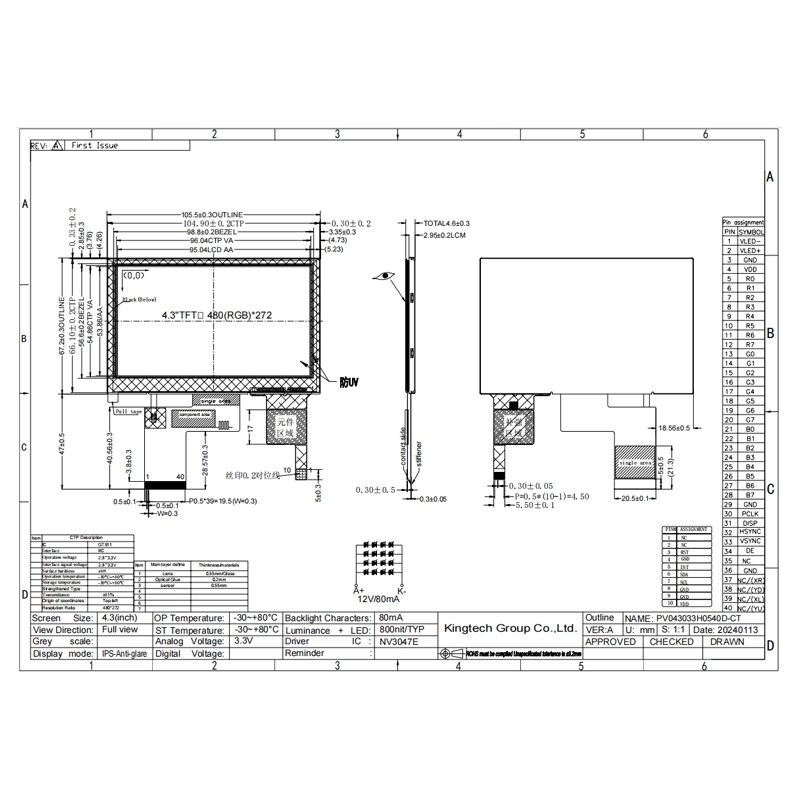

| Item | 4.3 inch IPS 480*272 TFT display |
| Model No. | PV043033H0540D-CT |
| Resolution | 480*272 |
| Outline Dimension (mm) | 105.5*67.2*4.6 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | All |
| Brightness | 800nits |
| Interface | RGB |
| Backlight | 4*4LED |
| Driving IC | NV3047E |
| PIN No. | 40 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
The 4.3" inch 480*272 TFT display module can be used for Medical, hand-held device, industrial or Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.
