Kingtech PV07076T0230A is 7.0inch TFT colorful LCD module. Its viewing angle is all, IPS panel technology. The resolution is 1020x600. Its driver IC is EK79007, EK73217B, supporting MIPI interface. Its backlight is 3*8LEDs, brightness can reach up to 380nits Typical. It is designed for industrial, medical, Smart Home, Access Control, Pos, ATM etc.
7.0inch IPS LCD
MIPI
Capacitive Touch or resistive touch optional
Get a Quote
Documentation
| Item | 7.0inch IPS 1024*600 LCD module |
| Model No. | PV07076T0230A |
| Resolution | 1024*600 |

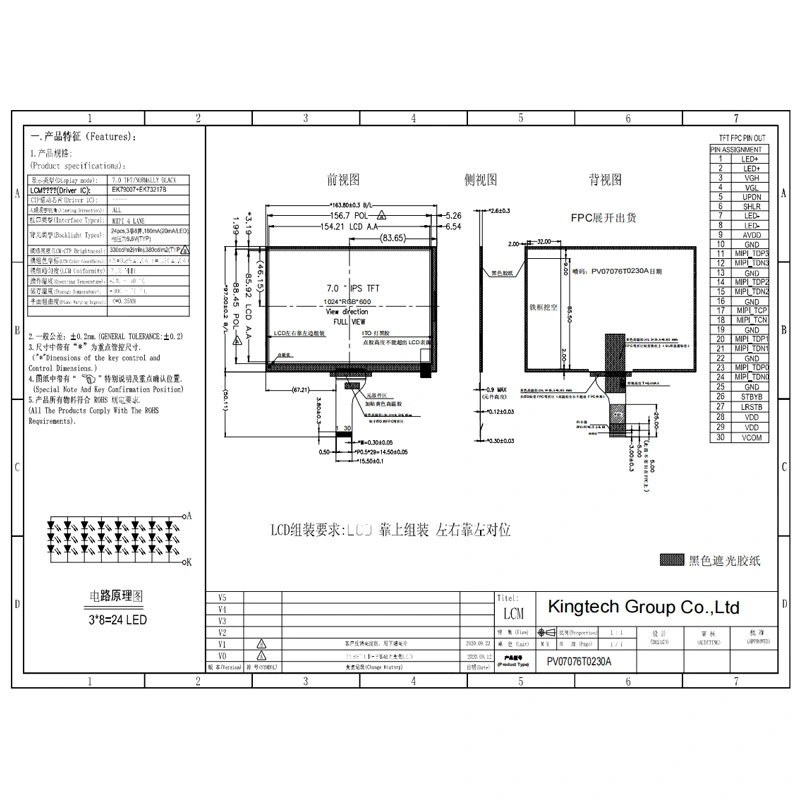

| Outline Dimension (mm) | 163.8*97*2.6 |
| Active Area (mm) | 154.21*85.92 |
| Viewing Angle | All |
| Brightness | 380nits |
| Interface | MIPI |
| Backlight | 3*8LEDs |
| Driving IC | EK79007+EK73217B |
| PIN No. | 30 |
| Operating Temperature | -20～50C |
| Storage Temperature | -20~70C |
| Touch screen | Optional |
| Application | Medical, hand-held device, industrial, outdoor, advertising, ATM, E-bike. |
It is applicable for Medical, hand-held device, industrial, outdoor, advertising, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment.
