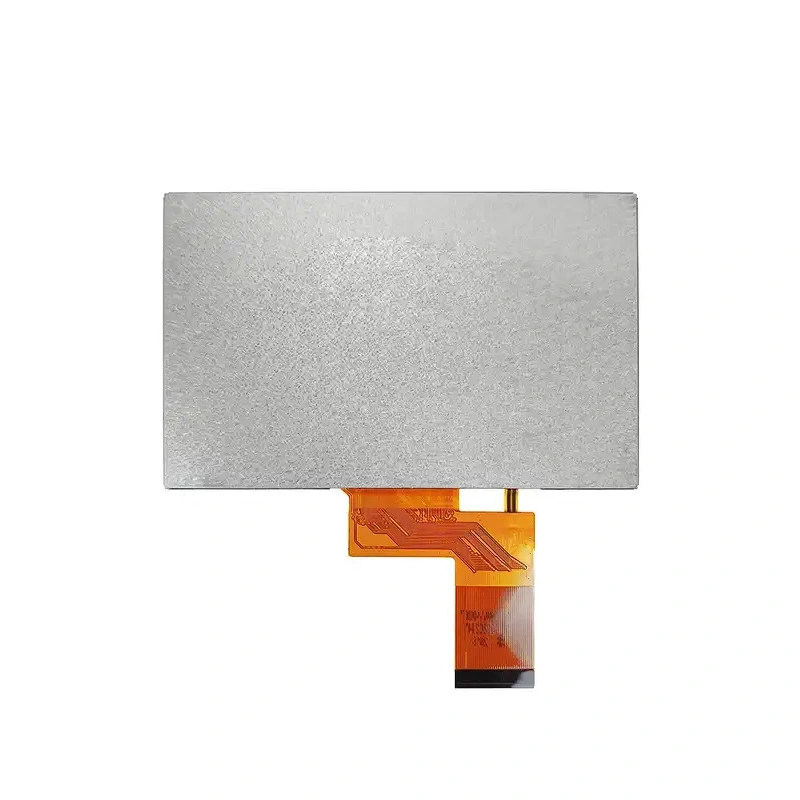

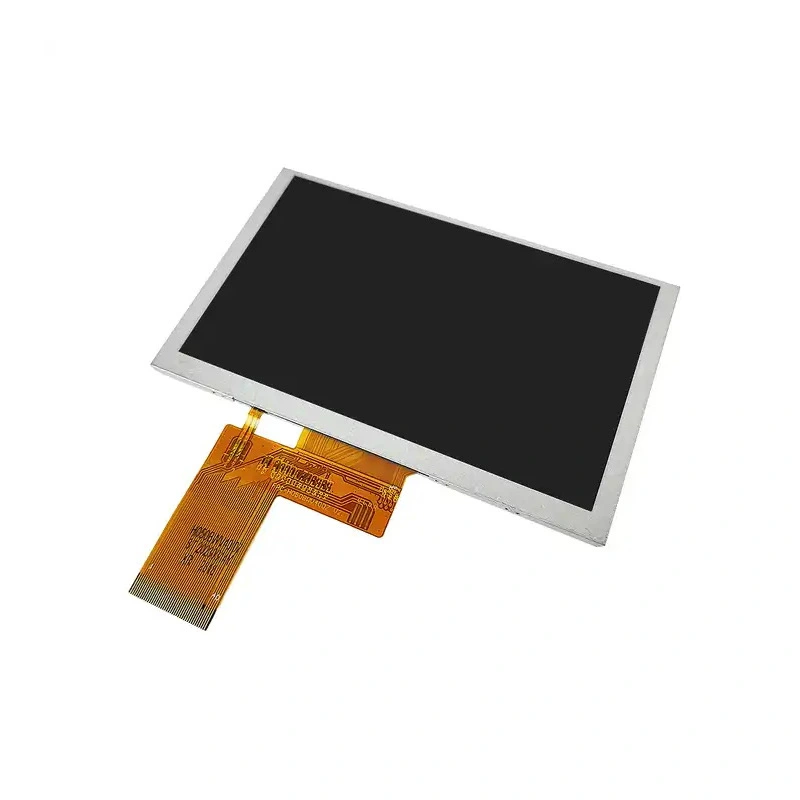

Kingtech 7.0 inch 800*480 TFT module display supply very stable. This 7.0 inch supports RGBinterface. In addition, the 7.0 inch TFT display module brightness is 330nits, and this 7.0 inch screen is 12 O'clock viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
WVGA resolution
Can custom resistive touch and capacitive touch
Get a Quote
Documentation
| Item | 7.0inch TN 800*480 TFT display |
| Model No. | PV07073D0140A-R |
| Resolution | 800*480 |
| Outline Dimension (mm) | 164.90*100.00*4.95 |
| Active Area (mm) | 154.08*85.92 |
| Viewing Angle | 12 O'clock |
| Brightness | 330nits |
| Interface | RGB |
| Backlight | 7*3LED |
| Driving IC | HX8264E &HX8664B |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
The 7.0 inch 800*480 TFT display module can be used for Medical, hand-held device, industrial or Thermostat, video door and others.
