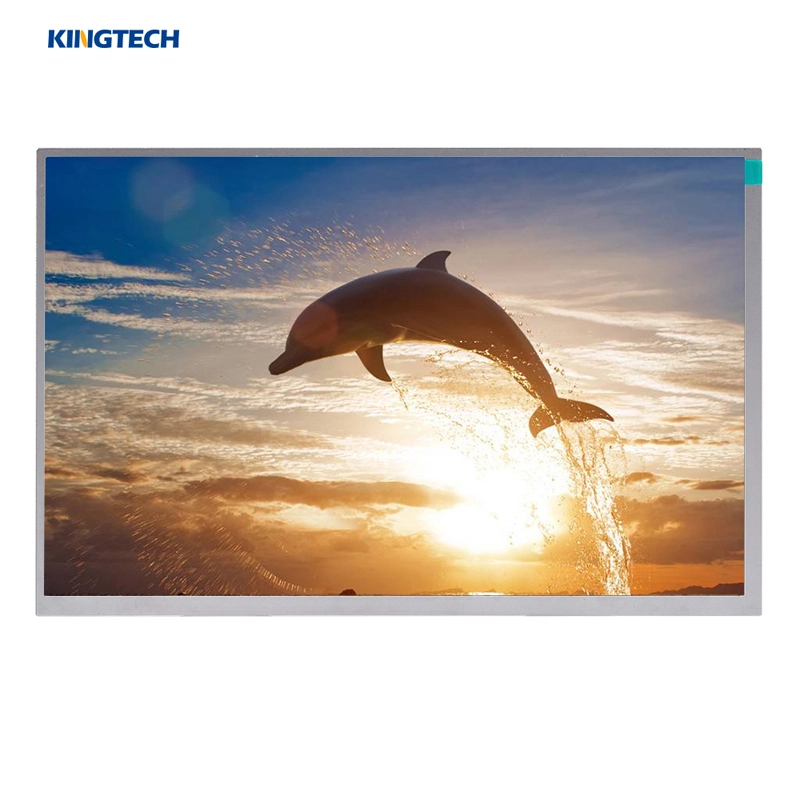

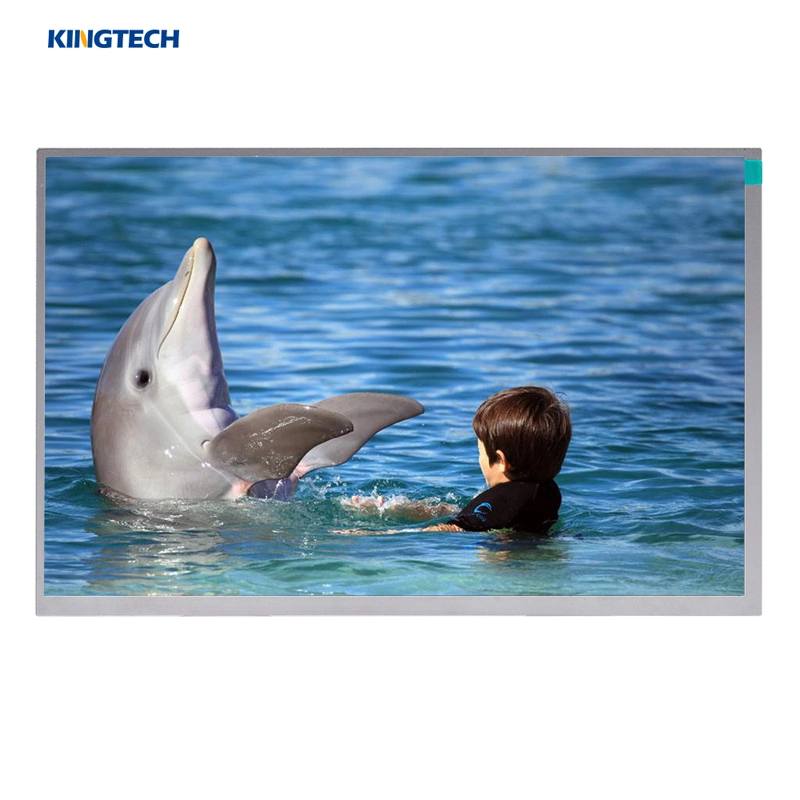

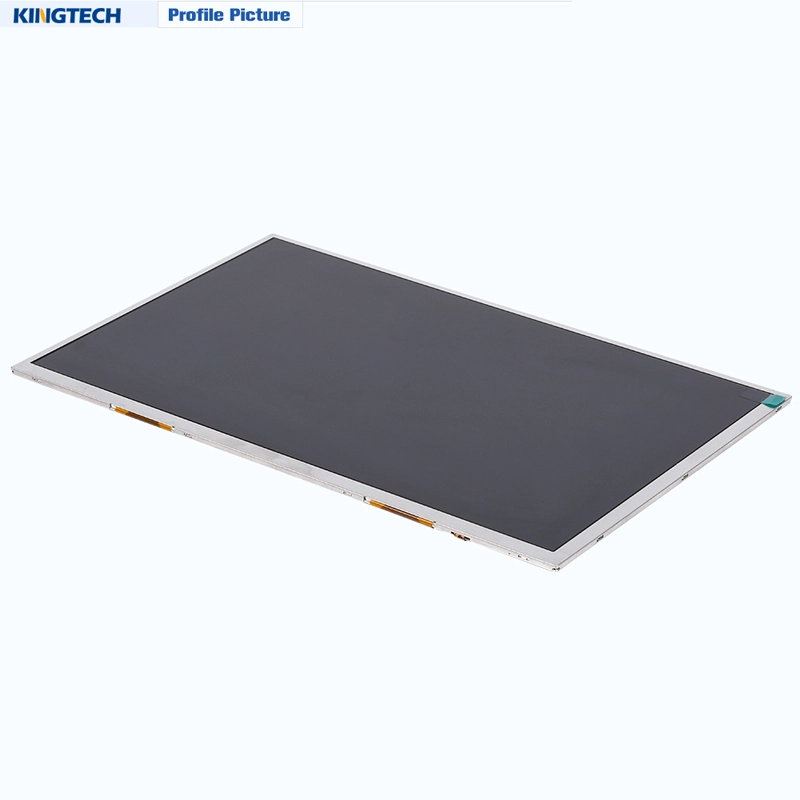

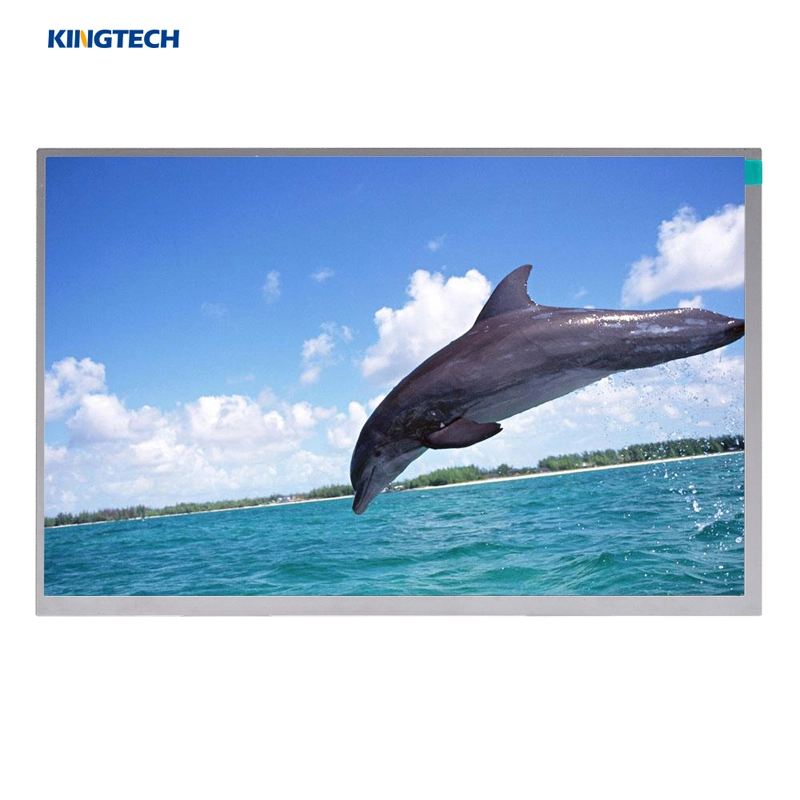

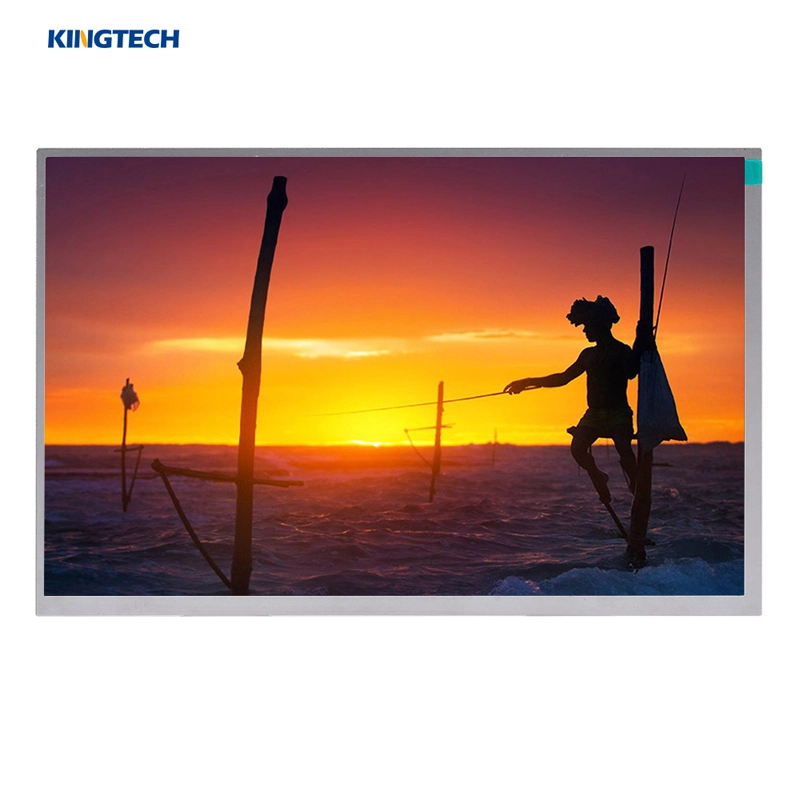

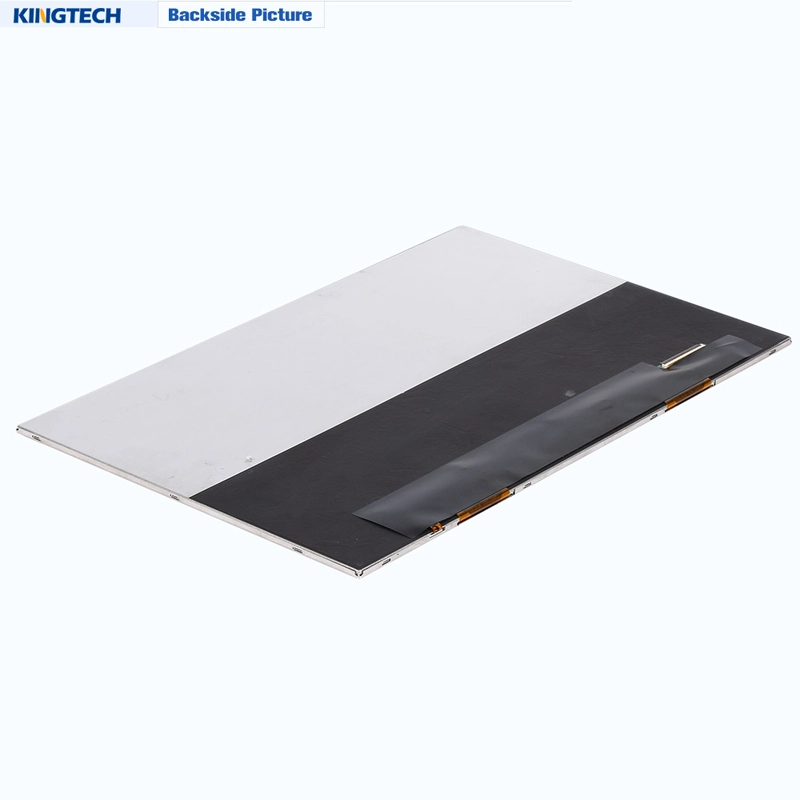

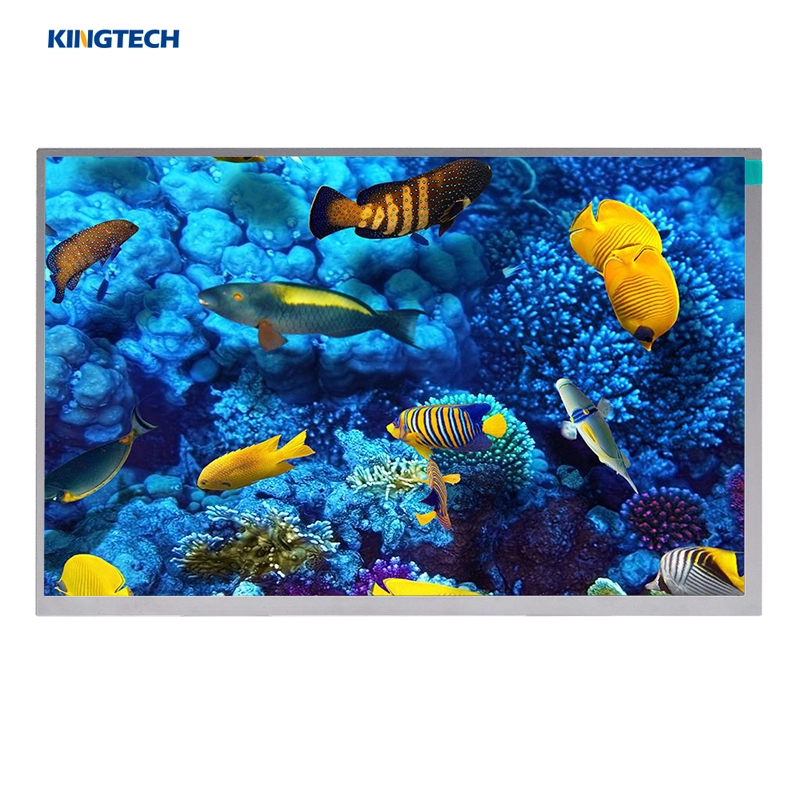

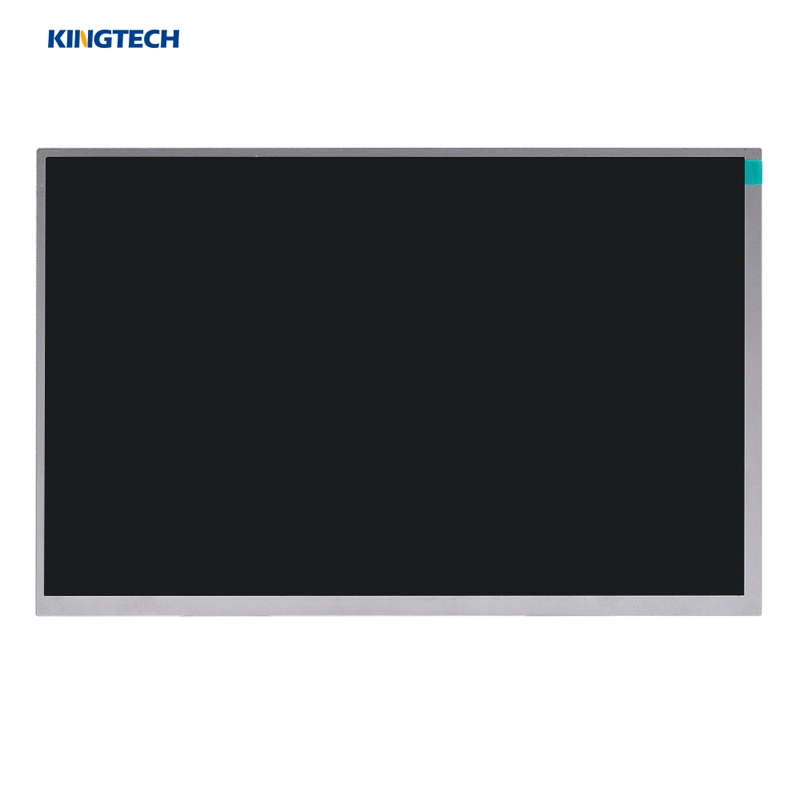

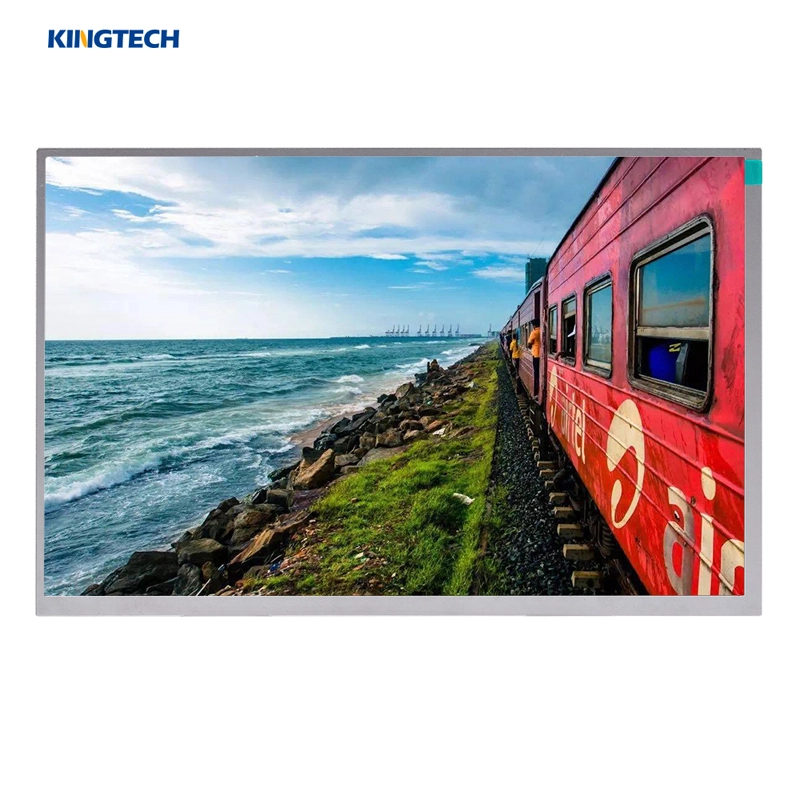

Kingtech 7inch 1280x800 landscape IPS All/free/ wide viewing angle TFT LCD display is one of our main product. The 7inch RGB 24bit interface TFT LCD module does not have capacitive touch, but we can custom it according to the customer requirements. The 7inch LCD screen is 400nits and driver IC is ST5821C and ST5084C.
We, as an expert of LCD display manufacturing, have achieved great progresses in LCD production. We promoise to provide the customers with qualified standard LCD dispaly and satisfying one-stop services. Any requests will be welcomed.
1280x800 resolution /High definition resolution
All / Free / Wide viewing angle
RGB interface
Landscape / Horizontal display
| Item | 7inch 1280x800 TFT Display |
| Model No | PV07012AR40M |
| Resolution | 1280x800 |
| Outline Dimension | 161.0(W)×107.0(H)×3.35(T) |
| Active Area(mm) | 115.20(W)x86.40(H) |
| Interface | RGB 24 bits |
| Viewing Angle | All |
| Driving IC | 3*ST5821C and 1*ST5084C |
| Pin | 40 |
| Pixel Pitch (mm) | 0.117(H)x0.117 (V) |
| Display mode | Transmissive, Normally Black |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Lifetime | 10000h |
| Brightness | 400nits |
The 7inch 1280x800 RGB interface IPS TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, logistics device, and E-Bike.
