Kingtech 5.0 inch 480x272 LCD display supply is very stably. This 5.0 inch TFT supports a 24bit RGB interface. In addition, the 5inch module used ST7257 driver IC and it's 6 O'clock viewing angle. This 5inch WQVGA LCD has the existing resistive touch and Kingtech can also custom the touch according to the customer's requirements.
TN / Normally white / 12 O’clock
480x272 /WQVGA resolution
ST7257 IC
Existing resistive touch panel
RGB interface
Get a Quote
Documentation

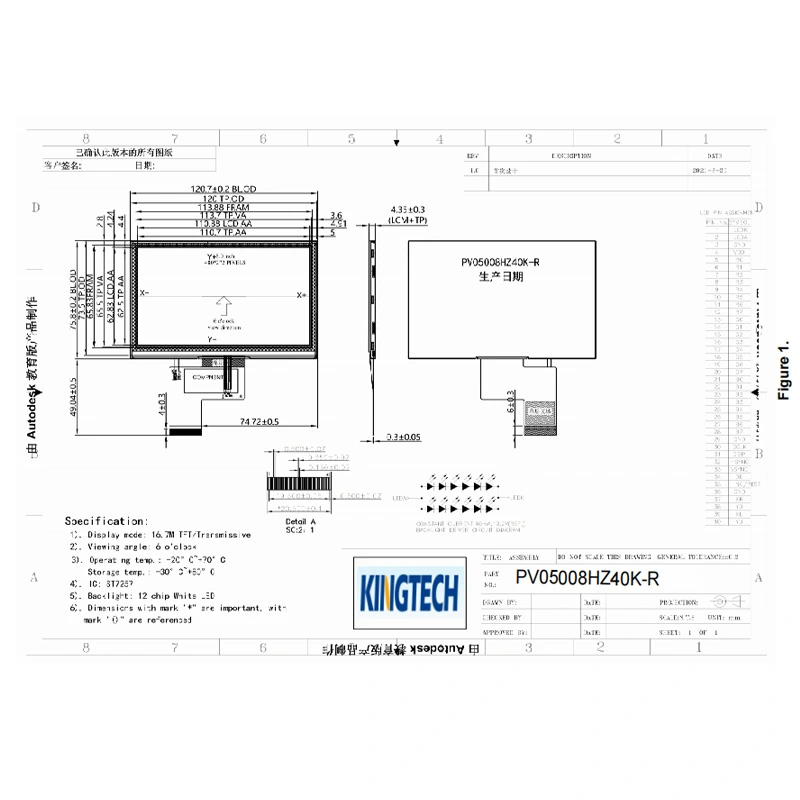

| Item | 5.0-inch 480X272 RGB interface LCD module |

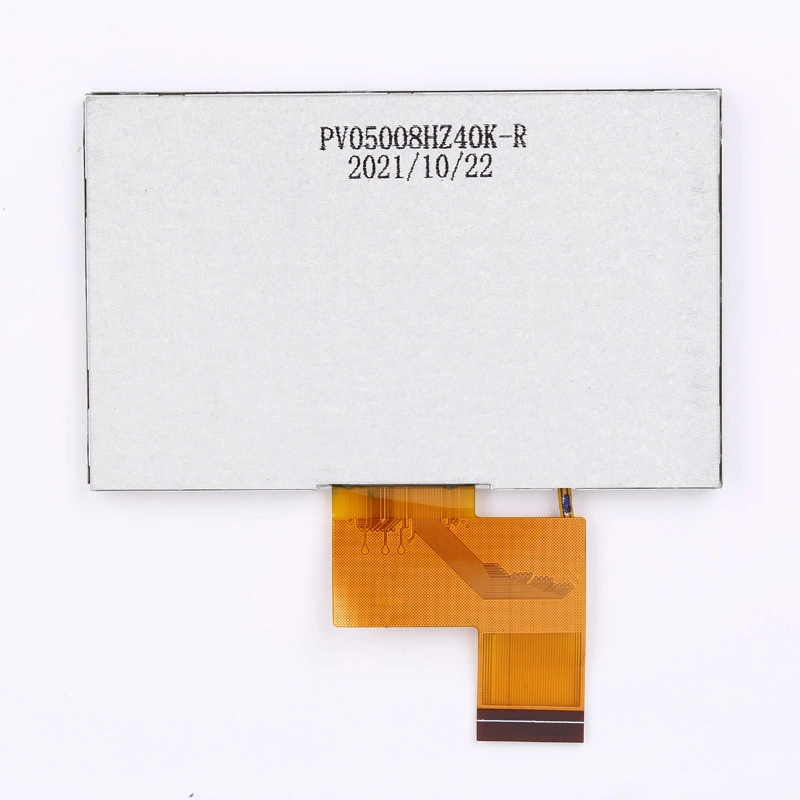

| Model No | PV05008HZ40K-R |
| Resolution | 480x272 |
| Outline Dimension | 120.7*75.8*4.35 |
| Active Area(mm) | 110.88*62.83 |
| Interface | RGB |
| Driver IC | ST7257 |
| Brightness | 350nits |
| Viewing Angle | 12 O'clock |
| LED life | 30000h |
| Display Mode | Transmissive |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch panel | Support resistive touch |
| Touchscreen | Can custom capacitive/resistive touchscreen |
The 5.0 inch 480x272 TN LCD module can be used for agricultural equipment, medical device, game console, and smart home, etc.
