Kingtech 4.0" inch 1280*720 TFT module display supply very stable. This 4.0" inch supports LVDS interface. In addition, the 4inch TFT display module brightness is 1000nits what can be outdoor device, and this 4inch LCD screen is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
1000nits brightness/Sunlight readable/High brightness/Outdoor
Can custom resistive touch and capacitive touch
All/Free/Wide/IPS viewing angle
Get a Quote
Documentation

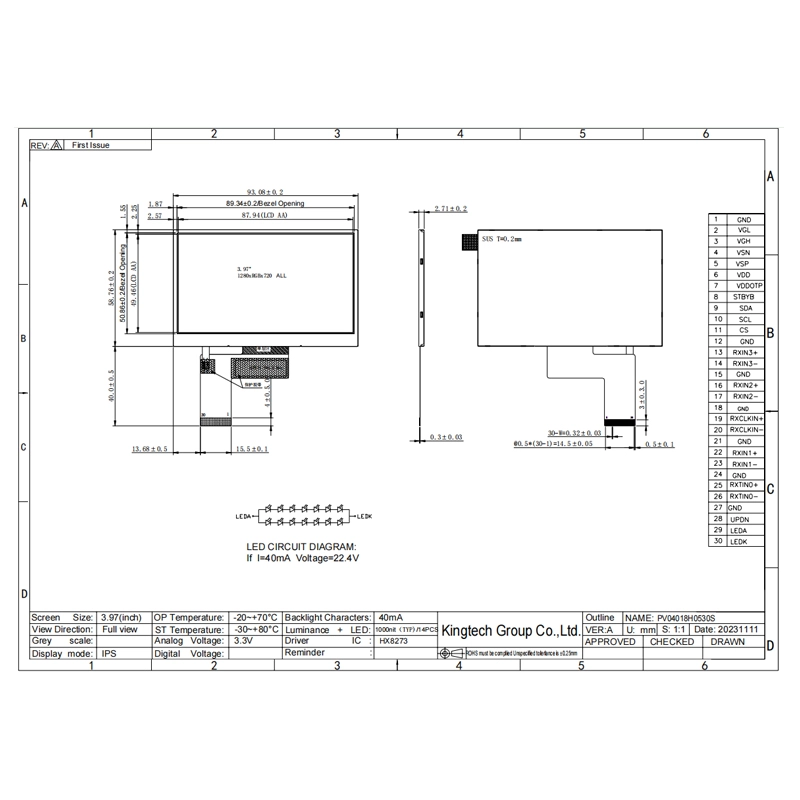

| Item | 3.97''IPS 1280*720 TFT display |
| Model No. | PV04018H0530S |
| Resolution | 1280*720 |
| Outline Dimension (mm) | 93.08*58.76*2.71 |
| Active Area (mm) | 87*94*49.46 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | LVDS |
| Backlight | 7*2LEDs |
| Driving IC | HX8273 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial, EV-chargers |
The 4.0" inch 1280*720 TFT display module can be used for Medical, hand-held device, industrial, Smart-home, outdoor, Elevator, Access Control device, advertising, ATM, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.
