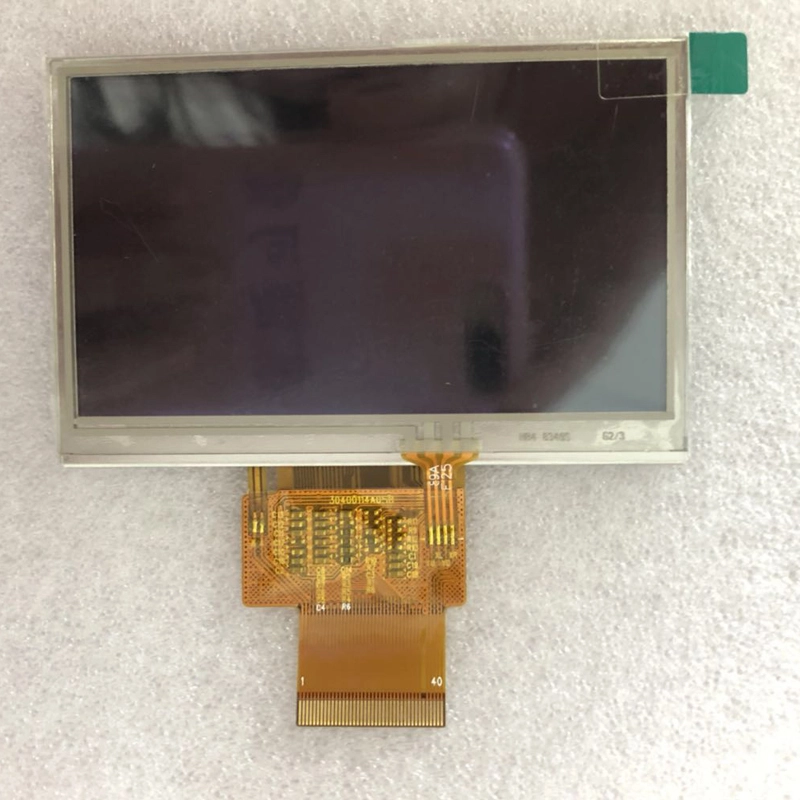

Kingtech 3.5inch 480x272 6 o'clock TFT LCD module is more special, that's because the resolution is 480x272. The 3.5inch OTA5180A 24bit RGB has resistive touch, but the touch also can be customized according to customer requirements. This 3.5inch 500nits display can be used for medical devices, handheld equipment, and others.
Kingtech LCD is able to custom LCD module according to your demands, and we promoise to provide the customers with satisfying one-stop services. Any requests will be welcomed.
480x272 / WQVGA resolution
Landscape / Horizontal
Support TFT resistive touchscreen
Get a Quote
Documentation
| Item | 3.5inch 480x272 TFT touch screen |
| Model No | PV03501TD40B-R |
| Resolution | 480x272 |
| Outline Dimension | 86.80(W)x56.50(H)x3.90(T) |
| Active Area(mm) | 77.79(W)x43.52(H) |
| Interface | 24bit RGB interface |
| Brightness | 250nits |
| Viewing Angle | 6 O'clock |
| Driving IC | OTA5180A |
| Display Mode | TFT / Transmissive / Normally White |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Touch screen | Resistive touch screen |
The 3.5inch 480x272 TN LCD module can be used for medical device, handheld equipment, industrial control, POS machine, smart home and black box.
