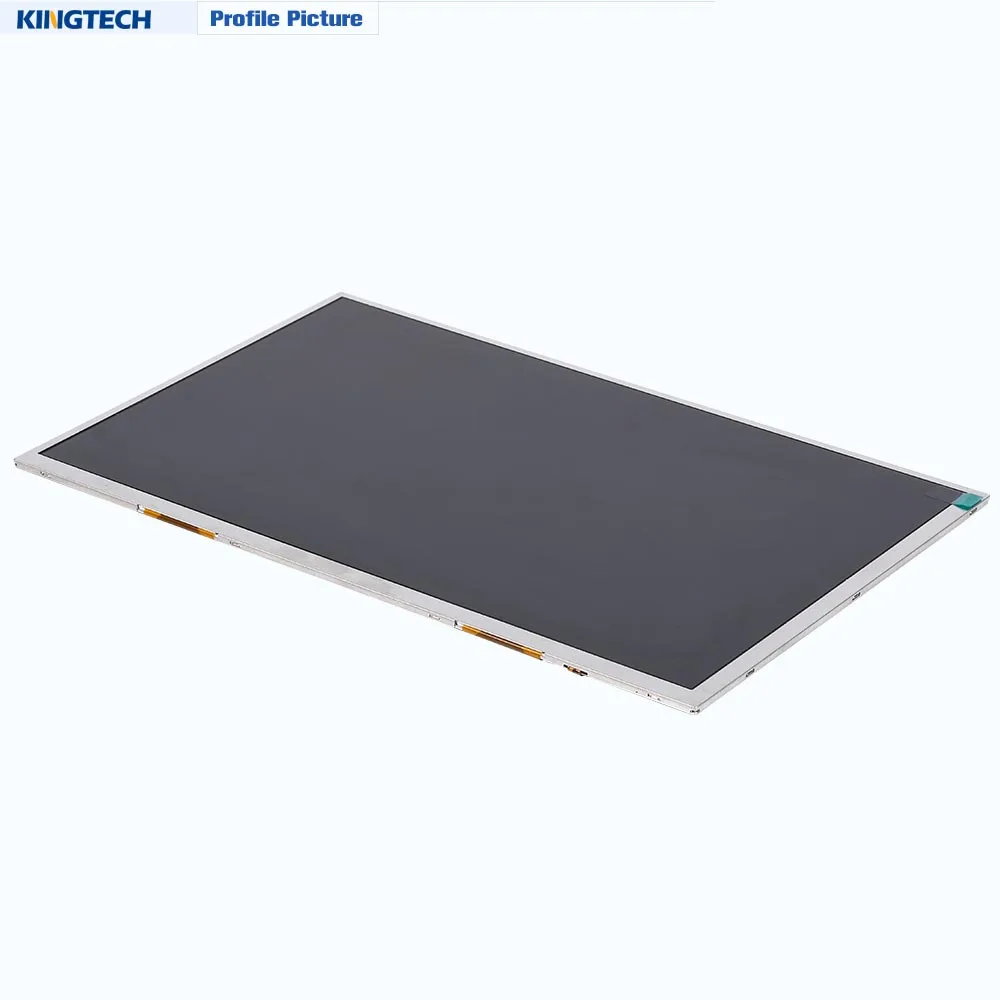

Kingtech 10.1 inch 1280*800 IPS LCD module supplys very stable. The 10.1inch display supports LVDS interface. The driver IC is EK79202 and the brightness is 350nits. The operating temperature of 10.1inch screen is -20℃~70℃. In addition, the 10.1 inch TFT module’s life-time is 30000h, and this 10.1 inch Innolux screen is All/Free/Wide viewing angle/IPS type. For the touch part, Kingtech can custom the touch according to the customer’s requirements and the customer also can use Kingtech’s standard capacitive touch panel.
All/Free/Wide/Full viewing angle/IPS
1280x800 / WXGA
Stable supply
Unit price cheaper
Can custom capacitive touch screen
Get a Quote

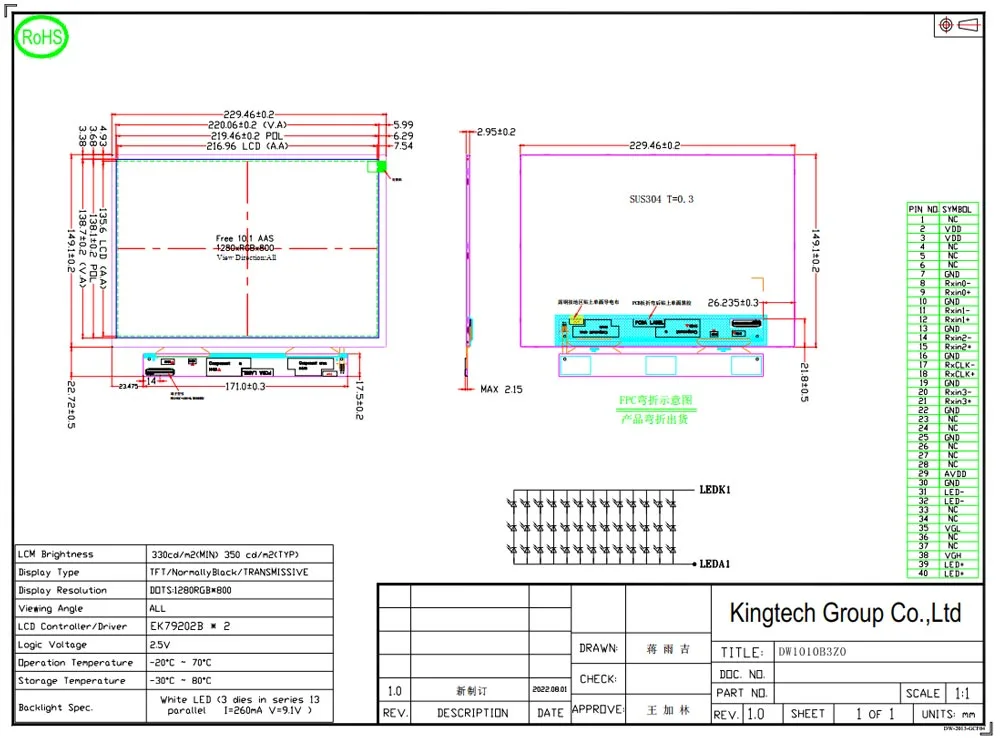

Documentation
| Item | 10.1inch 1280x800 IPS Innolux LCD display |
| Model No | DW1010B3Z0 |
| Resolution | 1280x800 / WXGA |
| Outline Dimension | 149.1(H)*229.46(W)*2.95(T) |
| Active Area(mm) | 135.6(H)*216.96(W) |
| LCD Controller/Driver | EK79202 * 2 |
| Interface | LVDS |
| Brightness | 350nits |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | TN / Transmissive / Normally Black |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Can custom capacitive touchscreen |
The 10.1inch 1280x800 IPS Innolux TFT LCD display can be used for indsustrial control, agricultural equipment, medical device, game console, outdoor and smart home etc.
